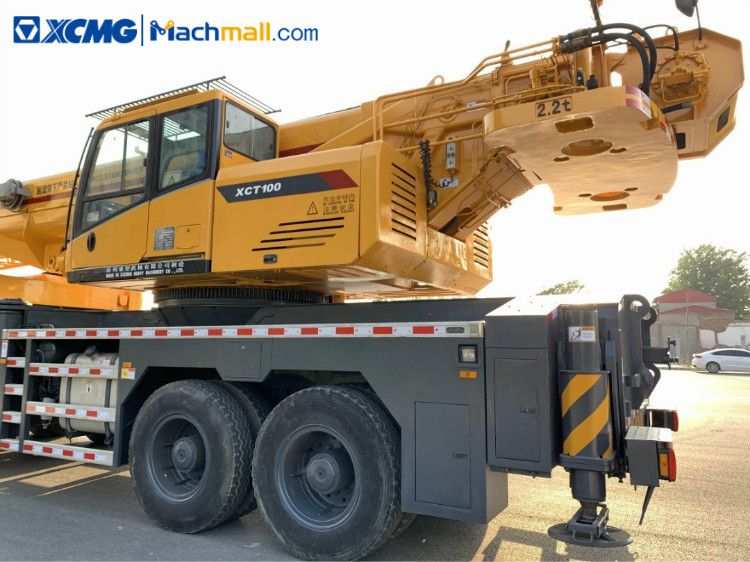

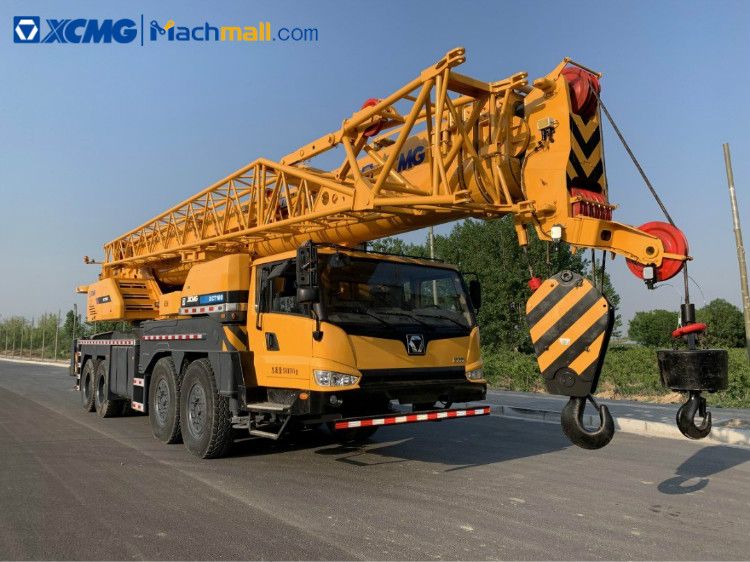

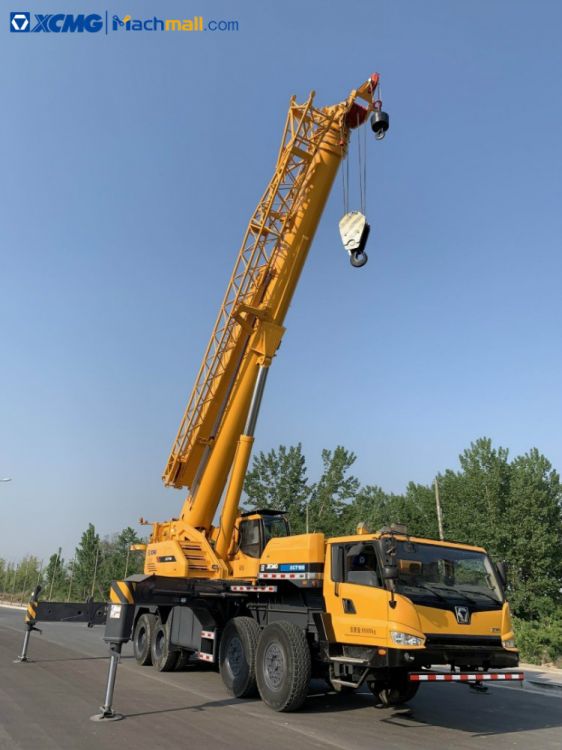

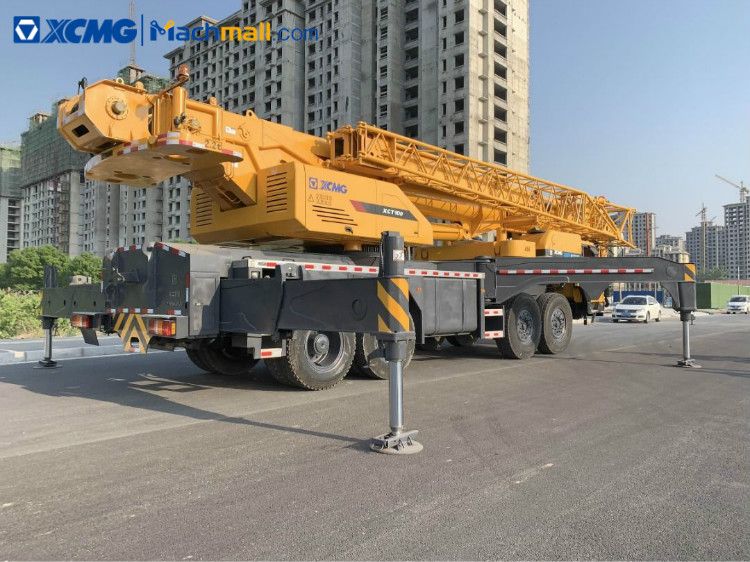

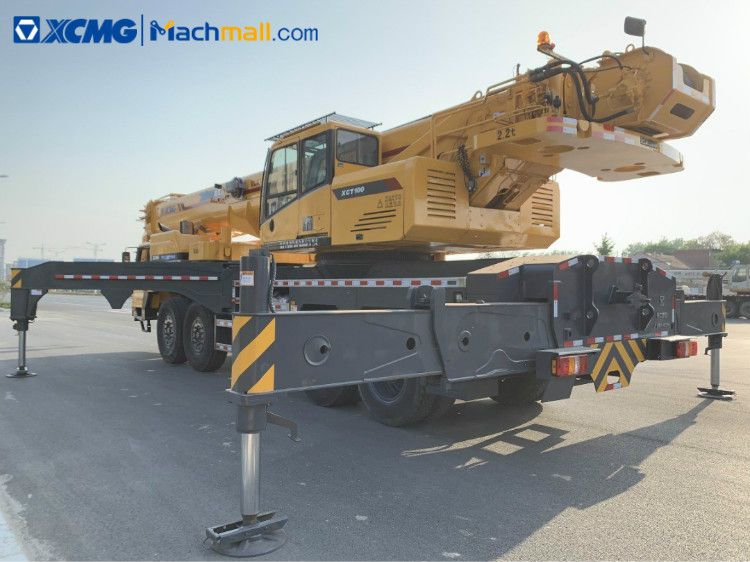

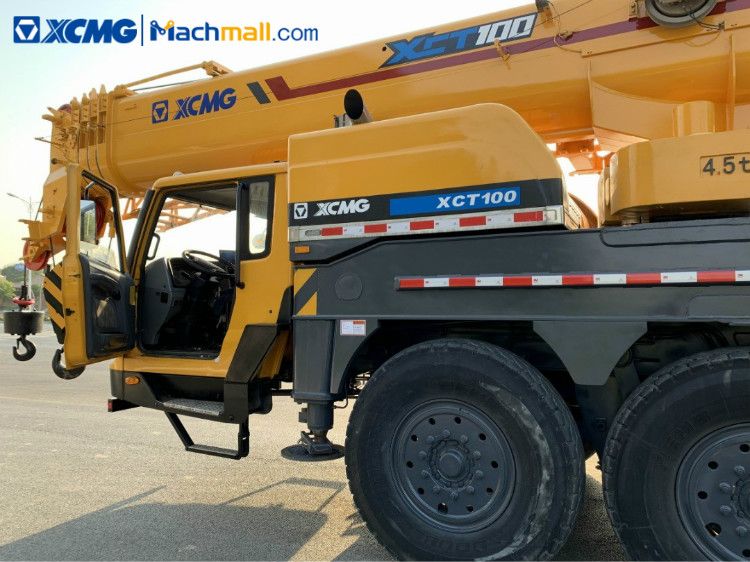

XCMG manufacturer XCT100 100 ton crane.

XCMG 100 ton crane XCT100 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

XCMG 100 ton crane XCT100 performance characteristics:

* 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively.

* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.

* XCT100 is also the first four-wheel driven truck crane which can meet the need under various road conditions.Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.

Description		Unit	Parameter value
Overall length		mm	15600
Overall width		mm	3000
Overall Height		mm	3870
Wheel Base		mm	1920+3500 +1420 +1505
Track(front/rear)		mm	2449/ 2315
Front/Rear overhang		mm	2650/2765
Front/Rear extension		mm	1840/0
Total vehicle mass in travel configuration		kg	55000
Axle load	1st and 2nd Axle	kg	10000
	3rd and 4th Axle		13000
	5th Axle		9000
Engine Model			WP6G240- E330	M906LA. E3A/2	WP12. 430N
Engine rated power		kw/(r/min)	176/2300	190/2200	316/1900
Engine rated torque		N.m/(r/min)	860/1200-1700	1000/1200-1600	2060/1000-1400
Max. travel speed		km/h	90
Min. turning diameter		m	23
Min. ground clearance		mm	326
Max. grade ability		%	45
Approach angle		°	18
Departure angle		°	13
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	70
Noise level at seated position		dB(A)	≤90
Exterior noise level		dB(A)	≤88
