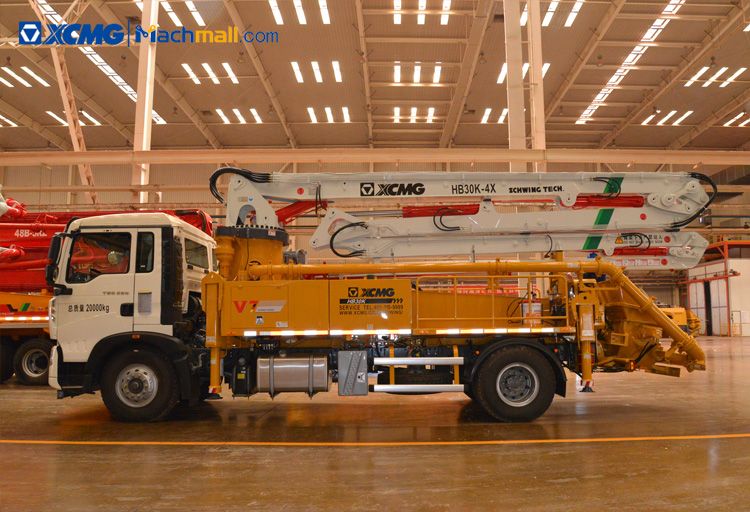

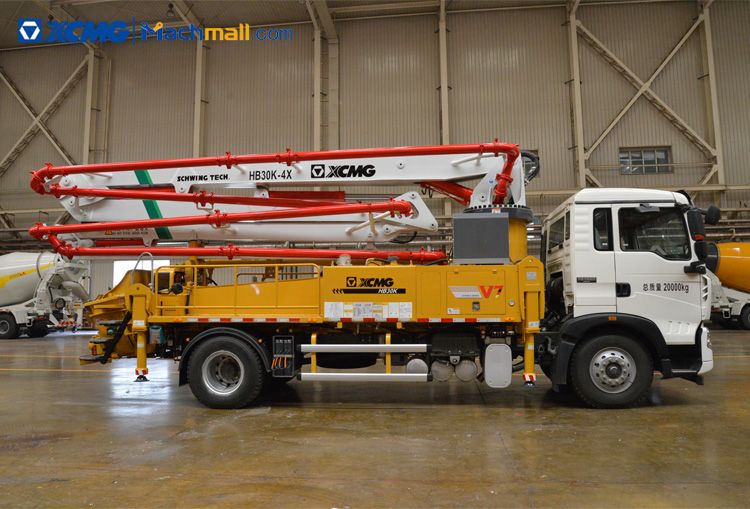

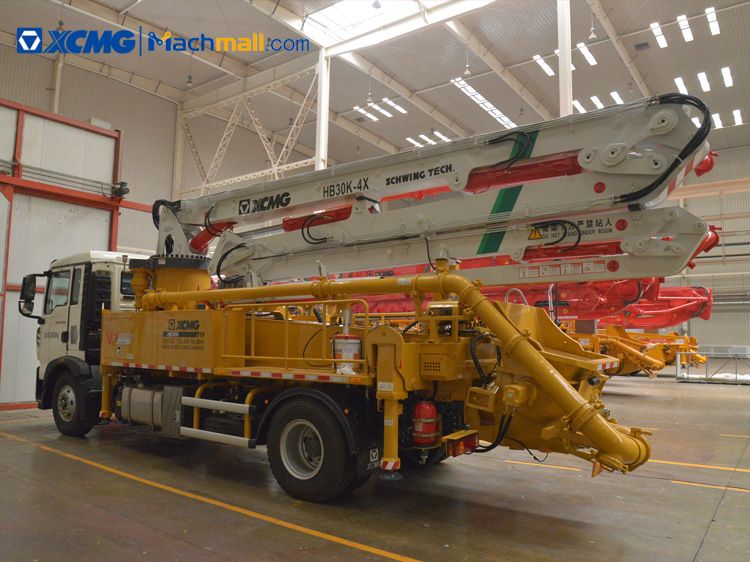

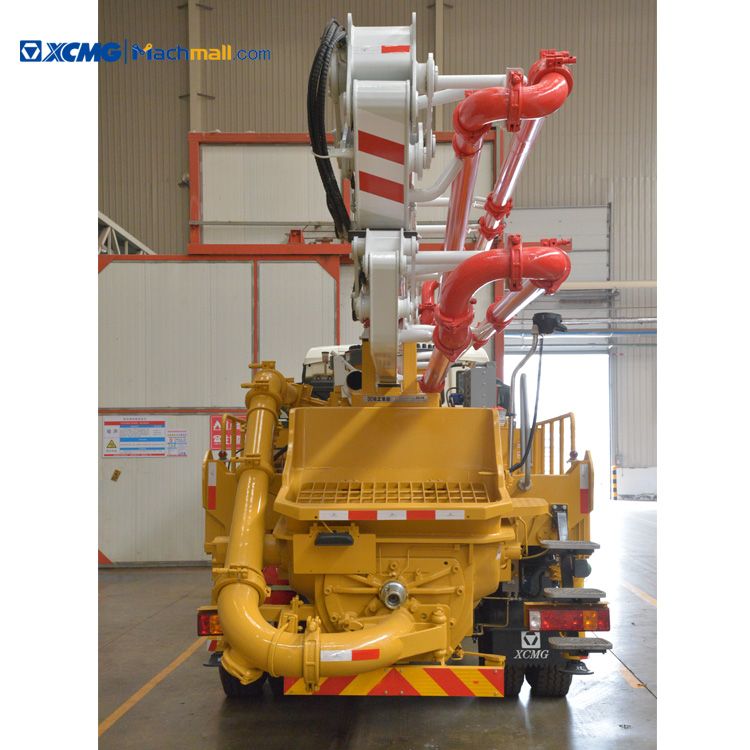

XCMG 30m small concrete pump trucks HB30K with HOWO chassis for Vietnam.
XCMG 30m small concrete pump trucks HB30K is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
XCMG 30m small concrete pump trucks HB30K is highly reliable and durable with seven technical highlights.
More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
|
Description |
Unit |
|
Parameter value |
|
Outline dimension |
mm |
|
10190*2500 *3700 |
|
Overall weight |
kg |
|
20000 |
|
Chassis |
Model |
|
ZZ5207M-521GC1 |
|
|
Max. speed |
km/h |
90 |
|
|
Max. grade- ability |
% |
35 |
|
|
Wheelbase |
mm |
5200 |
|
|
Tire |
|
11.00R20 |
|
Engine |
Model |
|
MC07.28-30 |
|
|
Max. power |
kW |
203 |
|
|
Max. torque |
N.m/ (r/min) |
1100/1200-1800 |
|
|
Displac-ement |
L |
6.87 |
|
Pumping system |
Theoretical output |
m3/h |
100 |
|
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/ min |
25 |
|
|
Delivery cylinder diameter *stroke |
mm |
φ230*1600 |
|
|
Max. diameter of pumping concrete |
mm |
40 |
|
|
Filling height |
mm |
1550 |
|
|
Concrete slump range |
cm |
8~23 |
|
Placing boom |
Reach height |
m |
29.6 |
|
|
Reach depth |
m |
18 |
|
|
Slewingradius |
m |
25.7 |
|
|
Slewing angle |
。 |
±270 |
|
Stabili- zer span |
Longitudinal span of stabilizer |
mm |
6100 |
|
|
Transverse span of front stabilizer |
mm |
5555 |
|
|
Transverse span of rear stabilizer |
mm |
4810 |
|
Others |
Lubrication method |
|
Automatic lubrication |
|
|
Control method |
|
Manual/ remote control |
|
|
Volume of water box |
L |
400 |
