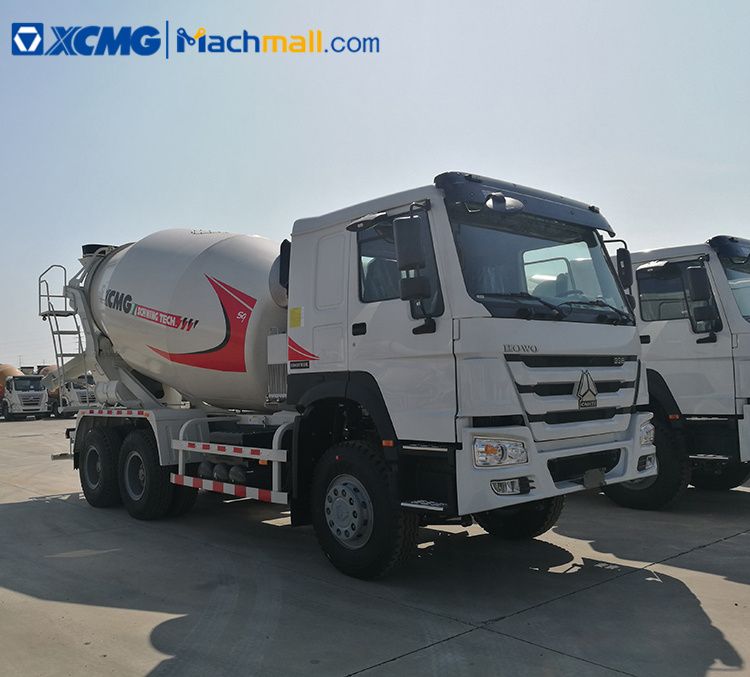

Concrete mixer machines G12K XCMG diesel.
On the basis of in-depth and integrative research on theindustry, XCMG concrete mixer machines G12K is system optimized by taking the integrated modularization design totruly realize the integrated innovation.
SCHWING’s blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%.
|
Description |
Unit |
|
Parameter value |
|
Performance of mixing drum
|
Geometric volume |
m³ |
19.5 |
|
Max. diameter of drum |
mm |
2380 |
|
|
Drum length |
mm |
5967 |
|
|
Mounting tilt angle |
° |
12 |
|
|
Rotary speed |
r/min |
0~14 |
|
|
Charging speed |
m³/min |
≥3 |
|
|
Discharging speed |
m³/min |
≥2 |
|
|
Residual ratio of discharging |
% |
<0.7 |
|
|
Range of slump |
㎝ |
5~21 |
|
|
Hydraulic system
|
Oil pump |
|
World-famous brand |
|
Motor |
|
World-famous brand |
|
|
Speed reducer |
|
World-famous brand |
|
|
Hydraulic circuit |
|
Closed type |
|
|
Water supply
|
Volume of water tank |
L |
450 |
|
Way of water supply |
|
Air pressure |
|
|
Overall machine
|
Chassis brand |
|
Sinotruck |
|
Chassis model |
|
ZZ1257N4048W |
|
|
Steering wheel |
|
Left steering wheel |
|
|
Curb mass |
㎏ |
15870 |
|
|
Driving type |
|
6×4 |
|
|
Wheelbase |
mm |
4025+1350 |
|
|
PTO way |
|
Flywheel PTO |
|
|
Outline dimension |
(L×W×H)mm |
9850×2500×3980 |
|
|
Engine
|
Model |
|
WD615.47 |
|
Rated power |
Kw/r/min |
273 |
|
|
Displacement |
L |
9.726 |
|
|
Emission standard |
|
ChinaⅡ |
More XCMG concrete mixer
Q: Who are we?
A: We are XCMG Group. Founded in 1989, we rank No. 3 in the world's construction machinery industry now. We are a large state-owned group with the largest scale, the most complete product range, the most competitive and influential construction machinery industry in China.
Q: What can we provide?
A: XCMG Group has 31 subsidiary companies and our equipment has been exported to 187 countries and regions. Our products involve hoisting machinery, earth-moving machinery, road machinery, concrete machinery, piling machinery, mining machinery, agricultural machinery, environmental machinery, fire fighting and aerial work machinery, port machinery, warehousing and logistics equipment, etc.
Q: How about after-sales service?
A: 1. XCMG Group pays attention to after-sales service throughout the product life cycle. As our distinguished service object, we always adhere to the service concept of customer first;
2. Online service: XCMG official platform Machmall.com: 12H+ online service, online technical support by engineers;
3. Overseas service: XCMG has more than 300 overseas distributors, more than 30 overseas subsidiaries and technology R&D centers, more than 2,000 accessory centers and service outlets, 15 production bases and KD factories, and 40 overseas offices.
Q: What is the relationship between Machmall.com and XCMG?
A: Machmall.com is the only global online platform officially launched by XCMG.
Q: How to tell whether it is XCMG official?
A: XCMG’s subsidiary companies have E-mails set up by XCMG Group ended with @xcmg.com, for example: machmall@xcmg.com. You have the right to request suppliers to use the E-mail of this kind to communicate.
Q: What are the advantages of purchasing online? Is there a guarantee?
A：1. Machmall.com aims to provide customers with 12H+ online after-sales service, online accessory purchase system, online second-hand equipment service,All series of XCMG construction machinery product, Chinese electro-mechanical equipment;
2. Machmall.com is responsible for every piece of equipment sold through the official channels of XCMG;
3. Purchasing on Machmall.com is more convenient, quicker and more economical; product series are more complete and information is more complete. Machmall.com supports online visit of the factories, VR show of products and product catalog download.
Q: Others:
A: For more questions about the distributors, exhibition halls, exhibitions, online factory visits, product details, and brand verification, you can contact us via email machmall@xcmg.com, online service, or leave a message on Machmall.com.
