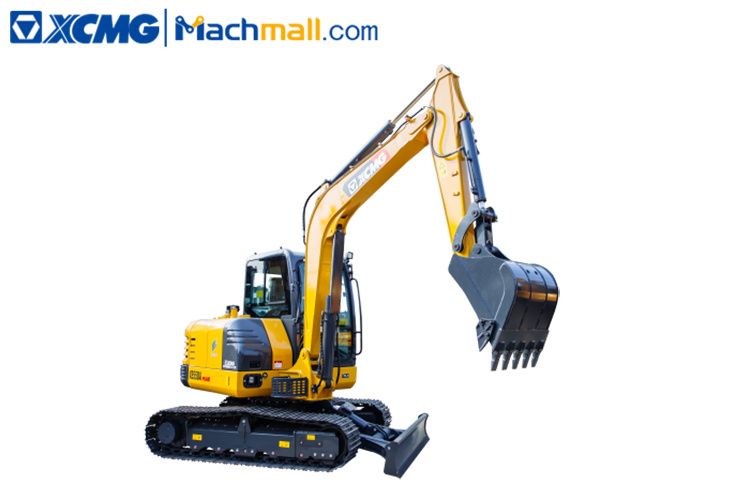

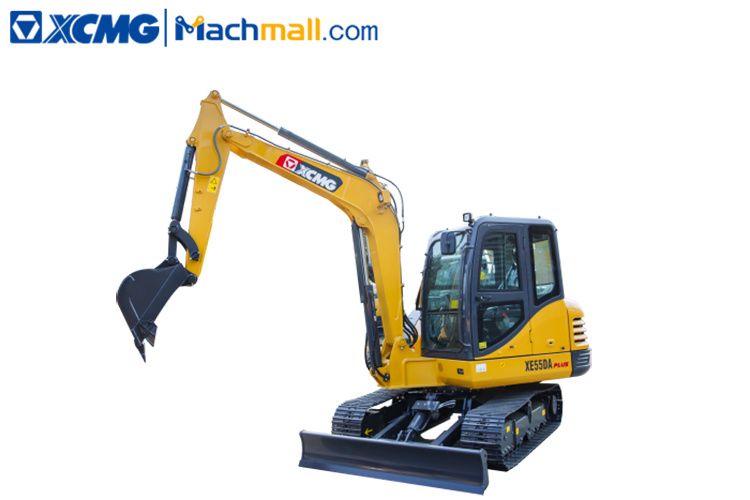

China 5 ton excavator XCMG XE55DA PLUS small hydraulic excavator.

XCMG 5 ton excavatorXE55DA PLUS is widely used in small earthwork, municipal construction, road repair, broken concrete, buried cable, irrigation and water conservancy construction, garden cultivation and river silting and other projects.

Advantages:

1. Widened and lengthened chassis with good excavation stability.

2. Match "8-ton" large diameter main valve, soft control, good coordination of composite action, good flat performance.

3. Heat balance temperature is reduced by 6 degrees, high temperature adaptability and anti-pollution ability is strengthened.

4. Optimize the structure and seal of the cab, reduce indoor noise and operation fatigue, make the cab cleaner and improve the cab texture.

5. Optimized handle operation force to reduce fatigue.

6. Optimized rotary control, easier lifting operation.

Sales model		Unit	XE55DA PLUS
Operating weight		Kg	5750
Bucket capacity		m³	0.21-0.23
Engine	Model	/	V2607
	No. of cylinders	/	4
	Rated power	kw/rpm	35/2000
	Displacement	L	2.615
Main performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	10
	Gradeability	°	35
	Ground pressure	kPa	31
	Bucket digging force	kN	48.3
	Arm digging force	kN	32.5
	Maximum tractive force	kN	50.5
Hydraulic system	Rated flow of main pump	L/min	150
	Main safety valve pressure	MPa	24.5
	Travel system pressure	MPa	24.5
	Swing system pressure	MPa	24
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	77
	Engine oil capacity	L	10
Appearance size	A Overall length	mm	5860
	B Overall width	mm	1980
	C Overall height	mm	2585
	D Width of platform	mm	1780
	F Overall width of chassis	mm	1980
	G Track width	mm	400
	H Wheel base of crawler	mm	2060
	I Track gauge	mm	1560
	J Counterweight clearance	mm	700
	K Min. ground clearance	mm	385
Working scope	A Max. digging height	mm	5630
	B Max. dumping height	mm	3945
	C Max. digging depth	mm	3830
	F Max. digging radius	mm	6130
	G Min. swing radius	mm	2640
