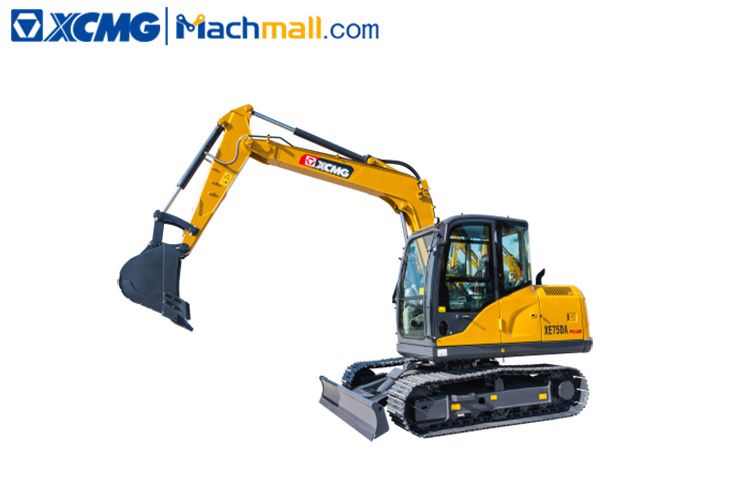

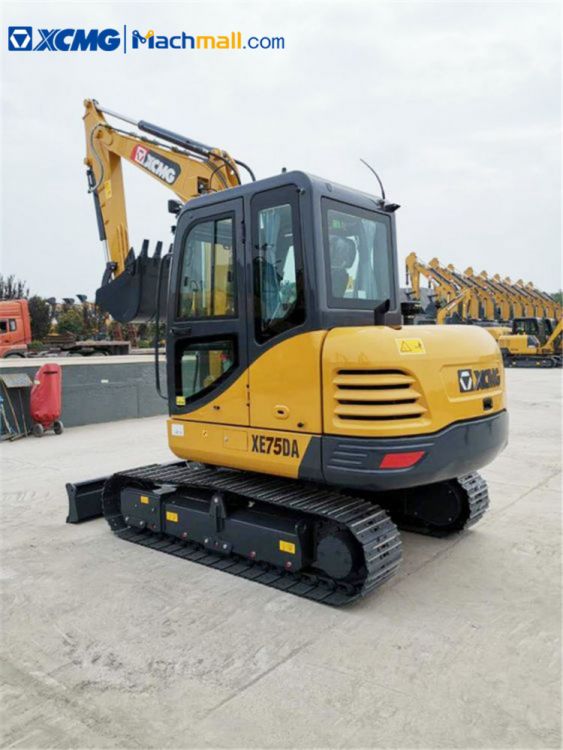

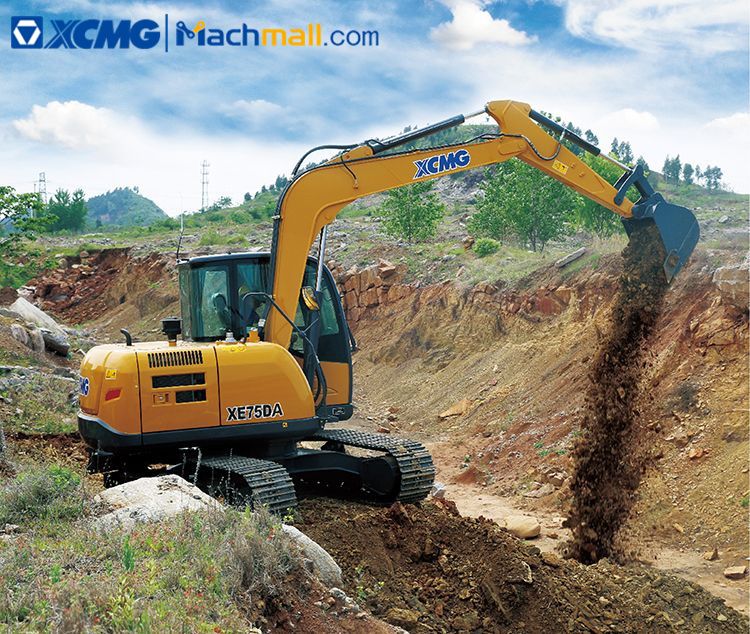

Small excavator XCMG XE75DA PLUS 7.5 ton hydraulic machine.
XCMG small excavator XE75DA PLUS is XCMG PLUS series hydraulic crawler excavator, widely used in small earthwork, municipal construction, road repair, concrete broken, buried cable, irrigation and water conservancy construction, garden cultivation and river silt dredging and other projects.
Advantages:
1. XCMG customized Kubota mechanical direct injection supercharged engine, with good oil adaptability, large low-speed torque, low fuel consumption, low noise and high reliability under harsh conditions.
2. New load sensing hydraulic system, low energy consumption, high efficiency.
3. The E/P/B mode control system independently developed by XCMG has better adaptability to working conditions.
4. Electric control system with "automatic idle speed" function, better fuel economy.
5. Enhanced working device and chassis, higher reliability.
|
Sales model |
|
Unit |
XE75DA PLUS |
|
Operating weight |
|
Kg |
7680 |
|
Bucket capacity |
|
m³ |
0.33 |
|
Engine |
Model |
/ |
V2607-D4-TE38 |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
42.4/2000 |
|
|
Displacement |
L |
2.615 |
|
Main performance |
Travel speed |
km/h |
5.4/2.9 |
|
|
Swing speed |
r/min |
10 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
33.5 |
|
|
Bucket digging force |
kN |
57 |
|
|
Arm digging force |
kN |
38 |
|
|
Maximum tractive force |
kN |
68.3 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
160 |
|
|
Main safety valve pressure |
MPa |
28 |
|
|
Travel system pressure |
MPa |
27.4 |
|
|
Swing system pressure |
MPa |
18.6 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
Oil Capacity |
Fuel tank capacity |
L |
130 |
|
|
Hydraulic tank capacity |
L |
76 |
|
|
Engine oil capacity |
L |
10 |
|
Appearance size |
A Overall length |
mm |
6150 |
|
|
B Overall width |
mm |
2255 |
|
|
C Overall height |
mm |
2685 |
|
|
D Width of platform |
mm |
2070 |
|
|
F Overall width of chassis |
mm |
2250 |
|
|
G Track width |
mm |
450 |
|
|
I Track gauge |
mm |
1800 |
|
|
J Counterweight clearance |
mm |
815 |
|
|
K Min. ground clearance |
mm |
380 |
|
Working scope |
A Max. digging height |
mm |
7085 |
|
|
B Max. dumping height |
mm |
5160 |
|
|
C Max. digging depth |
mm |
4020 |
|
|
F Max. digging radius |
mm |
6260 |
|
|
G Min. swing radius |
mm |
1818 |
