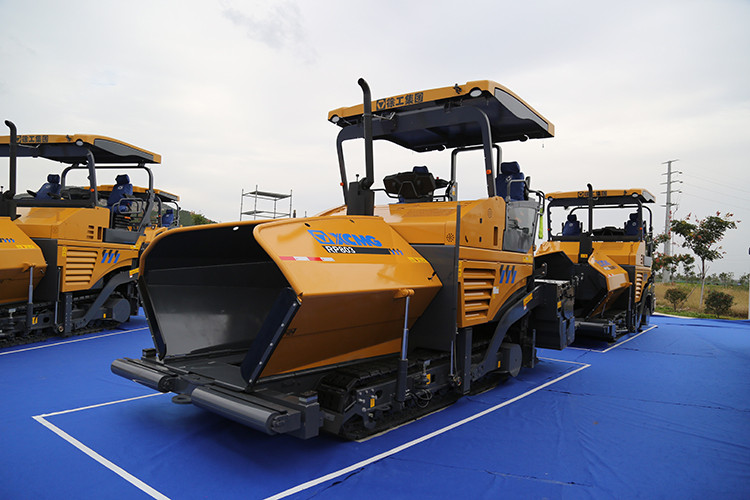

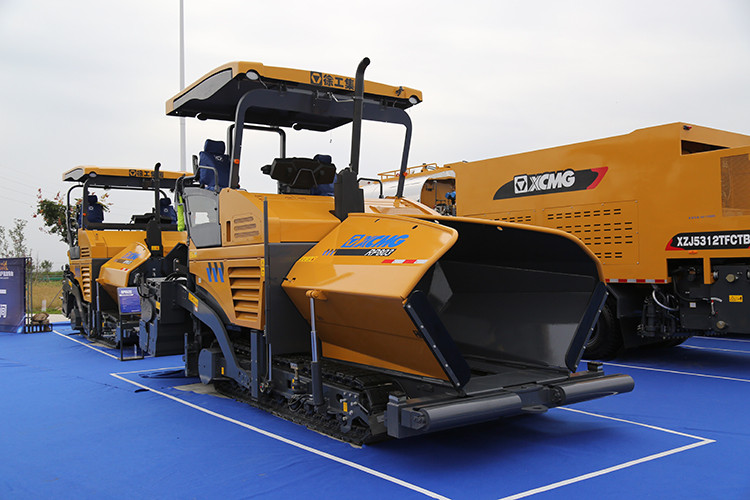

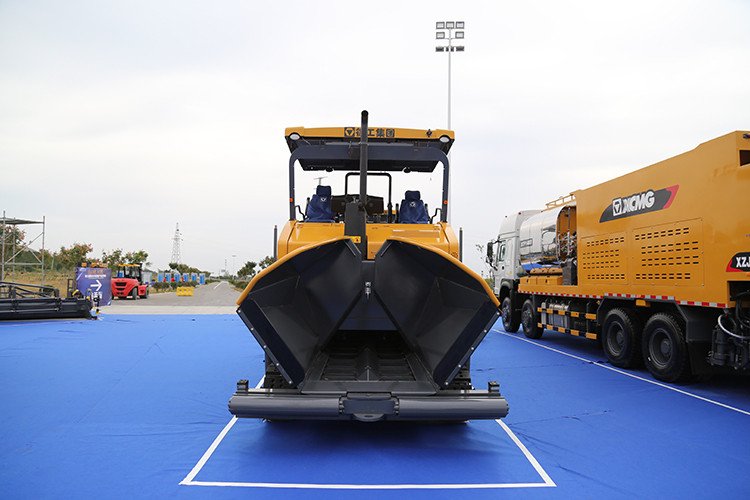

XCMG pave width 8m RP803 concrete road paver.



Driving left and right independent drive, microcomputer control, left and right input and output using ultrasonic sensor control technology. The leveling system uses electronic leveling technology. The hydraulic telescoping screed uses single vibration, pulse vibration and electric heating technology to protect the environment and improve the life of the screed bottom plate.



Centralized lubrication system, use of advanced mature and reliable Shangchai new generation of four-valve SC7H water-cooled engine, powerful power, low fuel consumption. Dividing blades use highly wear-resistant alloy material. The console can intuitively display various work functions, paving, driving speed, and can be installed around. The machine has a high degree of automation, simple and convenient operation, high operating efficiency.

Item	RP803
dimension	6680×3000×4000
Weight	19-23.7t
Driving speed	0-3Km/h
Basic pave width	3-8m
Maximum pave width	8m
Maximum layer thickness	350mm
Maximum paving speed	20m/min
Hopper capacity	14t
Maximum laydown rate	600t/h
Rate power	140/2000 kw/rpm
