Item | Unit | XM200II | |
Maximum milling width | mm | 2000 | |
Maximum milling depth | mm | 320 | |
Milling Wheel | Interval between | mm | 18 |
Amount of tools | 146 | ||
Diameter of milling wheel(with tool) | mm | 980 | |
Maximum dip angle of milling wheel | ° | 5 | |
Diesel engine | Manufacturer | Weichai | |
Cooling type | Water cooling | ||
Model | DHP13 | ||
The quantity of cylinder stator | 6 | ||
Related power | kw | 390 | |
Engine speed | rpm | 2100 | |
Oil consumption: Full load | l/h | 103 | |
Speed/gradeability | Working speed | m/min | 0-40 |
Walking speed | km/h | 0-5 | |
Theoretical gradeability(working gear) | % | 60 | |
Interval to the ground | mm | 320 | |
Weight/load | Shipping weight | kg | 30000 |
Working weight | kg | 34000 | |
Crawler belt device | Front crawler belt | mm | 1720 x 300 x 620 |
Rear crawler belt | mm | 1720 x 300 x 620 | |
Tank volume | Fuel tank | L | 1400 |
Hydraulic fuel tank | L | 300 | |
Water tank | L | 3400 | |
Electric system | F | 24 | |
Conveyor belt device | Width of material collection conveyor belt | mm | 850 |
Width of material unloading conveyor belt | mm | 850 | |
Delivery capacit of conveyor belt | ≤m3/h | 330 | |

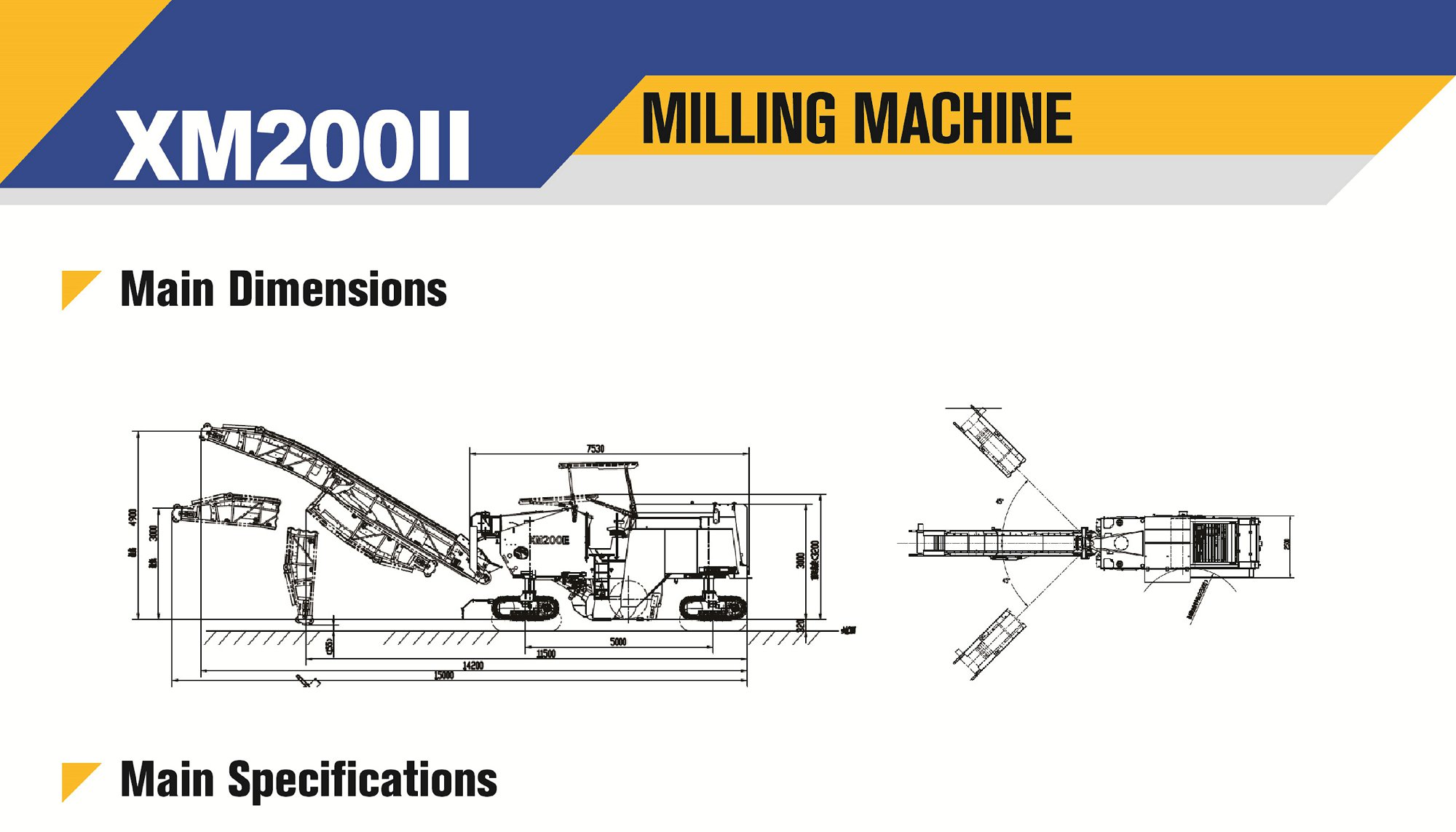

Overall dimension of shipping | Machinery(length x width x height) | mm | 7650 x 2580 x 3000 |
Belt conveyor(length x width x height) | mm | 8060 x 1150 x 1500 | |
