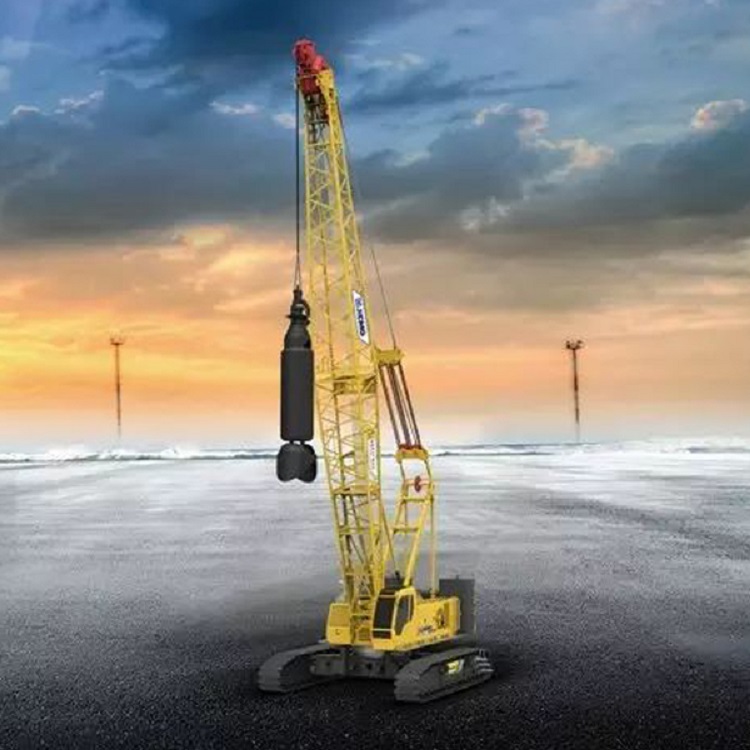

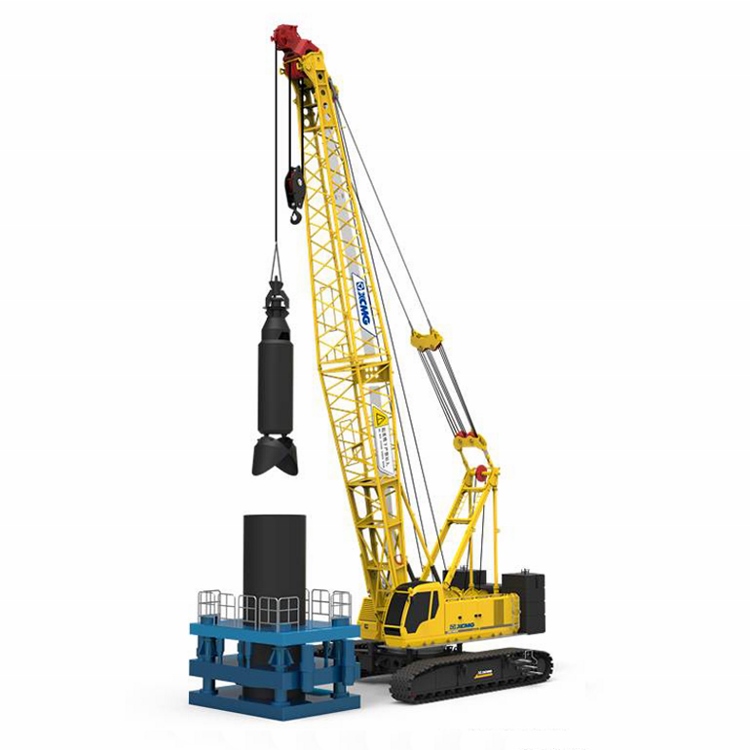

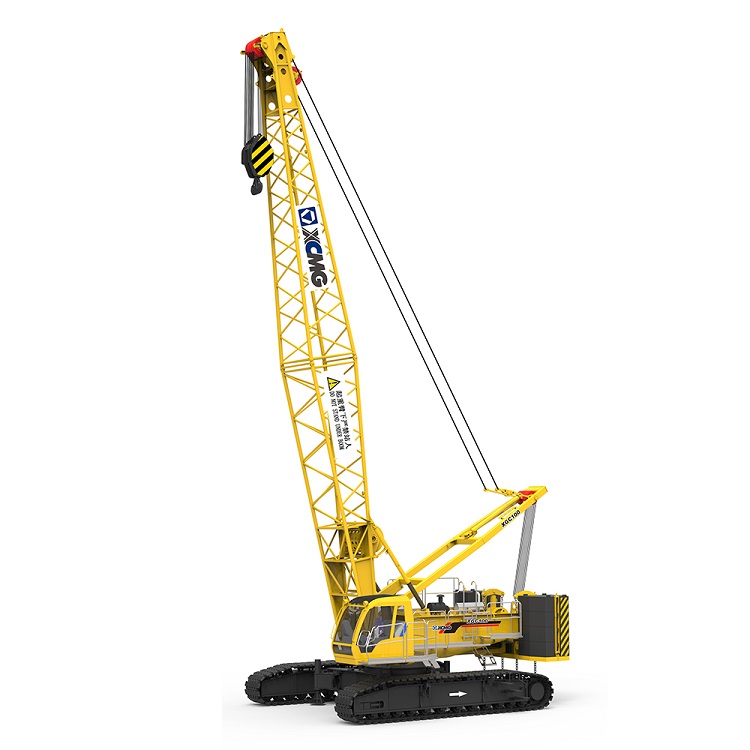

XCMG Official 100 ton Crawler Crane XGC100 China heavy hydraulic crane for sale



Based on many years’ development and application experiences of telescopic crawler crane, XCMG launched the new generation XGC100 in 2013 according to the market demands. Inheriting the advantages from the old generation product, XGC100T telescopic crawler crane pays more attention to the improvement of lifting performance, assembly/disassembly and transport convenience and operation comfort. It will bring new experience to customers with multiple outstanding features such as new appearance, industry leading lifting capacity and perfect self-assembly and disassembly function.

Crane full length

(mm)

12805

Crane full width

(mm)

4200/2950

Crane full height

(mm)

3035

Central distance between active and passive roller

(mm)

4330

Width of track shoe

(mm)

700

Weight

*

Total mass in travel state

(kg)

34960

Travel

*

Travel speed with empty load

(km/h)

2.6

Travel speed with full load

(km/h)

1.5

Min. clearance from the ground

(mm)

357

Max. gradeability

(%)

45

Ground pressure

(MPa)

0.06

Power

*

Ear noise

(A)

80

Engine model

-

QSB6.7

Rated power of engine

(kw)

142

Rated revoution speed of engine

(r/min)

1800

Emission standard of engine

-

 EU Stage IIIA
