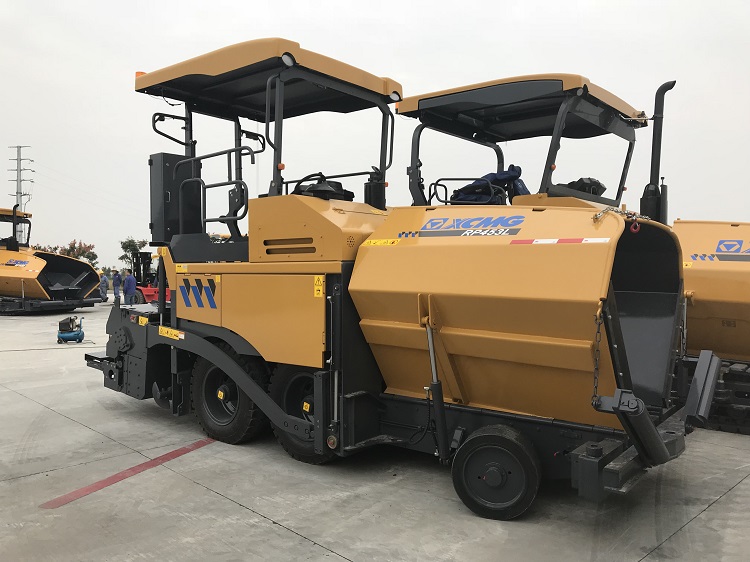

XCMG Road Machinery 4.5 mmini road paver machine RP453L pavers.



Full hydraulic four-wheel drive, continuously variable, equipped with SC4H100G3 water-cooled turbocharged diesel engine, power up to 73.5KW.



Gas heated hydraulic telescoping screed, stepless adjustable vibration frequency, paving width from 2 meters to 4.5 meters Width, the functional console is modularized, the control system of the main switchgear is used.



The automatic leveling device is used, the vertical flatness is 3mm/3M, the transverse gradient is within 0.02%, wet multi-disc brakes are used for driving and Parking brake, the whole machine is safe and reliable, and the material-discharging blades are made of highly wear-resistant Cr-Ni-based materials to extend the service life.

Description

Unit

Parameter value

Dimension

mm

5690*2070*3590

Weight

kg

11000

Driving speed

m/min

0-20

Basic pave width

m

1.8-3.4

Maximum pave width

m

4.5

Maximum layer thickness

mm

260

Maximum paving speed

m/min

18

Hopper capacity

kg

12000

Maximum laydown rate

t/h

240

Rate power

kw/rpm

73.5/2000
