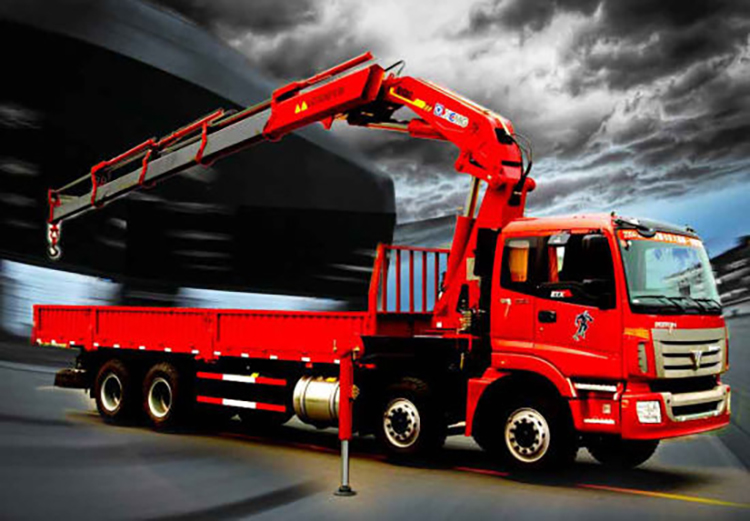

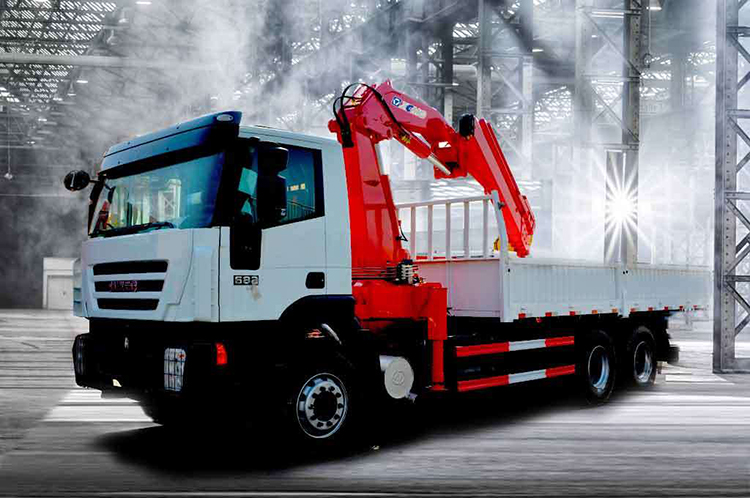

XCMG Official 12ton truck mounted crane with foldable arm SQ12ZK3Q
*Single cylinder synchronization guy cable technology makes work efficiency higher than before.
*Advanced development means make sure that the design is very reliable.
*The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity
*Compact hinge point design takes up smaller space.
*The work is more safety after fitted with alarm device.
*The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
*Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.
*It has been fitted own powerful slewing of working in diversifying conditions.
*Anti-slewing impulse equipment makes vehicle running safety.
Truck with loading crane | ITEM | UNITS | Crane model |
SQ12ZK3Q | |||
Max lifting capacity | KG | 12000 | |
Max lifting capacity | T.M | 30 | |
Max oil flow | L/MIN | 55 | |
Max pressure | MPA | 30 | |
Crane weight | KG | 4130 | |
Installation space | MM | 1400 | |
Rotation angle | DEGREE | 360 | |
Extension length | MM | 9780 | |
Lifting height | MM | 12000 | |
Max elevation | DEGREE | 75 |
