XCMG Official 220 Ton Mobile Lifting Crane XCT220 China Mobile Crane.

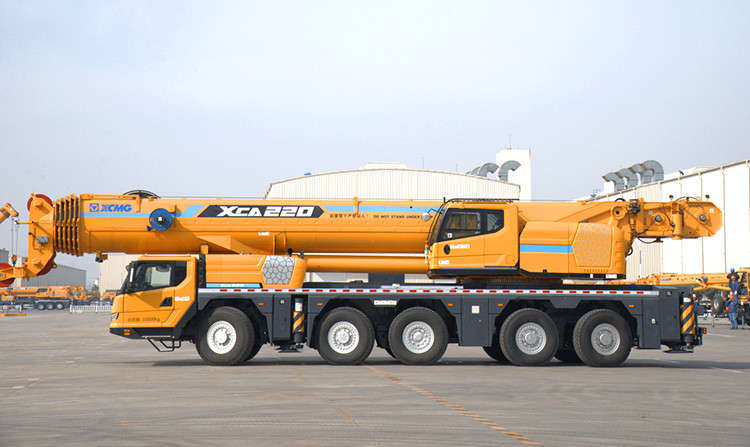

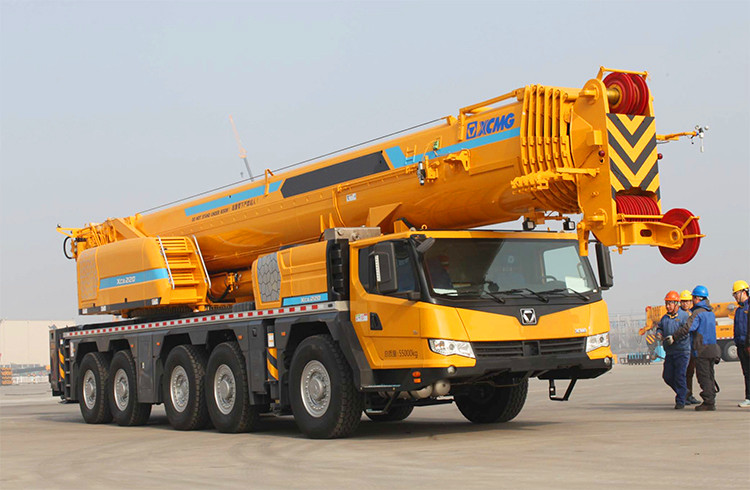

The crane is a five-axle 220 t All Terrain Crane with leading lifting performance.

Advantages and highlights:

1. Power and traveling performance * Diesel engine, rated power 360kw, max. torque 2200N.m. * 12-speed ZF automatic gearbox. * Max. travel speed 84Km/h, Max. grade ability 67%.

2. Large tonnage crane's mono-engine system * The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power. * Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance. The annual maintenance cost of dynamic system is saved for more than 40%.

3. New highly efficient energy-saving hydraulic system * Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly. * Mature double-variable mechanism with fine control tactic, matching perfectly stably. * Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
