mini light road roller XMR083 China 1 ton small double
drum road roller compactor machine.

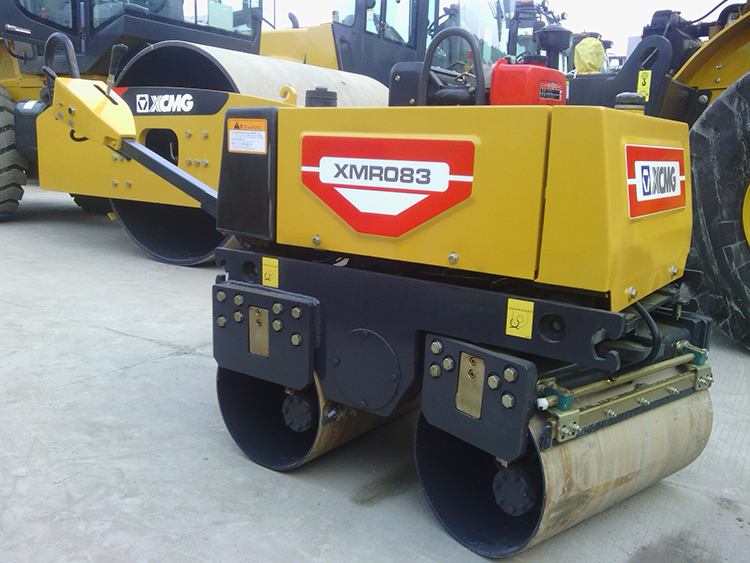

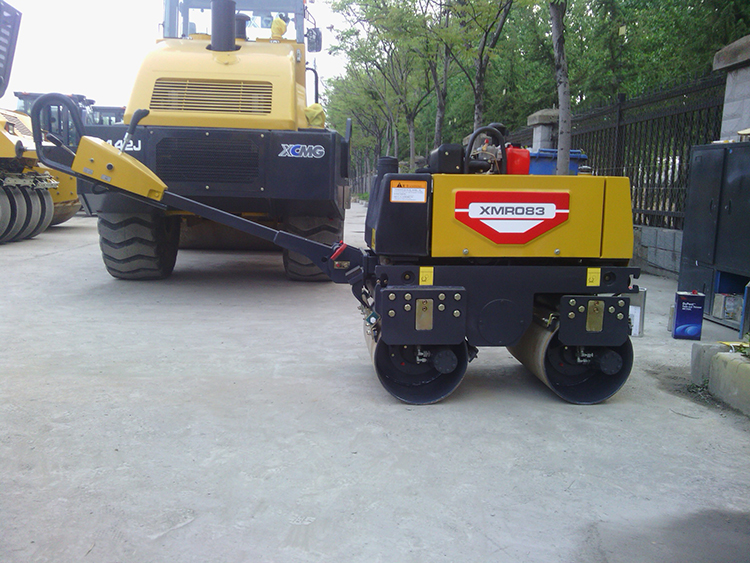

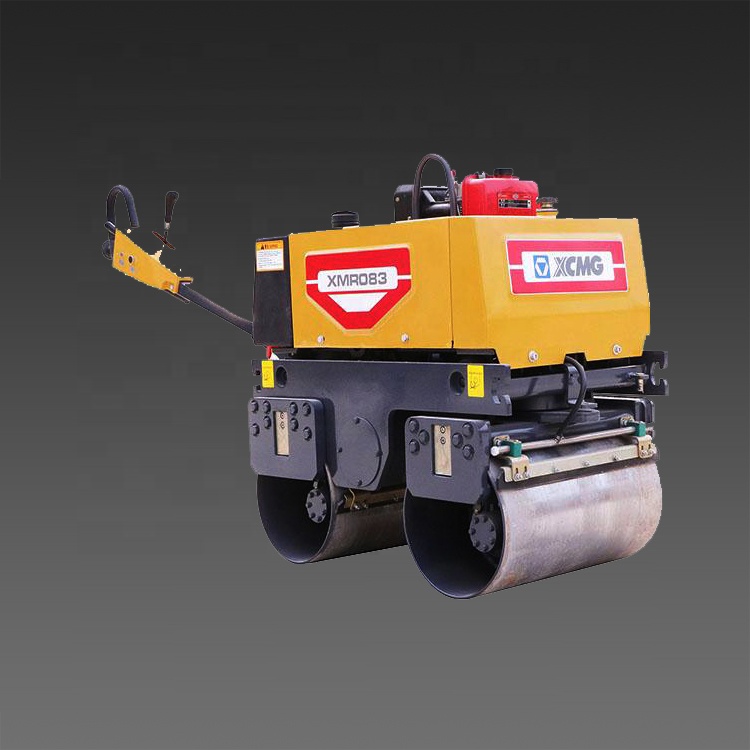

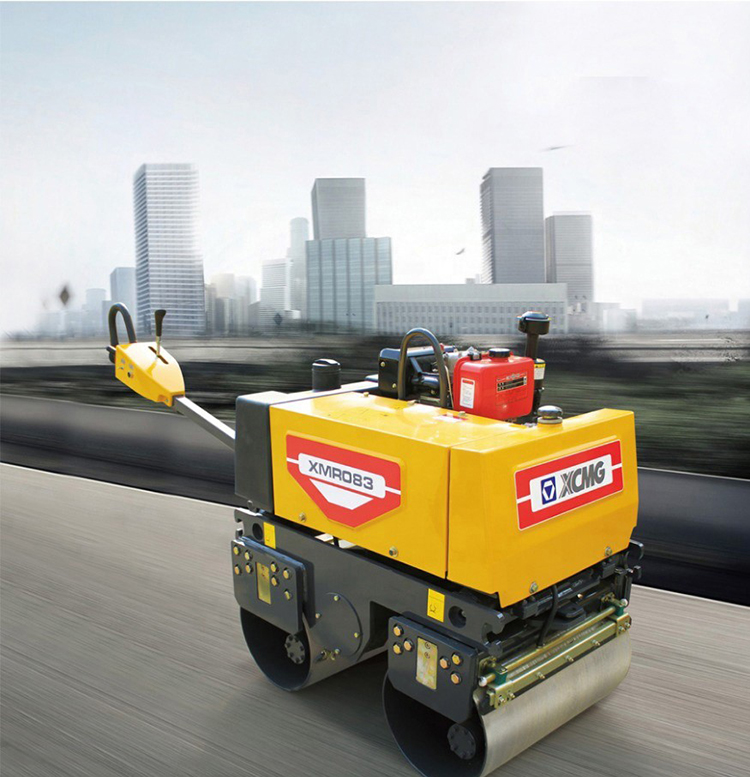

XCMG XMR083 is walk-behind double drum vibratory roller
with operating mass of 0.8 tons, has features such as electromagnetic
vibration, valve control hydraulic steering and comfortable operation. It is
mainly used for compacting asphalt concrete surface layer, especially for urban
roads, stadiums and other minor works.

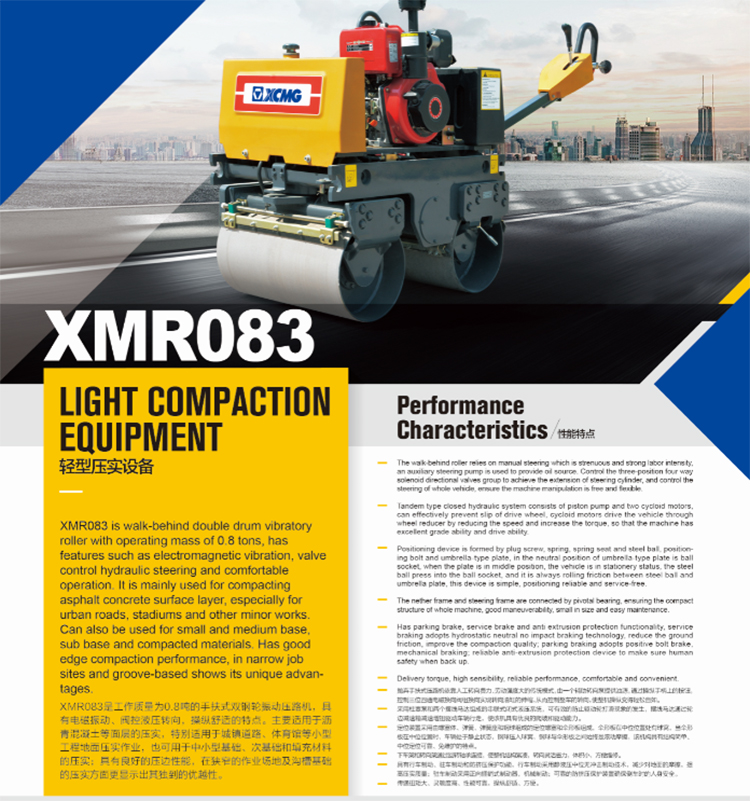

Performance Characteristics:
* Has good edge compaction performance, in narrow job
sites and groove-based shows its unique advantages.
* Achieve the extension of steering cylinder, and control
the steering of whole vehicle, ensure the machine manipulation is free and
flexible.
* Can effectively prevent slip of drive wheel, so that
the machine has excellent grade ability and drive ability.
* The device is simple, positioning reliable and
service-free.
* Ensure the compact structure of whole machine, good
maneuverability, small in size and easy maintenance.
|
Item |
XMR083 |
|
Operating mass |
800kg |
|
Drum diameter |
400mm |
|
Drum width |
708mm |
|
Speed range |
0～3.6km/h |
|
Theoretical gradeability |
30% |
|
Minimum turning radius |
3135mm |
|
Minimum ground clearance |
250mm |
|
Wheel base |
720mm |
|
Steering angle |
±15° |
|
Vibrational frequency |
55Hz |
|
Nominal amplitude |
0.32mm |
|
Exciting force |
15.8kN |
|
Engine type |
186F |
|
Rated speed |
2600r/min |
|
Engine rated power |
5kW |
|
Engine fuel consumption |
280g/kW.h |
|
Overall dimension(length× width× height) |
2695×760×1200mm |
|
Hydraulic tank volume |
16L |
|
Diesel tank volume |
5.5L |
|
Water tank volume |
40L |
