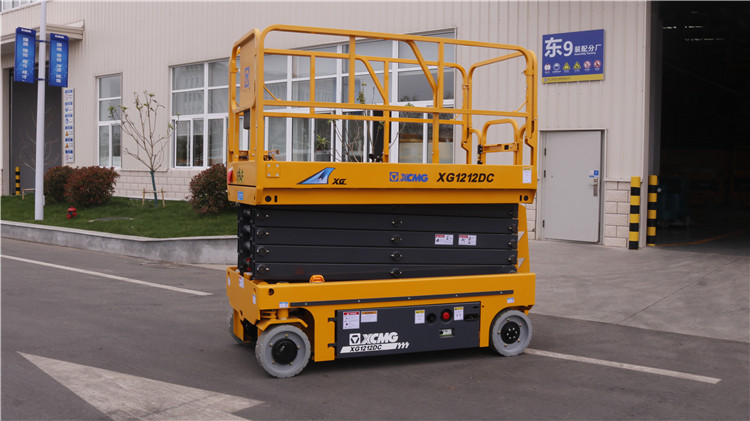

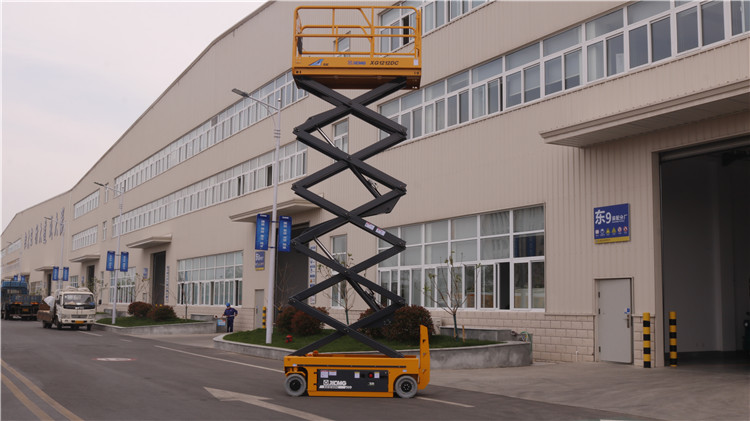

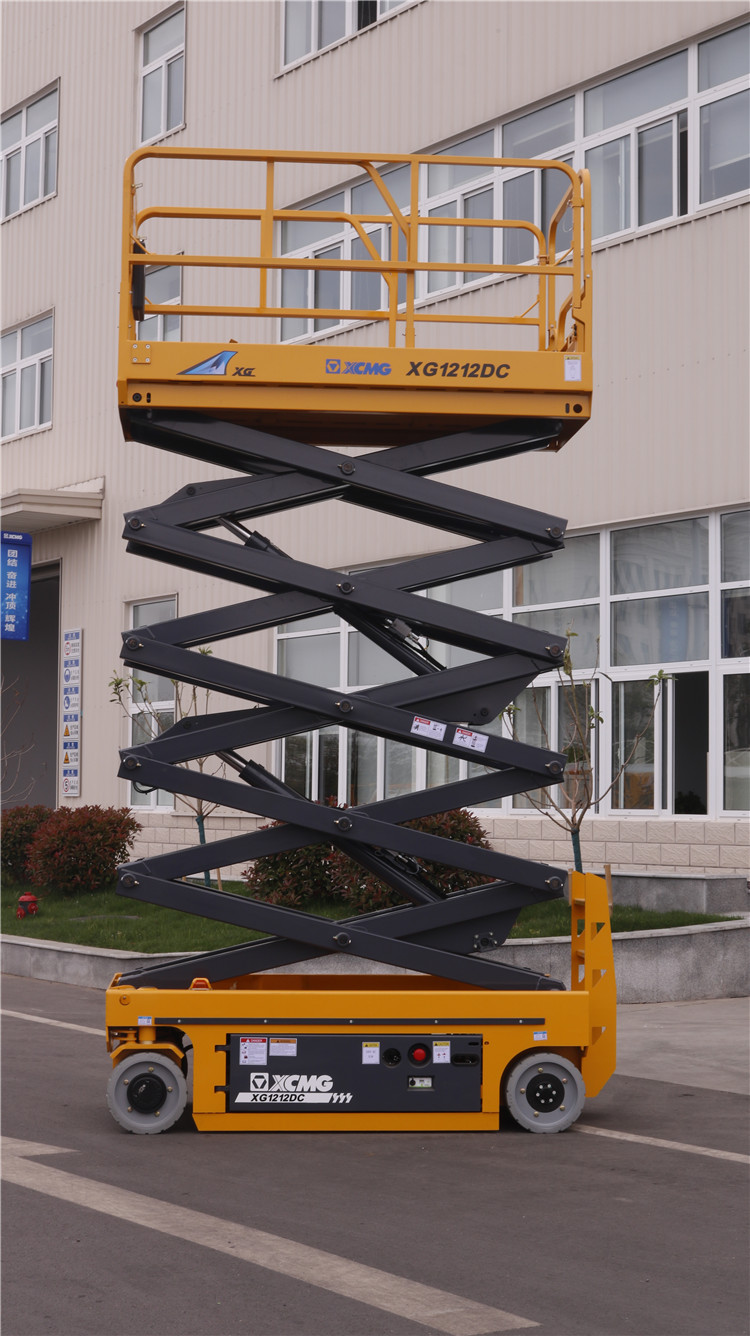

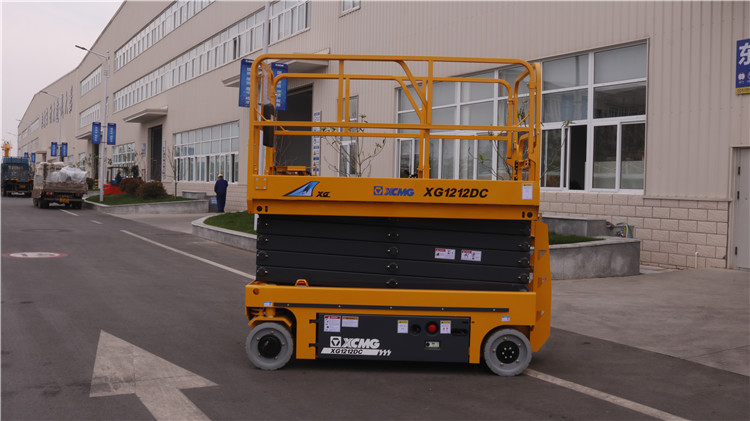

XCMG Manufacturer Table Lift XG1212DC China Brand 12m Electric Height Adjustable Table Lift Mechanism.

New electric table scissor lift developed by XCMG has the work height at 12m, the vehicle width at 1.17m, the rated load at 450kg, max. platform length at 3.2m and max. gradeability at 25%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction. In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.

Advantages and features:

1.Effective and energy-saving electric-drive system features zero emission and low noise.

2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.

3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.

4.Maximum payload at 320kg, leading the industry.Maximum traveling speed 4 km/h and 25% gradeability make the driving easier.

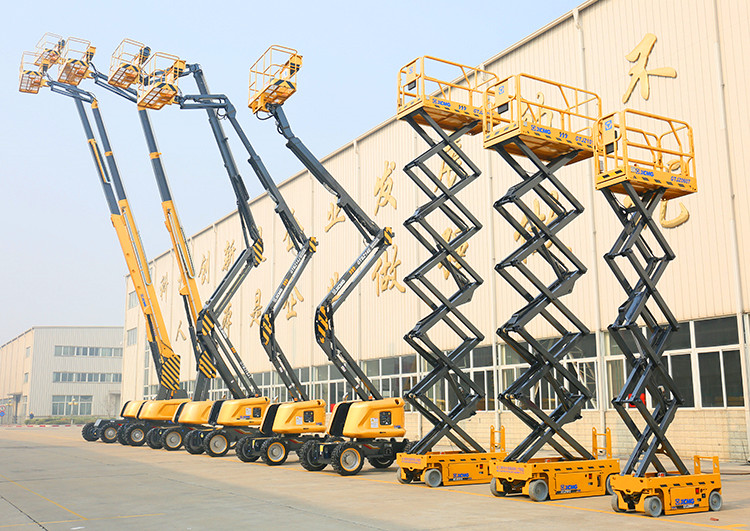

u More scissor lift
