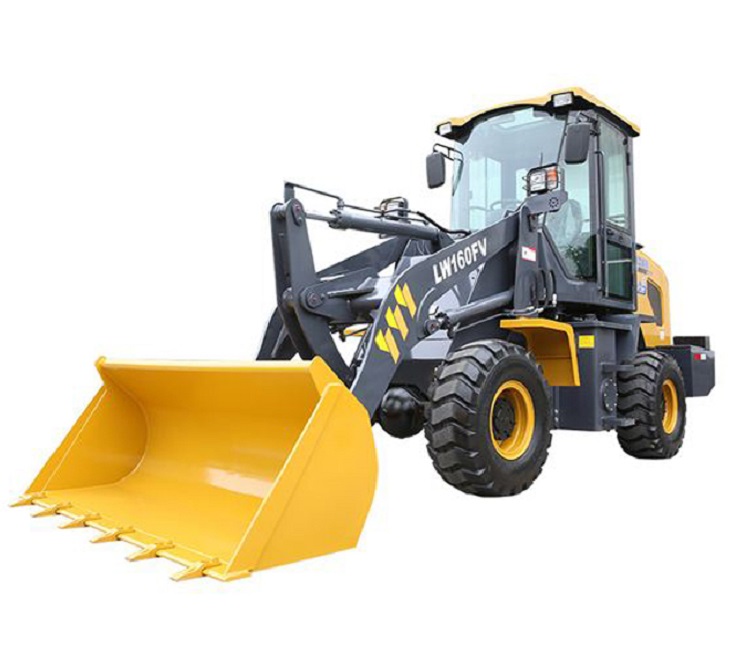

XCMG official 1.5 ton mini weel loader
LW160FV.
LW160FV is the latest generation of loaders
introduced by XCMG. The product adopts the international mainstream modelling,
the best matching of the power train, and the working device is fully
optimized. It is a high-quality, high-efficiency, cost effective small-sized
loader widely used in housing construction, road maintenance, agriculture,
forestry, water conservancy, sand and gravel yards and other fields small
construction work.
1.Streamlined appearance, large field of
vision glass, circular weight, beautiful appearance, the international
mainstream.
2.XCMG features heavy-duty transmission and
structural components that are extremely reliable.
3.People-oriented design ensures safety,
reduces fatigue and creates an excellent operating environment for you.
4.Designed with a long wheelbase (2250mm) to
accommodate all types of heavy load conditions.
5.The unloading height can reach up to 3.0 meters
to meet the needs of various occasions.
6.Travel speed up to 20km/h, efficient
operation, quick transition.
7.Can be equipped
with hydraulic pilot, warm air, sound, etc., comfortable operation, driving
safety.
Main Parameters | Parameters | Unit | |
Rated operating load | 1300 | kg | |
Dumping height | 3000 | mm | |
Dumping distance | 950 | mm | |
Bucket capacity | 0.75 | m3 | |
Machine weight | 5000 | kg | |
Wheel base | 2300 | mm | |
Tread | 1500 | mm | |
Hinge-axis height at lifting limit | 3600 | mm | |
Max. breakout force | 44 | kN | |
Boom lifting time | 5 | s | |
Total cycle time | 9.5 | s | |
Min. turning radius over tyres | 4450 | mm | |
Articulation angle | 35 | ||
Gradeability | 25 | ||
Tyre size | 16/70-16 | - | |
Overall machine dimension L*W*H | 5810*2060*2815 | mm | |
Engine model No. | YN4C075-30CR | - | |
Rated Power/Speed | 55/2400 | kW/rpm | |
Travel Speed | Ⅰ-gear(F/R) | 8 | km/h |
Ⅱ-gear(F/R) | 20 | km/h |
