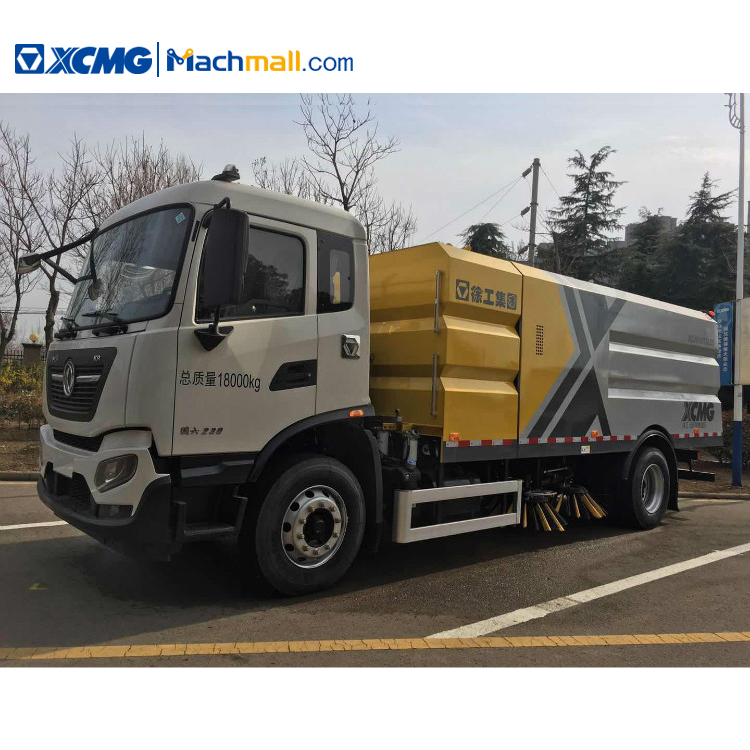

XCMG XZJ5160TXSD5 8 ton street road sweeper truck.
Description
|
Specification
|
|
Automotive chassis
|
Model,categoryand manufacturer of chassis
|
DFL1160BX1V(Standard ChinaⅤ)
|
Model and manufacturer of engine
|
4HK1-TC51, 4KH1-TCG51
|
|
Rated power of engine
|
141kW/2600r/min
|
|
Front wheel
|
7.00-16 14PR
|
|
Rear wheel
|
7.00R16 14PR
|
|
Fuel type
|
Diesel meeting the discharge requirements in the fifth stage, select an appropriate diesel grade according to the temperature
|
|
Auxiliary engine
|
Model and manufacturer
|
EQ6BT5.9 or QSB5.9-C160-30 (Standard ChinaⅢ)
|
Power
|
118kw/2500r/min;120kw/2200r/min
|
|
Clutch
|
Single plate, dry type and diaphragm spring
|
|
Fan
|
Type
|
Special high-pressure centrifugal fan
|
Mode of transmission
|
Narrow V belt drive
|
|
Hydraulic
system
|
Type
|
Open type, EHC and centralized control
|
Main elements
|
Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc.
|
|
Overflow pressure
|
14 MPa
|
|
Hydraulic oil capacity
|
60 L
|
|
Electrical
system
|
Control mode
|
PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc.
|
Chassis system voltage
|
24 V
|
|
Working device system voltage
|
12 V
|
|
Model of storage battery
|
Chassis: 12V-70A.H (2 pieces connected in parallel)
|
|
High-pressure cleaning
system
|
Type
|
Plunger type
|
Model
|
Italian Pratissoli KEB36R
|
|
Rated pressure
|
10 MPa
|
|
System working pressure
|
9 MPa
|
|
Rated flow
|
80 L/min
|
|
Rated speed
|
1150 L/min
|
|
Type of water valve
|
High-pressure stainless steel ball valve, 10 MPa
|
|
Control mode
|
Oil cylinder drive, electrical control
|
|
Type of nozzle of water spray rod
|
High-pressure washing type
|
|
Dust falling system of sweeping
plate
|
Type
|
Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system
|
Sweeping
system
|
Diameter of sweeper
|
Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted.
|
Speed of sweeping plate
|
Φ850mm
|
