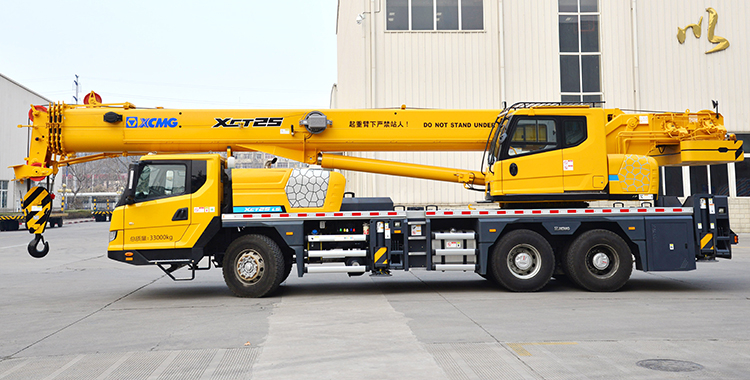

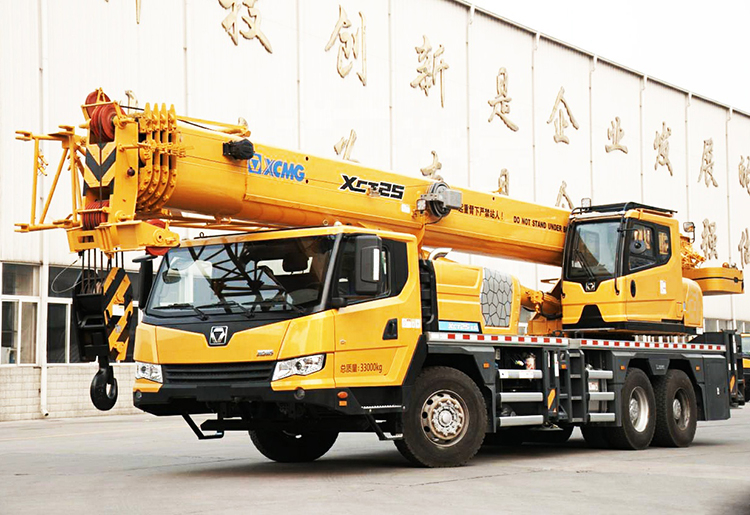

XCMG Manufacturer Mobile Crane XCT25L5 25 Ton Truck Cranes.



XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

1. Super lifting performance



* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively.

* Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.



2. New energy-saving hydraulic system



* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

* Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.



3. Low-speed large-torque power drive system



Resulting in perfect combination of high-power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
