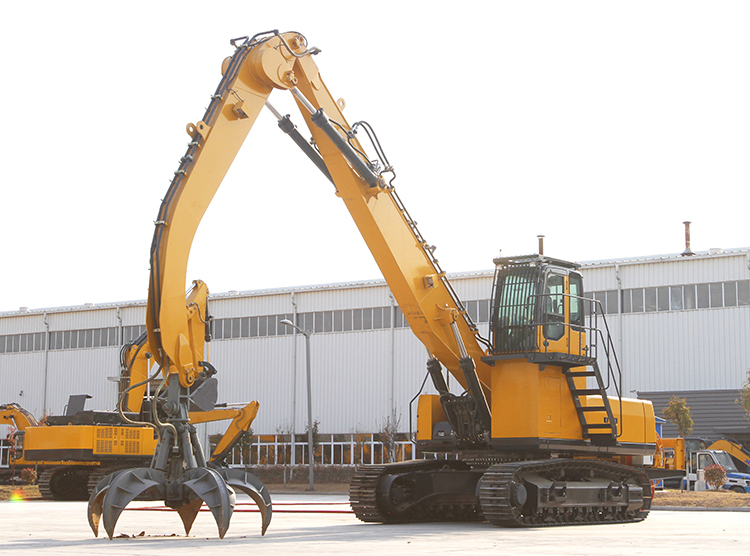

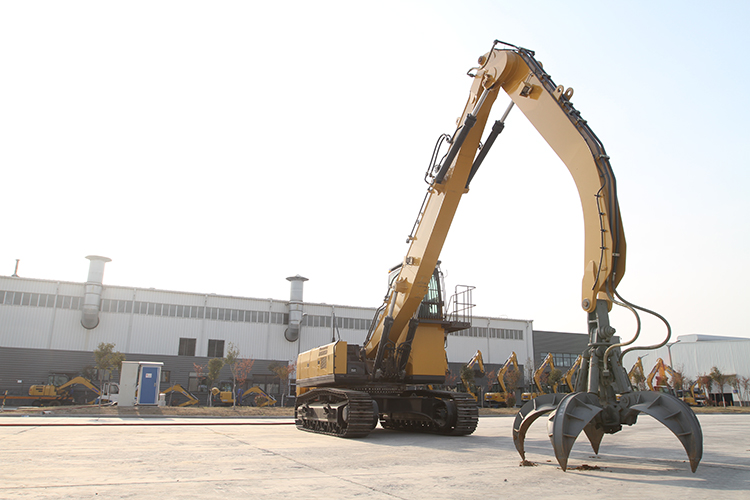

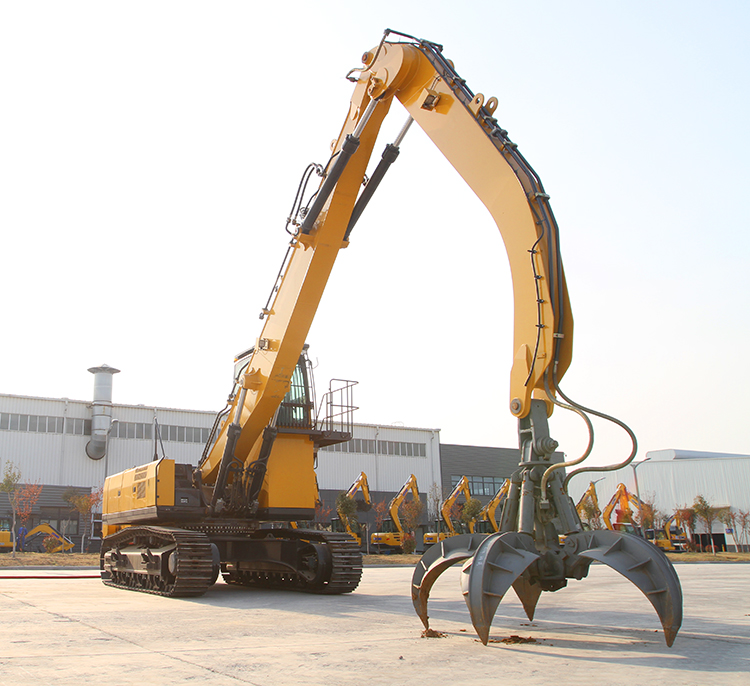

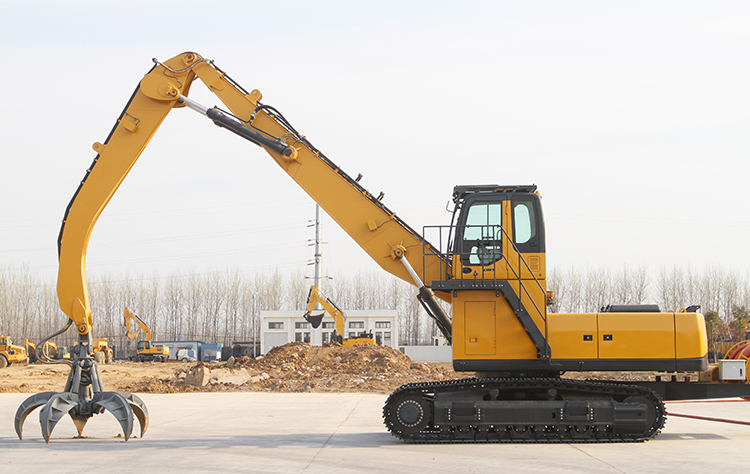

XCMG Manufacturer XE500EM 50 ton Crawler Excavator.

1.More energy saving and environmental protection


* Adopt domestic high-quality motor, the motor efficiency is up to 96%, meet IE3 (ultra high efficiency) standard, and achieve high efficiency and energy saving.

* The hydraulic oil radiator fan and air conditioning compressor drive power source are imported fine motors, which meet the IE2 standard. Only run when needed, more energy saving.

2.More efficient returns

* Compared with other transmission systems, the electric transmission system has higher efficiency and smaller heat loss, which can effectively improve work efficiency.

* The use of large-section straight-moving arms, gooseneck-type curved sticks, and swing-type front-end working tools improves the material handling range.

* Equipped with double-stick cylinder, it can effectively increase the working load.

3.Smarter control

Adopt electromechanical-intelligent intelligent control system, design special display, monitor the operating condition of the whole machine and alarm in time when the machine fails and needs maintenance. Each electrical circuit has a protection device, which can realize self-protection in emergency.

Model	UOM	Parameters
Operating weight	Kg	49000
Bucket capacity	m'	1
The number of poles	/	4
Voltage/ frequency	/	AC 380V/50Hz
Motor output power	kw/rpm	200/1488
Max. torque/ speed	N.m/rpm	1283/1488
Walking speed	km/h	2.5
Rotary speed	r/min	7.8
Climbing ability	°	35
Ground pressure	kPa	87
Max. traction force	kN	338
Main safety valve pressure	MPa	31.4/34.3
Walking system pressure	MPa	34.3
Rotary system pressure	MPa	28.4
Pilot system pressure	MPa	3.9
Hydraulic tank volume	L	430
Total length	mm	10965
Total width	mm	4210
Total height	mm	7950
Table width	mm	3075
Track length	mm	5353
Chassis total width	mm	3722
Track width	mm	600
Track wheelbase	mm	4292
Gauge	mm	2890
Counterweight clearance	mm	1324
Min. ground clearance	mm	555
Min. turning radius	mm	3705
Crawler height	mm	1198
Max. crawle height	mm	13000
Max. discharge height	mm	12585
Max. depth	mm	6500
Max. capture radius	mm	15110
Min. turning radius	mm	4000
Arm length	mm	8600
Bucket rod length	mm	6000
