China XCMG 10 ton 16m Reach Stacker for 20ft 40ft Container .

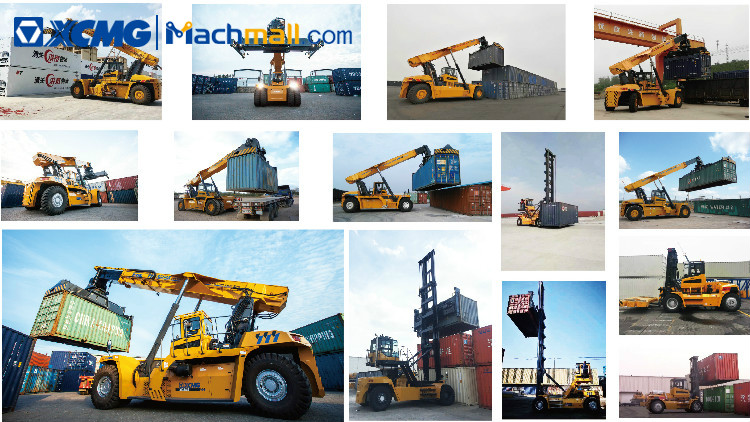

XCMG Reach Stackers:
XCMG reach stackers include K series (diesel) and E series (pure electric) reach stackers
XCMG K Series Reach Stackers:
XCMG's K series reach stacker features good safety, high degree of intelligence, comfortable operation, energy saving and environmental protection, and it meets the requirements of the high-end market.
Applicable Working Conditions of XCMG K Series Reach Stacker XCS1009K:
IOS 20ft~40ft standard container
Highlights of XCMG XCS1009K Reach Stacker:
1. Powered by Cummins engine and Dana gearbox
1. Parker hydraulic system, IFM controller hydraulic and electric control scheme to ensure quick operation
2. Luxurious configuration, reliable hardware and comfortable operation
XCMG XCS1009K Reach Stacker Optional Configurations:
Smart brakes, precise weighing, panoramic images, etc.
|
Applicable |
ISO 20ft 40ft 45ft standard container |
|
Basic configuration |
Engine：QSB6.7 |
|
Rated power/speed： 178kw/2000rpm |
|
|
Gearbox model:DANA TE14 |
|
|
Tyre model：14.00-24 |
|
|
Maximum static load：50t |
|
|
Spreader |
model：XDJ100 |
|
Rotation angle：0～65° |
|
|
Side shift distance：±800mm |
|
|
Angle of inclination：0° |
|
|
Weight：5t |
|
|
ISO 20ft 40ft 45ft standard container |
|
|
Boom assembly |
Max. Lifting Height：16.2m |
|
Angle of inclination：0～60° |
|
|
Main Technical Data |
Weight：39t |
|
Dimensions: 11000*6053/12185*4100mm |
|
|
Minimum ground clearance：265mm |
|
|
Front track：3284mm |
|
|
Rear track：2450mm |
|
|
Technical specifications |
Max. Lifting Capacity：10t |
|
Number of Stacking：6（9′6″/8′6″） |
|
|
Maximum lifting speed (no load/ full load)：450/400 mm/s |
|
|
Maximum falling speed (no load/full load)：400/400 mm/s |
|
|
Maximum travelling speed：28/25 km/h |
|
|
Gradeability:35/30% |
|
|
Minimum turning radius：6000mm |
|
|
20′ Aisle width A1:110000mm |
|
|
40′ Aisle width A1:13600mm |
