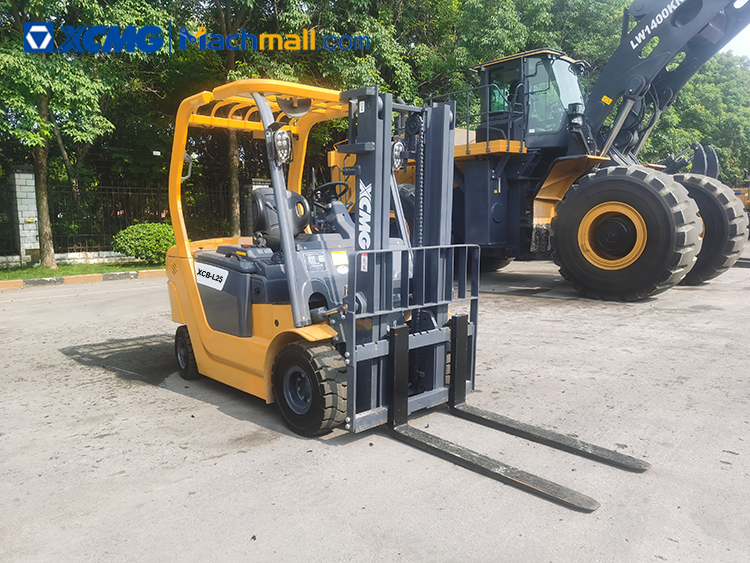

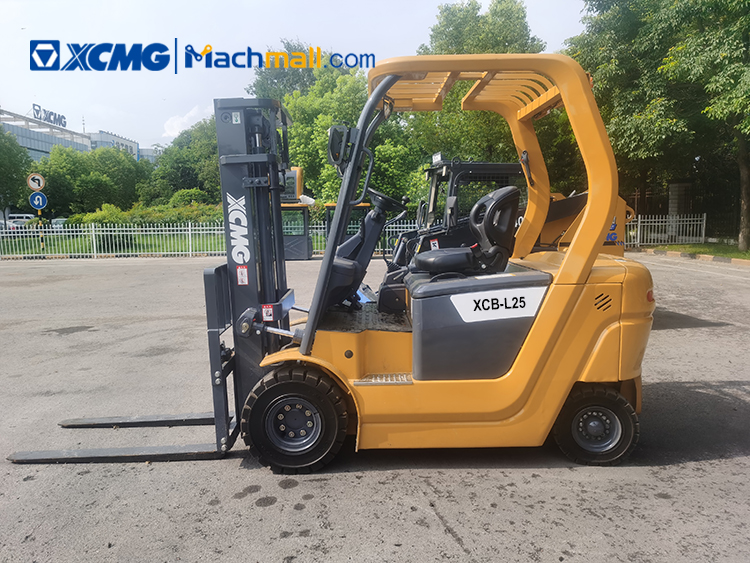

XCMG official 2.5 ton small electric forklift lithium XCB-L25.



XCMG electric forklift XCB-L25 better elevating speed with new safety mode is design for easy and convenient operation.



XCMG electric forklift XCB-L25 features the breakthrough to the limitations of the style design in forklift industry with its unique and brand new structural appearance of XCMG.



The application of XCMG XEC electrical control matching technology provides multiple modes of speed selection for various different working conditions.



Advantages and Features:



1. The application of XCMG XEC electrical control matching technology not only improves the smoothness of vehicle starting, acceleration and brake as well as the comfort of operation, but also enhance the protection of materials and personnel.



2. XCMG electric forklift XCB-L25 is also using the most advanced sixth genera­lion hydraulic cylinder to ensure the safety and reliability of operation.



3. Through accurate electrical controlled adjustment, the XCMG electric forklift XCB-L25 integrated drive axle can achieve the gradeability up to 17%.



4. The covering parts can be removable without any help of the tools, providing more space and convenience of maintenance.



5. XCMG electric forklift XCB-L25 is the first time in the industry configured with dual DOF (degree of freedom) steering control mechanism of XCMG independent intellectual property right to create a more oomfortable experience of operation and control.

Model
Unit
XCB-L25
Rated capacity
kg
2500
Load center distance
mm
500
Size
Max.lifting height
mm
3000
Free lifting height
mm
145
Mast tilt angle front/rear
°
6/12
Length fork excluded
mm
2435
Width
mm
1180
Mast height
mm
2015
Overhead guard height
mm
2185
Min.under clearance
mm
120
Wheel base
mm
1550
Min.Turning radius
mm
2150
Performance
Travelling speed loaded/unloaded
km/h
14/15
Lifting speed loaded/unloaded
mm/s
330/450
Gradeability loaded/unloaded
%
15/17
Motor&Battery
Motor
Drive motor power
kW
11
Pump motor power
kW
12
Battery
Voltage
V
48
Amphere
Ah
450/525/540
