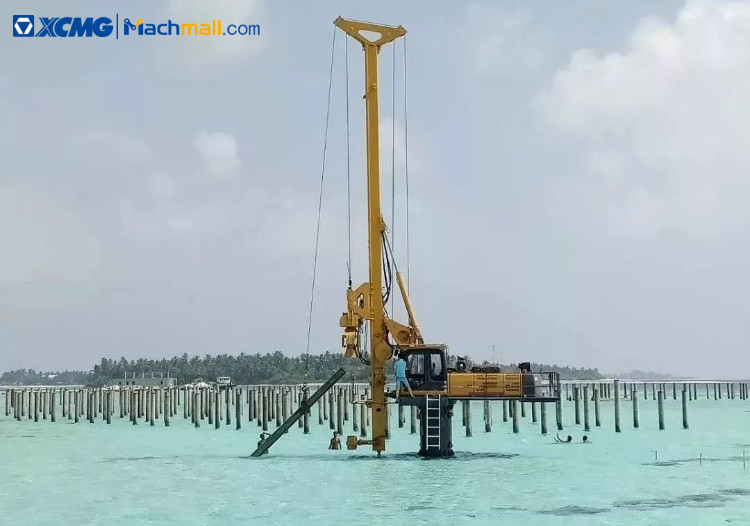

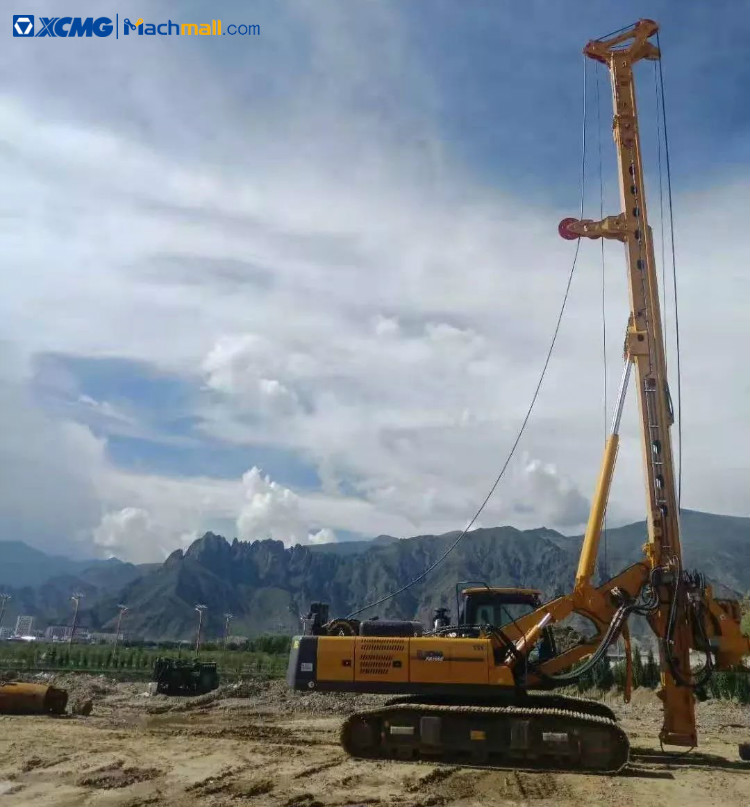

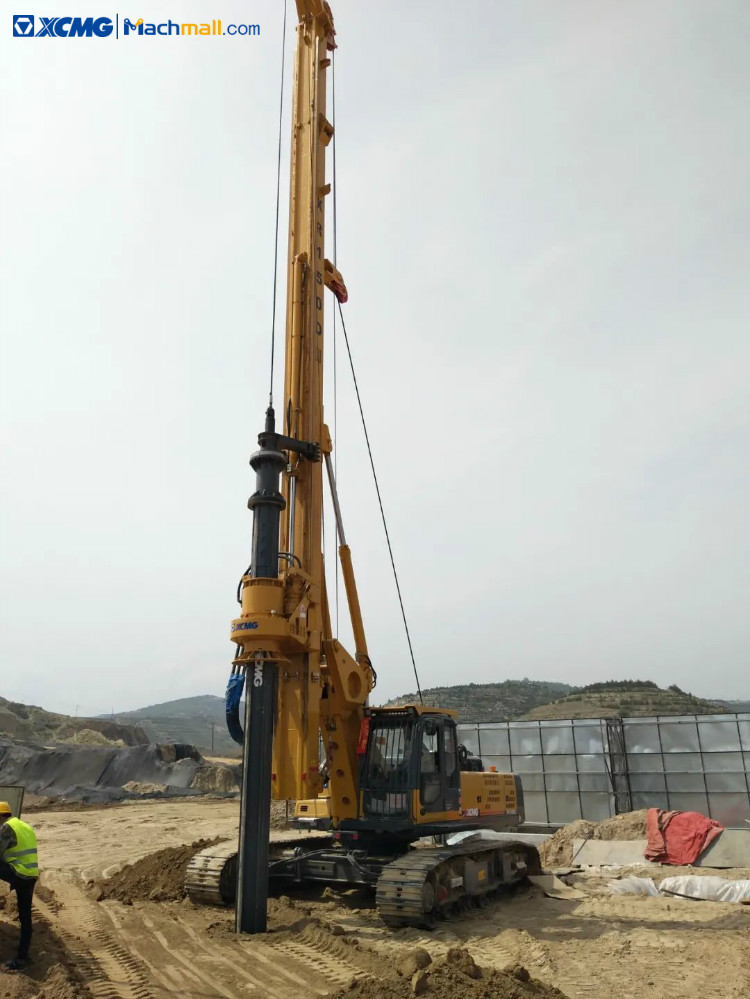

XCMG XR120D small piling rig machine 120kn 44m rotary drilling rig.
XCMG XR120D small piling rig machine 120kn 44m rotary drilling rig introduces the back-inclination large triangle structure with stationary luffing support, which is suitable for working conditions of low-tonnage drilling rig, improving the rigidity of working mechanism and enhancing the stability of whole drilling rig while achieving easy transportation;
1, The impor ted Kawasaki hydraulic parts can achieve reasonable powertrain matching and high construction efficiency;
2, The imported Cummins engine can minimize fuel consumption with the help of two optional accelerator control modes;
3, The working amplitude of auxiliary winch is increased, which can hoist light and small objects and save cost as well;
4, The main winch is designed with a high displacement motor, achieving more sensitive response and more reliable working and also getting rid of the difficulty in earth dumping for pile holes of small diameter;
5, The standard reducer joint can adjust drill rod combination according to actual conditions, thus effectively reducing fuel consumption and improving construction efficiency;
6, It introduces the proprietary intelligent control system, CAN bus and PLC, including automatic/manual adjustment of drilling mast verticality, depth automatic detection and display, intelligent fault diagnosis and control.
|
Project |
Unit |
Parameter |
|
Max.Drilling Diameter |
|
|
|
Uncased |
(mm) |
φ1300 |
|
Cased |
(mm) |
- |
|
Max.Drilling Depth |
(m) |
44 |
|
Dimension |
|
|
|
Working condition L × W × H |
(mm) |
7175×3400×16800 |
|
Transportation condition L × W × H |
(mm) |
12580×3400×3360 |
|
Overall Drilling Weight |
(t) |
40 |
|
Engine |
|
|
|
Model |
- |
CUMMINS B5.9-C |
|
Rated Power |
(kW) |
112/1950 |
|
Hydraulic System |
|
|
|
Working pressure |
(MPa) |
32 |
|
Rotary Drive |
|
|
|
Max. output torque |
(kN.m) |
120 |
|
Rotary speed |
(r/min) |
6~28 |
|
Spin off speed |
(r/min) |
- |
|
Pull-Down Cylinder |
|
|
|
Max.pull-down piston push |
(kN) |
120 |
|
Max.pull-down piston pull |
(kN) |
120 |
|
Max.pull-down piston stroke |
(mm) |
3500 |
|
Crowd Winch |
|
|
|
Max.pull-down piston push |
(kN) |
- |
|
Max.pull-down piston pull |
(kN) |
- |
|
Max. pull-down piston stroke |
(mm) |
- |
|
Main Winch |
|
|
|
Max.pulling force |
(kN) |
100 |
|
Max. single-rope speed |
(m/min) |
70 |
|
Diameter of the steel wire rope |
(mm) |
24 |
|
Auxiliary Winch |
|
|
|
Max. Pulling force |
(kN) |
45 |
|
Max. single-rope speed |
(m/min) |
70 |
|
Diameter of the steel wire rope |
(mm) |
16 |
|
Drilling mast |
|
|
|
Left/right inclination of mast |
(°) |
42432 |
|
Front inclination of mast |
(°) |
5 |
|
Rotary table slewing angle |
(°) |
360 |
|
Traveling |
|
|
|
Max. traveling speed |
(km/h) |
3.2 |
|
Max.grade ability |
(%) |
40 |
|
Crawler |
|
|
|
Track shoe width |
(mm) |
700 |
|
Distance between tracks |
(mm) |
3400 |
|
The length of crawler |
(mm) |
3650 |
|
Average ground pressure |
(kPa) |
73.6 |
