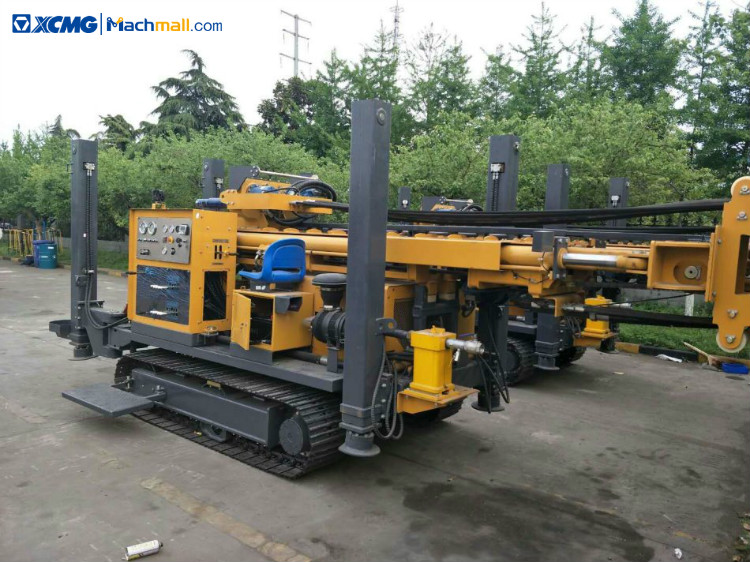

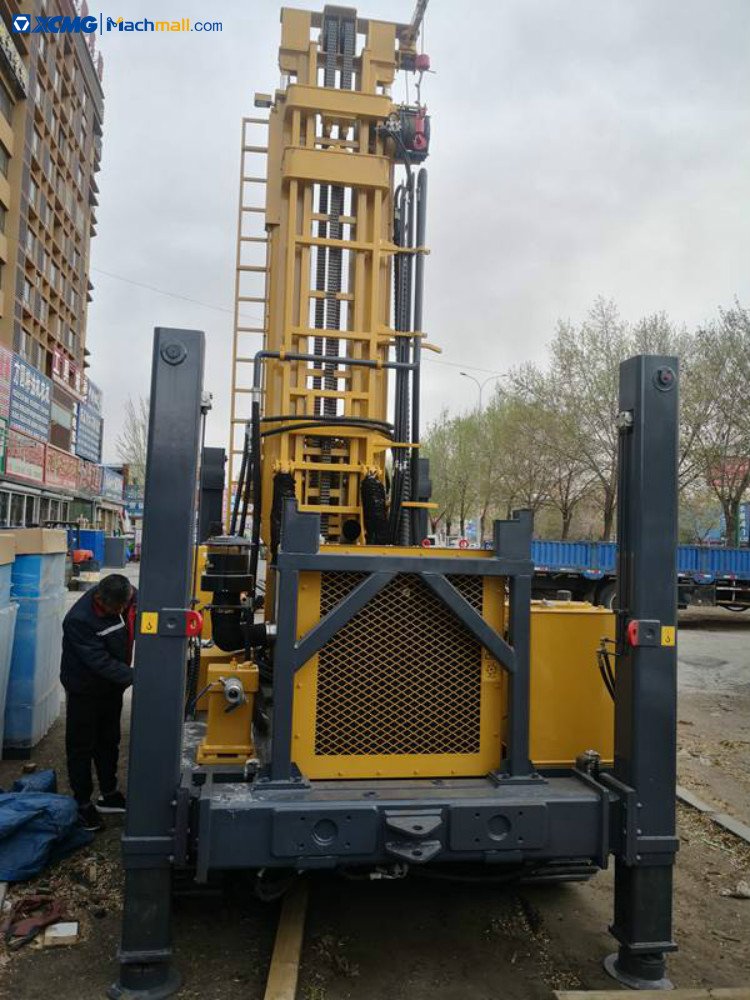

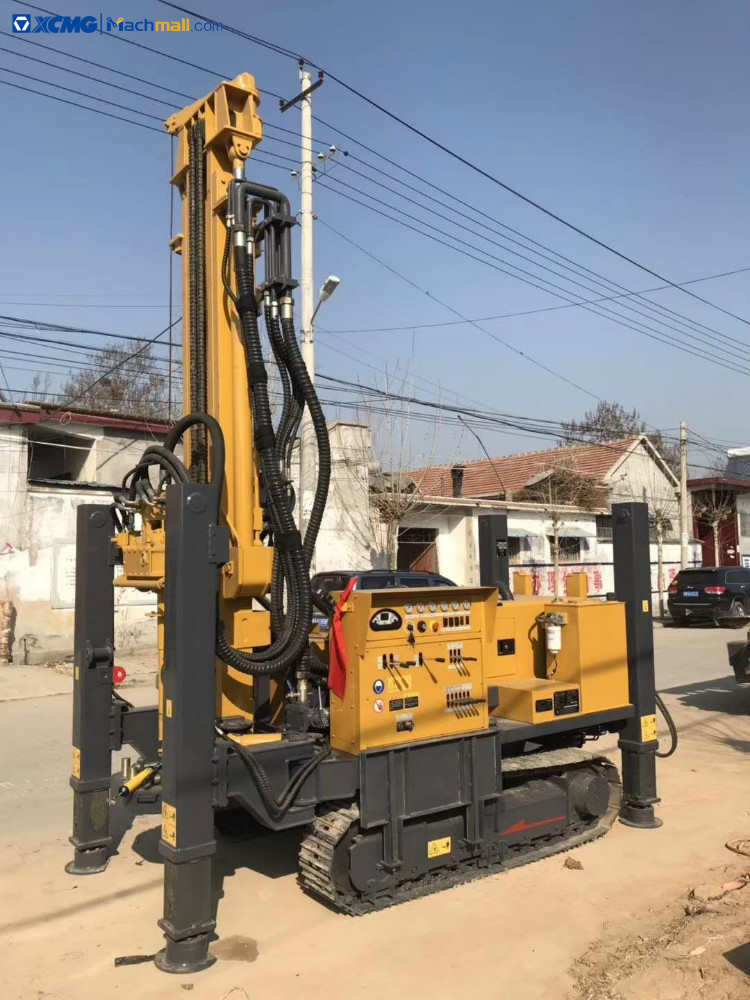

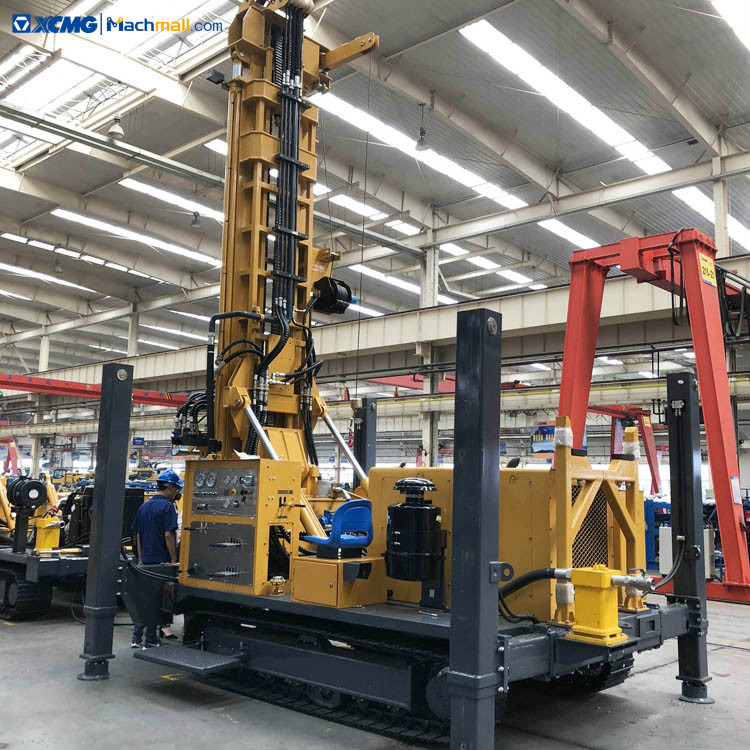

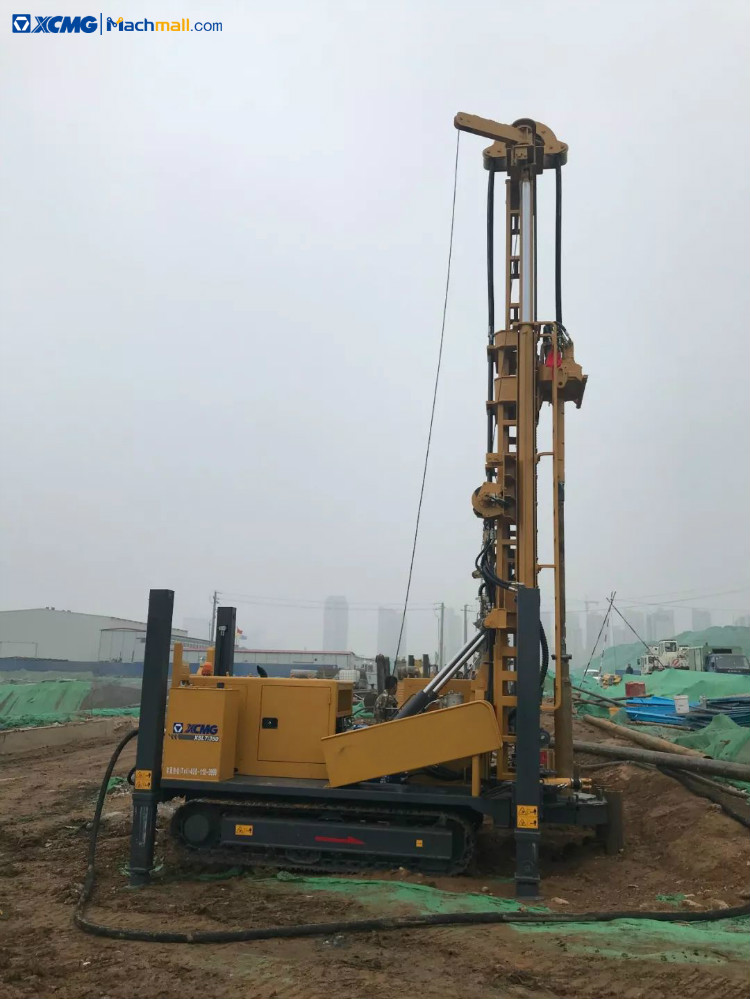

XCMG 500 meter deep hydraulic water well drilling rig equipment.

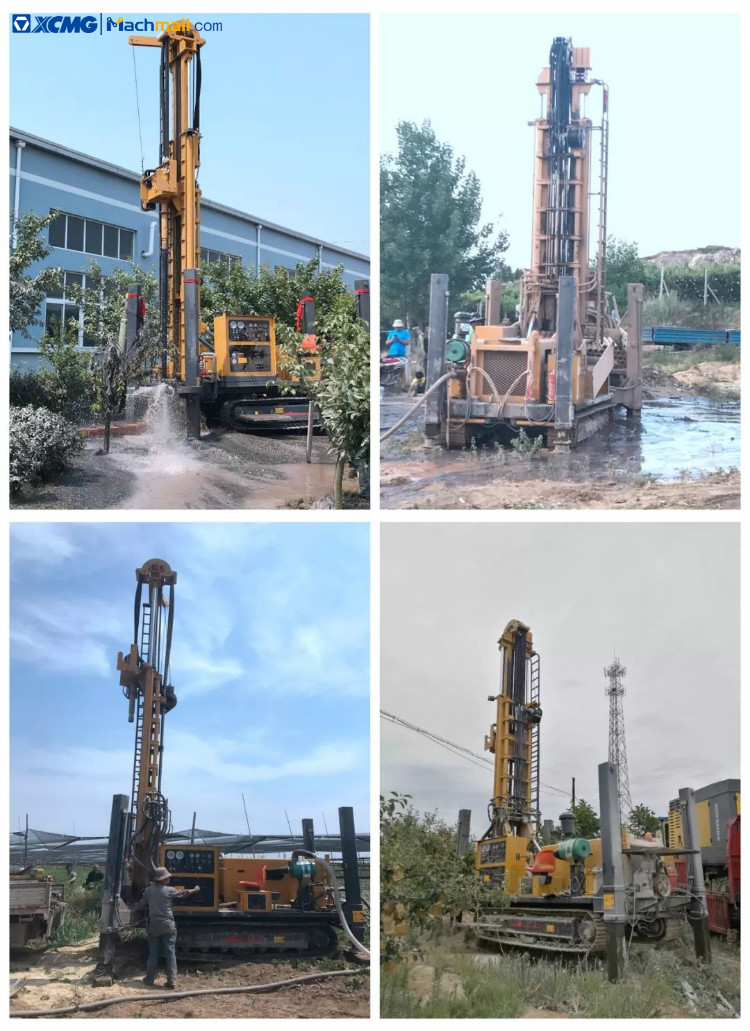

XCMG 500 meter deep hydraulic water well drilling rig equipment is a full hydraulic system and top drive Deep Well Drilling Rig, it's mainly used to water wells, monitoring well, grouting hole, air conditioner hole(geotherm), coalbed methane wells, it's also used to miniature pile, the place of emergency rescue.
XCMG water well drilling rig XSL5/260 is suitable for various construction technologies such as air DTH hammer and mud drilling, and it is highly prized for its drilling speed and good performance.
water well drilling rig XSL5/260 main introduction:
1. Cummins Chinese III-stage engine is use to the drilling rig
Electronic-controlled injection system, lower fuel consumption, more green environmental protection.
Electronic control technology is used to reduce the phenomenon of touring cars,speed change,white smoke.
Engine failure codes can be displayed automatically, easy maintenance.
2. Mature and reliable full hydraulic system power unit
Large capacity bearings are used to the principal axis, larger capacity, higher precision of the drill hole.
Multiple sets of seal design are used to guarantee the seal ability of the principal axis.
XCMG know-how gas faucet seal technology works well, offers longer service life and easier maintenance as well.

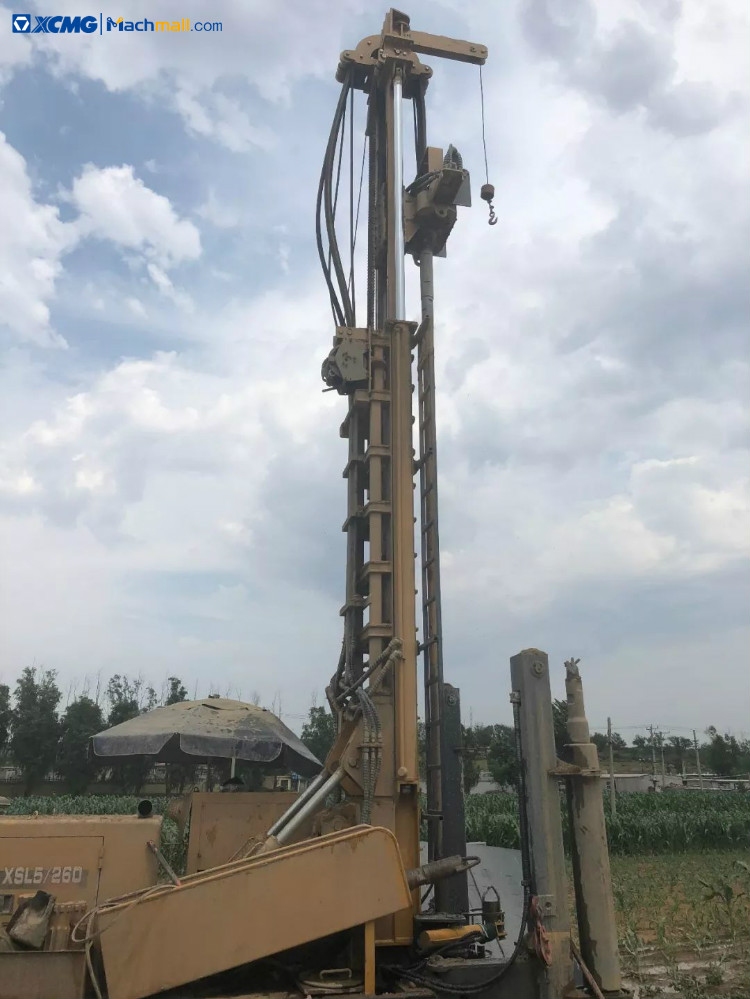

3. Large-stroke and retractable mast
Large-stroke design can satisfy the need of 6m casing pipe.
Adjustable-interval sliding blocks are used between the inside and outside mast, which can reduced wear and maintenance costs effectively.
|
Model |
|
Units |
Number |
|
Drilling capacity |
Max drilling depth |
m |
500 |
|
|
Max drilling diameter |
mm |
Φ400 |
|
Engine |
Model |
/ |
QSB5.9-C150 |
|
|
Rated power |
kW |
113 |
|
|
Rated speed |
r/min |
2200 |
|
Feeding system |
Lifting force |
kN |
260 |
|
|
Speed of fast lifting |
m/min |
30 |
|
|
Crowd force |
kN |
120 |
|
|
Speed of fast putting down |
m/min |
60 |
|
|
Power unit Stroke |
mm |
6600 |
|
Power unit |
Torque |
Nm |
9200/4600 |
|
|
Rotating speed |
r/min |
190/106 |
|
|
Principal axis Hole diameter |
mm |
Φ55 |
|
Tool winch |
Lifting force |
kN |
15 |
|
system |
Travel speed |
km/h |
2 |
|
|
Grade ability |
% |
21 |
|
|
Legs stroke |
mm |
1600 |
|
Drilling rods diameter |
/ |
mm |
Φ89/Φ102/Φ114 |
|
Dimension |
L*W*H |
mm |
6150*2100* 2630 |
|
Work dimension |
L*W*H |
mm |
4400*3200* 9300 |
|
Overall weight |
/ |
t |
12.5 |
