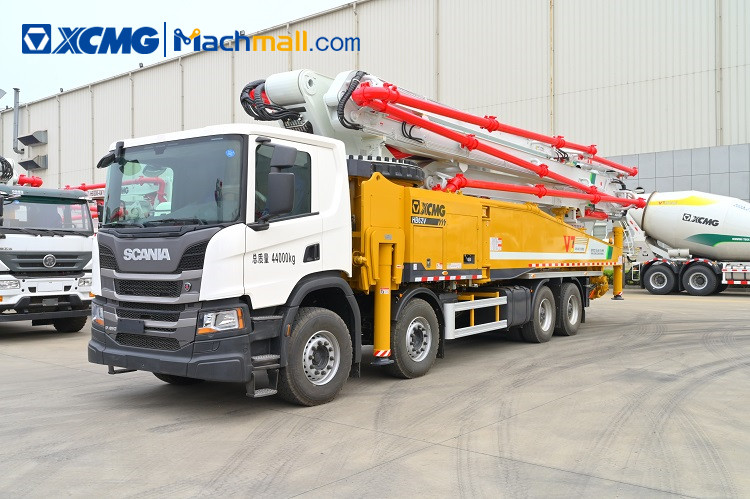

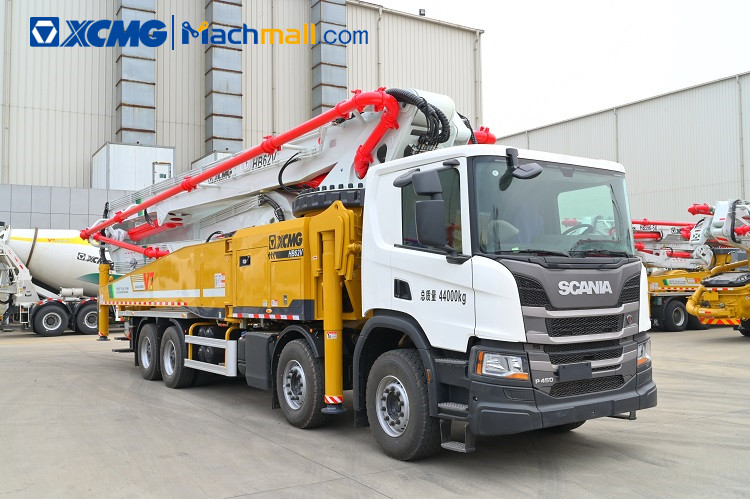

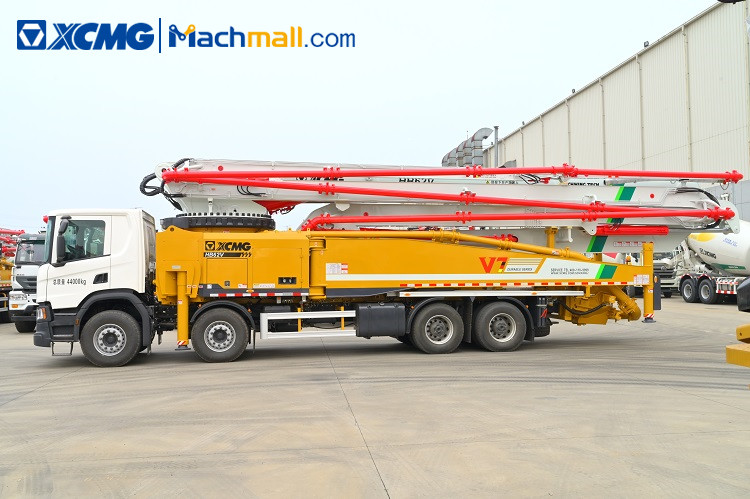

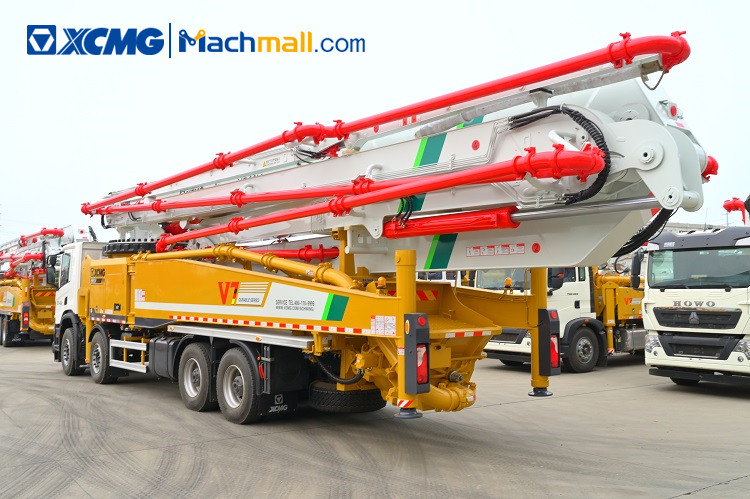

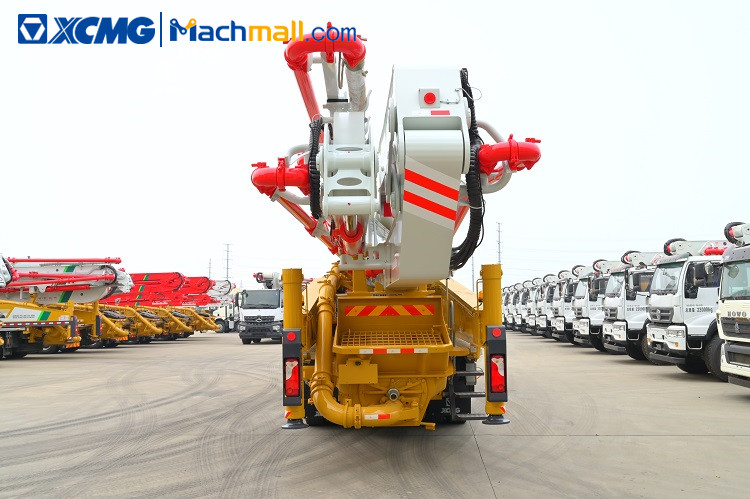

XCMG schwing concrete pumps HB62V with Scania Chassis.
XCMG schwing concrete pumps HB62V truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
In the design, the mercedes Scania chassis is adopted, following the principle of "high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB62V |
|
Overall |
Outline dimension |
mm |
15370*2530 *4000 |
|
|
Overall weight |
kg |
43870 |
|
Chassis |
Brand |
/ |
SCANIA |
|
|
Model |
/ |
P 450 8*4 |
|
|
Wheelbase |
mm |
1990+4360 +1350 |
|
|
Max.power |
kW |
331 |
|
|
Emission standard |
/ |
China VI |
|
Pumping system |
Theoretical |
m3/h |
180 |
|
|
Concrete pumping pressure |
MPa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22~24 |
|
|
Delivery cylinder diameter * stroke |
mm |
φ260*2200 |
|
Placing boom |
Reach height |
m |
61.1 |
|
|
Reach depth |
m |
43.6 |
|
|
Slewing radius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer |
/ |
Rock valve/S valve |
