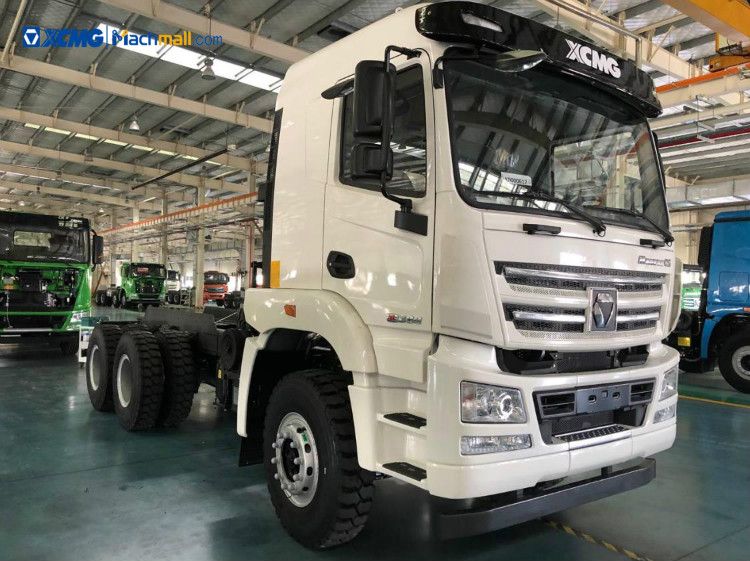

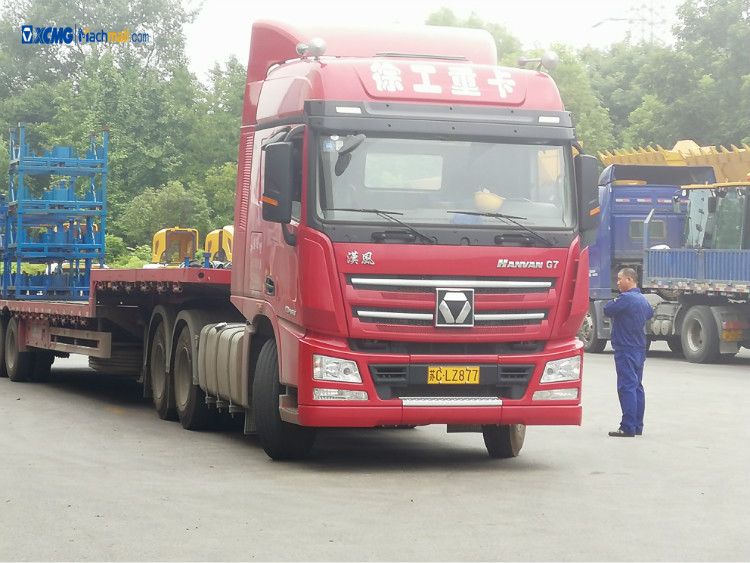

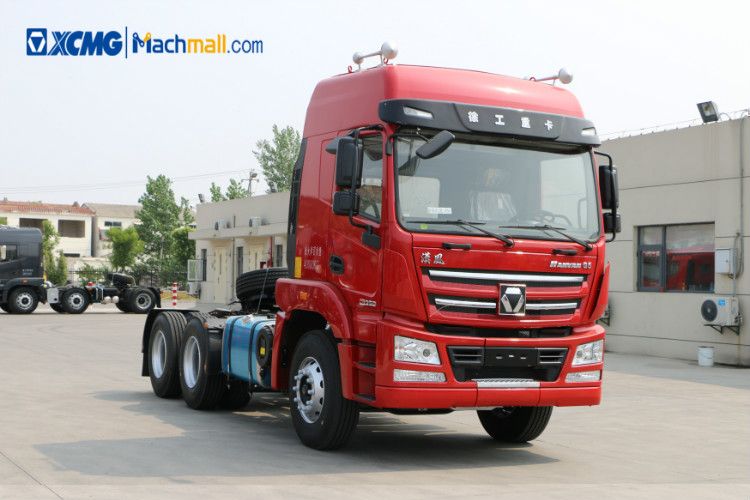

XCMG NXG4250D5NC 230hp 6x4 Tractor Trucks.
XCMG HANVAN 6*4 tractor truck is mainly suitable for long-haul high-speed logistics, is more reliable and safer, more comfortable, more economical of a new generation of high-end heavy tractor truck.
XCMG 6x4 tractor truck NXG4250D5NC can be widely used to transport the following goods···
1, daily industrial products: cold chain, valuables, tobacco, express delivery.
2, daily industrial products: food, fruit, wood, stores, department stores, container, bulk.
3, iron powder, steel, iron powder, iron ore, finished product profile.
4, bulk tank: cement, lime, fly ash and other industrial powder.
5, dangerous goods: oil, natural gas, chemical liquid.
6, ballast, sand, sand and gravel.
|
|
Vehicle Model |
NXG4250D5NC |
|
|
Mass parameter |
Curb weight |
8429kg |
|
|
|
GCW |
60000 kg (With Trailer） |
|
|
|
Traction Mass |
50000kg |
|
|
Performances |
Max Speed |
85km/h（Fully loaded） |
|
|
|
Min. turning diameter |
14.8 m |
|
|
|
Grade ability |
≥35% |
|
|
|
Hill-hold ability |
≥20% |
|
|
|
Fuel Tank |
600L |
|
|
Dimensions |
Overall dimensions |
Length |
6845mm |
|
|
|
Width |
2550mm |
|
|
|
Height |
3745mm |
|
|
Wheelbase |
|
3300+1350mm |
|
|
Wheel tread |
Front |
2048mm |
|
|
|
Rear |
1864mm |
|
|
Min. Clearance |
234mm |
|
|
|
Approach angle |
18° |
|
|
|
Departure angle |
46° |
|
|
|
Front overhang |
1500mm |
|
|
|
Rear overhang |
710mm |
|
|
|
Height of traction base from the ground (no load) |
1270±20mm |
|
|

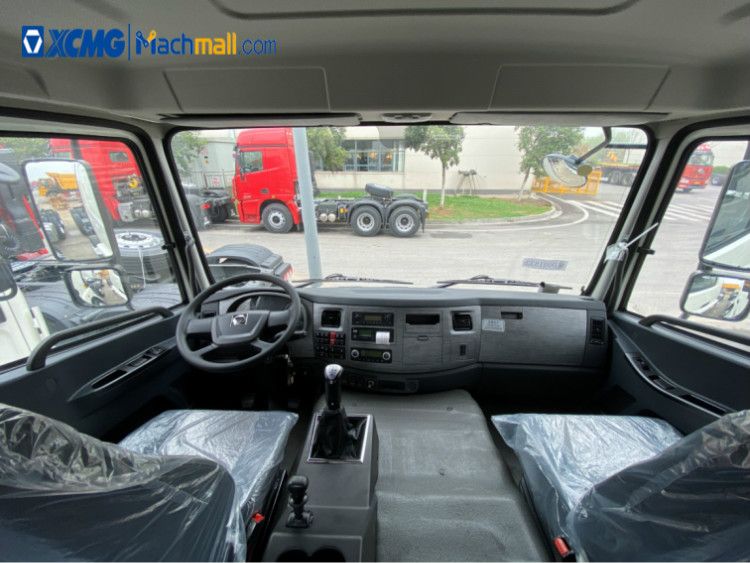

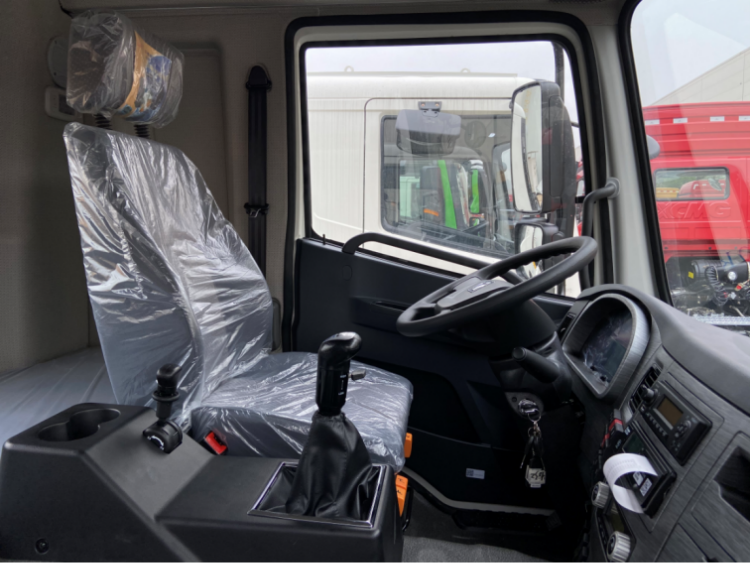

Cab |
Model |
G5LH |
|
|
|
Passengers |
2 |
|
|
Engine |
Model |
WP12.430E50 |
|
|
|
Displacement |
11.596L |
|
|
|
Output power |
316kW |
|
|
|
Mix torque speed |
2060N·m |
|
|
Clutch |
Model |
Pull type diaphragm spring clutch |
|
|
|
Operation |
Hydraulic manual |
|
|
Transmission |
Model |
12JSD200TA-B |
|
|
|
Operation |
Flexible shaft |
|
|
|
Forward ratio |
12.10/9.41/7.31/5.71/ 4.46/3.48/2.71/2.11/ 1.64/1.28/1.00/0.78 |
|
|
|
Reverse ratio |
11.56/2.59 |
|
|
|
Model |
11.5T |
|
|
Driven axle |
Ratio |
3.7/4.111 |
|
|
|
Brake type |
Drum type |
|
|
|
Differential lock |
Differential lock between axles and wheels |
|
|
Front axle |
Capacity |
5.5T |
|
|
|
Brake type |
Drum type |
|
|
Wheel |
Rim |
22.5×9.00 |
|
|
|
Tire |
12R22.5-18PR |
|
|
|
Type |
Rectangular beam |
|
|
|
Main beam |
280×90×8 mm |
|
|
|
Auxiliary beam |
264×70×4 mm |
|
|
|
Width of chassis structure |
865 mm |
|
|
Suspension |
Front |
Type |
Few leaf springs |
|
|
|
Amount of spring plate |
2，3 |
|
|
Rear |
Type |
Multi-spring |
|
|
|
Amount of spring plate |
3，4 |
|
Steering |
Steering type |
Circulating ball type hydraulic power |
|
|
|
Ratio |
23.27 |
|
|
|
Max pressure of pump |
17MPa |
|
|
Brake |
Rated working pressure |
1MPa |
|
|
|
Driving brake |
Dual circuit pneumatic braking |
|
|
|
Parking brake |
Spring energy storage air brake |
|
|
|
Assistant brake |
Engine exhaust brake |
|
