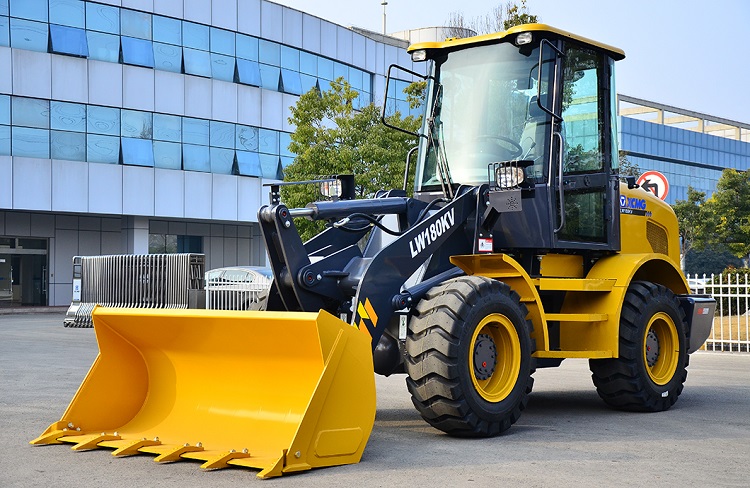

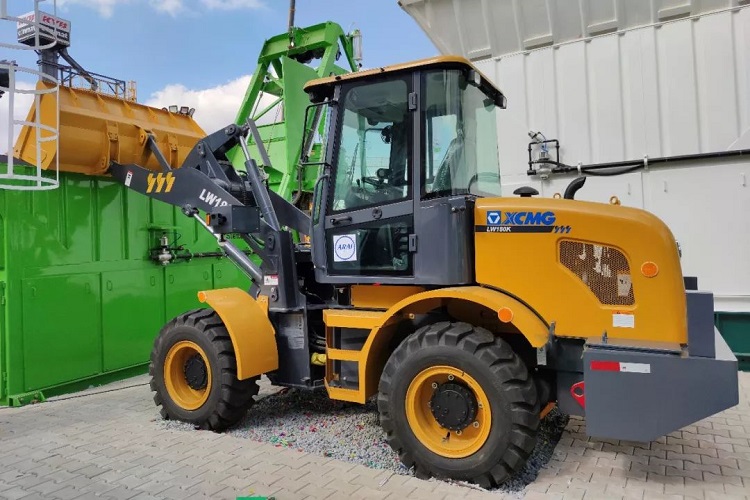

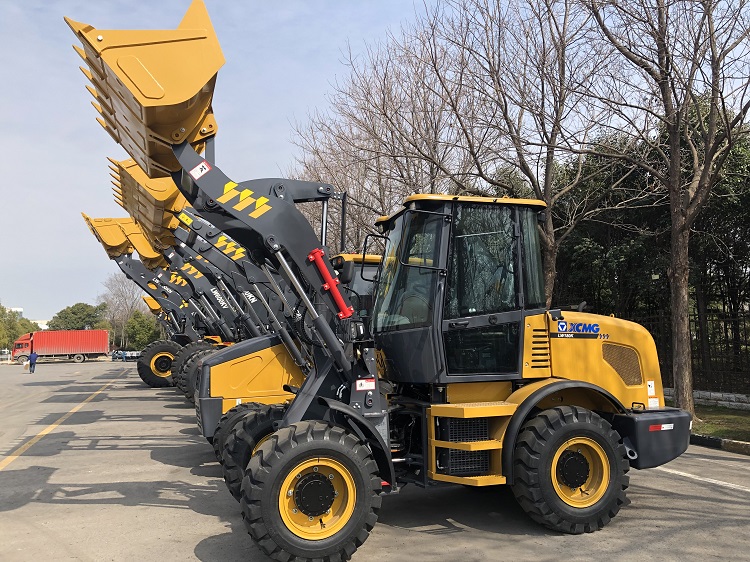

XCMG 1 ton front wheel loader LW180K small wheel loader.



1, The streamline exterior, large-view glasses, and arc ballast feature beautiful modeling and are in line with international mainstream level.

2, The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.

3, The engineering version leading Yuchai engine for small-sized loaders features China-II emission compliance.

4, The special high capacity torque converter ensures the maximum utilization of engine power.

5, The super-large luxury cab (1,550mm in longitudinal length) features large space and good visibility.

Description

Unit

Parameter value

Rated operating load

kg

1800

Bucket capacity

0.9~1.1

Machine weight

kg

6200

Dump clearance at maximum lift

mm

2650~2970

Reach at maximum lift

mm

900~1000

Wheel base

mm

2300

Tread

mm

1550

Max.breakout force

kN

≥58

Hydraulic cycle time-raise

s

5

Total hydraulic cycle time

s

≤8.5

Min. turning radius over tyres

mm

4470

Articulation angle

°

35

Gradeability

°

28

Tyre size

16/70-20

Overall machine dimension L×W×H

mm

5980×2060×2950

Model

YC4D80-T20

Rated Power/Speed

kW/rpm

58/2400
