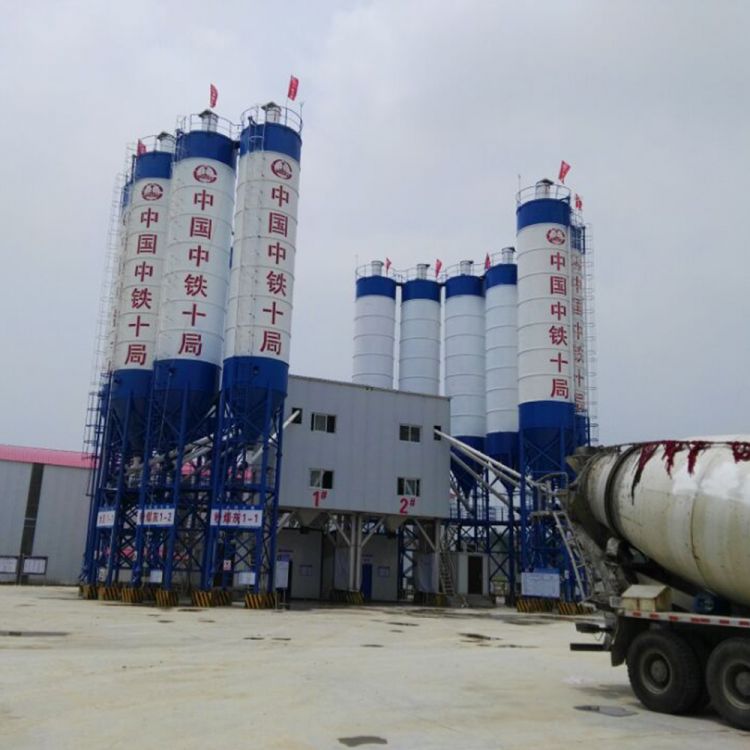

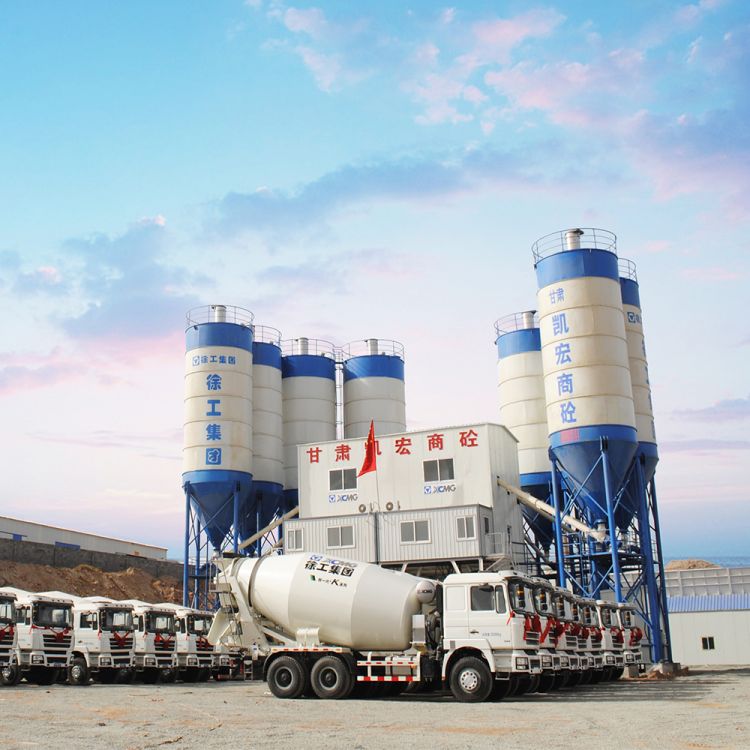

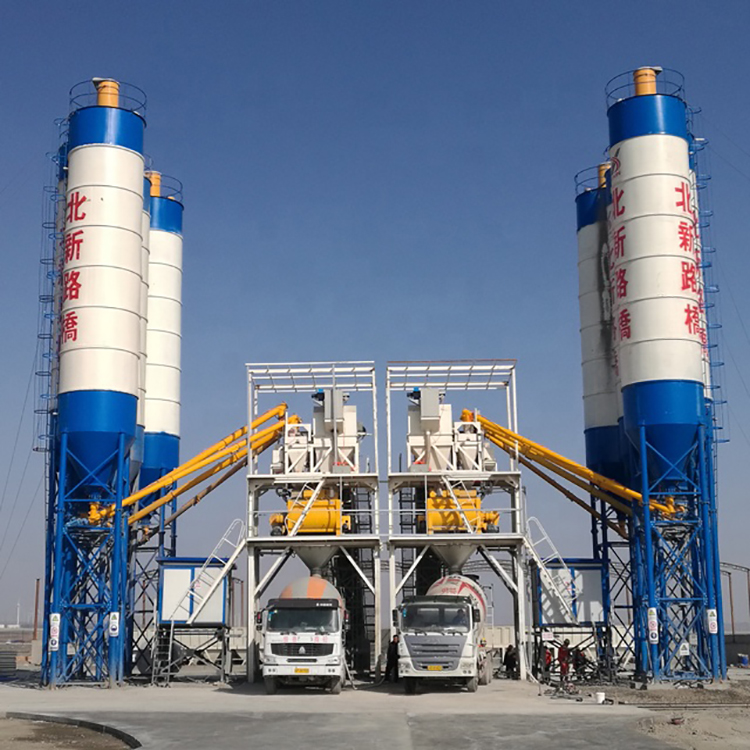

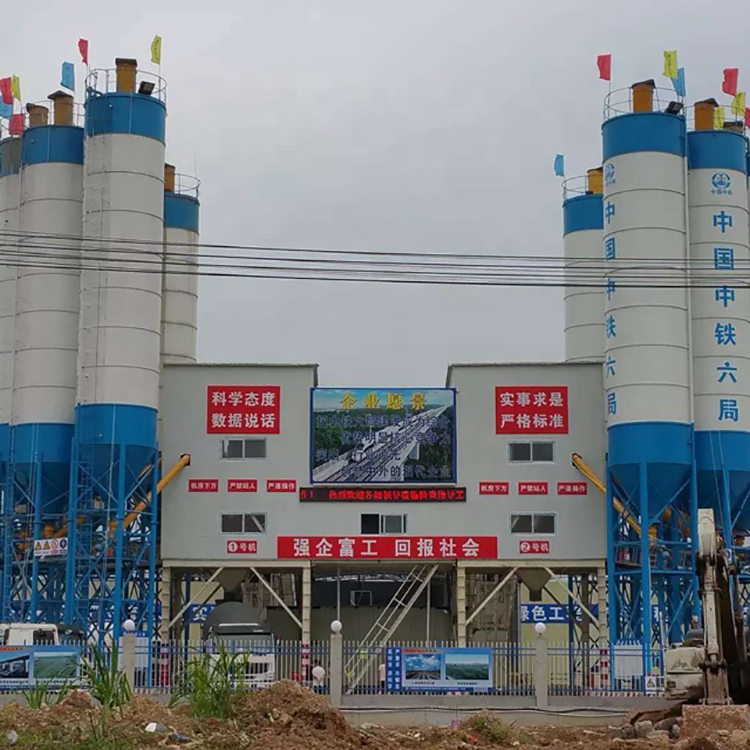

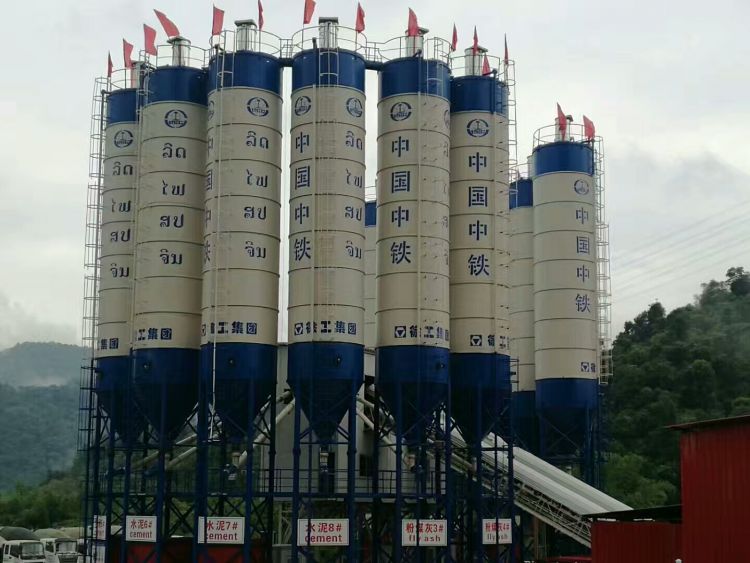

XCMG Official Cement Plant Equipment HZS270VD China Design Concrete Batch Plant.

The integrated design of HZS series concrete batching plant has the advantages of high efficiency, energy saving and environmental protection, accurate measurement, intelligent control, convenient operation, stability and reliability, and high cost performance.

Advantages and highlights:

1.More Efficient Production

Realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Providing more reliable operation and better continuous production.

2.More Uniform Agitating

Features faster material cycle, more violent countercurrent and more uniform agitating. Greatly reducing cleaning intensity of labor.

3.Cutting-edge Environmental-care

XCMG not only provides conventional environmental schemes, but commits itself to the application and development of cutting-edge environmental technologies.

4.More Comprehensive Customization

All-around and 3D environmental measures are taken to effectively control the pollution. Realize all-around control of people, vehicles, pumps and plants.

Model	Unit	HZS270VD
Theoretical production rate	m³/h	270
Discharge height	m	4
Mixer type	/	JS4500
Mixer power	kW	2×75
Nominal volume of mixer	L	4500
Production period	S	60
Max. diameter of aggregate	mm	≤80
Volume of aggregate silo	m³	5×40
Volume of powder silo (optional)	t	6×300
Capability of batching plant	L/Silo	7200
Delivery capacity of inclined belt conveyor	t/h	900
Productivity of cement spiral conveyer	t/h	170
Productivity of flyash spiral conveyor	t/h	90
Standard installed capacity	kW	290
Gravel weighing range and accuracy	kg	(1620～5400)±2% kg
Sand weighing range and accuracy	kg	(1200～4050)±2% kg
Weighing range and accuracy of cement	kg	(810～2700)±1% kg
Admixture weighing range and accuracy	kg	(360～1200)±1% kg
Weighing range and accuracy of water	kg	(360～1200)±1% kg
Weighing range and accuracy of additive	kg	(30～100)±1% kg
