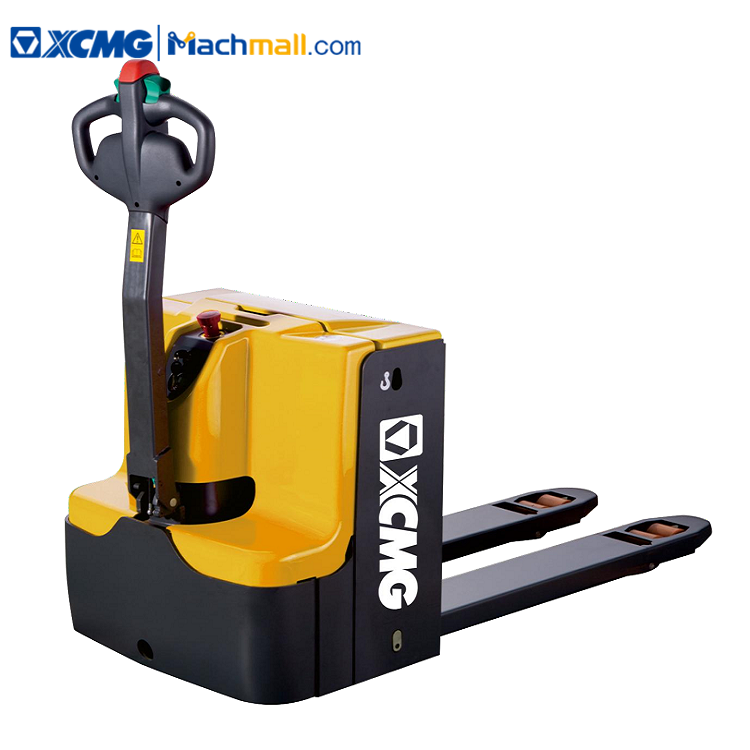

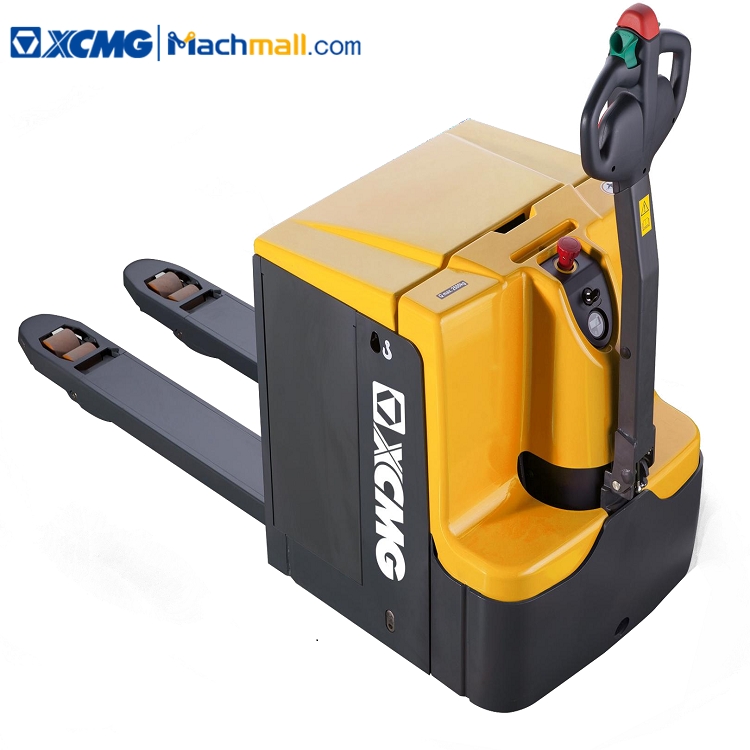

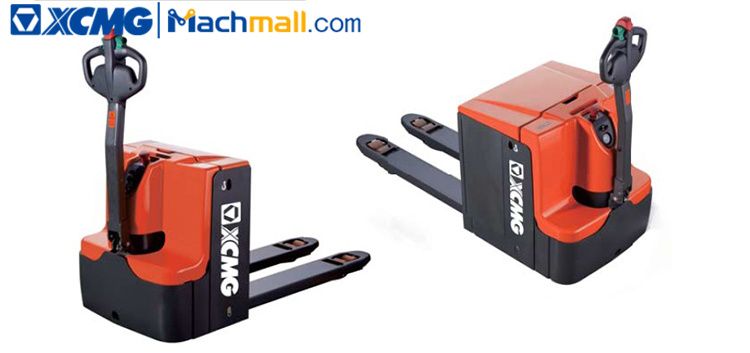

XCMG official electric pallet truck XCC-PW20 2 ton walkie type.
The powerful imported maintenance -free AC motor works with imported transmission, brake, and drive wheels to realize higher effciency and reliability and reduce the operating cost of XCMG official 2 ton walkie type electric pallet truck XCC-PW20. No matter the steady acceler- ation or the haste acceleration, the AC drive system can play the best performance.
The long handle design enables the operator to maintain a certain safe distance during high efficiency operations and incorporates smaller operating force than the short handle design.
The IP54 protection grade of the controllers can effectively withstand the dusts and splashing water drops. The vertical- ly arranged AC drive motor and brake system is resistant to the influences under severe working environments.
The optional side-pull battery can allow the quick replace- ment with the use of tow tractor to meet the multi-shift operation needs of the operator.
|
Characteristics |
1.1 |
Model |
Unit |
XCC -PW20 |
|
|
1.2 |
Drive mode |
|
Electric |
|
|
1.3 |
Operating mo de (Manual, walkie, stand -on, sit -on, |
|
Walkie type |
|
|
1.4 |
Rated load capacity |
Q(t) |
2 |
|
|
1.5 |
Center distance of load |
c(mm) |
600 |
|
|
1.6 |
Front overhang |
x(mm) |
892 |
|
|
1.7 |
Wheelbase |
y(mm) |
1327 |
|
Weights |
2.1 |
Dead weight with battery |
kg |
535 |
|
|
2.2 |
Full -load wheel load, drive/load -carrying end |
kg |
855/1680 |
|
|
2.3 |
No -load wheel load, drive/load -carrying end |
kg |
415/120 |
|
Wheels and chassis |
3.1 |
Tires (Solid rubber tires, hyperelastic tires, air |
|
Polyurethane wheels |
|
|
3.2 |
Front wheel specification |
Øxw(mm) |
Ø230×70 |
|
|
3.3 |
Rear wheel specification |
Øxw(mm) |
Ø84×84 |
|
|
3.4 |
Stabilizing wheel size |
Øxw(mm) |
Ø100×40 |
|
|
3.5 |
Number of wheels, front/rear (X= drive wheel) |
|
1×+2/4 |
|
|
3.6 |
Front wheel tread |
b10(mm) |
510 |
|
|
3.7 |
Rear wheel tread |
b11(mm) |
337/512 |
|
Basic dimensions |
4.1 |
Lifting height |
h3(mm) |
120 |
|
|
4.2 |
Handle height during operations |
h14(mm) |
820/1335 |
|
|
4.3 |
Height with forks lowered |
h13(mm) |
85 |
|
|
4.4 |
Overall length |
l1(mm) |
1735 |
|
|
4.5 |
Body length |
l2(mm) |
595 |
|
|
4.6 |
Overall width |
b1(mm) |
729 |
|
|
4.7 |
Fork size |
s/e/l(mm) |
60/17 3/1150 |
|
|
4.8 |
Outer width of forks |
b5(mm) |
540/685 |
|
|
4.9 |
Minimum ground clearance |
m2(mm) |
25 |
|
|
4.10 |
Working aisle width for pallets 1,000×1,200 |
Ast(mm) |
2315 |
|
|
4.11 |
Working aisl e width pallets 800×1,200 lengthwise |
Ast(mm) |
2205 |
|
|
4.12 |
Turning radius |
Wa(mm) |
1490 |
|
Performances |
5.1 |
Traveling speed, full - load/no - load |
km/h |
5.7/6.0 |
|
|
5.2 |
Lifting speed, Full - load/no - load |
mm/s |
22/30 |
|
|
5.3 |
L owering speed, full - load/no - load |
mm/s |
35/35 |
|
|
5.4 |
Maximum gradeability, full - load/no - load |
% |
8/15 |
|
|
5.5 |
Service brake |
|
Electromagnetic brake |
|
Motor |
6.1 |
Drive motor power |
kW |
1.3 |
|
|
6.2 |
Lifting motor power |
kW |
0.8 |
|
|
6.3 |
Battery, as per DIN 43531/35/36 A, B , C, no standard |
|
2PzS |
|
|
6.4 |
Battery voltage/capacity |
V/Ah |
210 |
|
|
6.5 |
Battery weight |
kg |
215 |
|
|
6.6 |
Energy consumption (VDI cycle) |
kWh/h |
0.39 |
|
Others |
7.1 |
Drive control mode |
|
AC speed control |
|
|
7.2 |
Driver’s parotic noise level, as per EN12053 dB(A) |
dB(A) |
69 |
