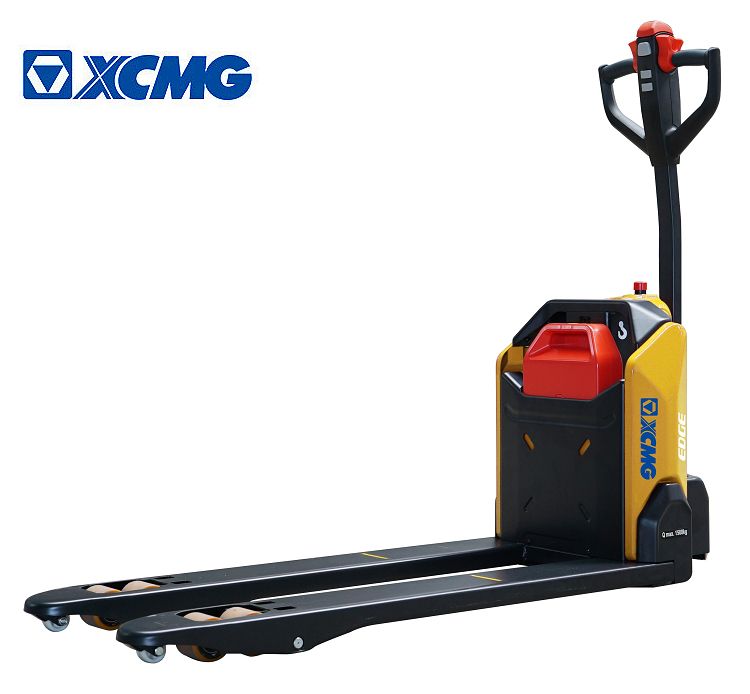

XCMG official 1.5 ton pallet truck XCC-LW15 multi-purpose lithium electric pallet trucks.

The XCC-LW15 perfectly combines the advantages of a manual and an electric truck, making it a high-quality truck for multiple USES. And it adopts the most cutting-edge concept design, and infuses the modular design concept, giving the truck a novel angular appearance, so its English name is EDGE. The Handle and training wheel can be removed quickly for easy use and maintenance.

Product Highlights:

1. Rugged full-protection drive cover design, which can fully protect the operator's feet.

2. Modular design, high degree of universalization of all-electric and semi-electric configuration parts.

3. Assembled front cover, convenient for maintenance and replacement of TV components.

4. Optional large-size floating steering wheels to improve vehicle stability.

5. The carrying wheel can be equipped with single wheel or double wheel.

6.There are various specifications of forks to choose from.

Character
Model			XCC-LW15
Rated capacity	Q	kg	1500
load center distance	C	mm	600
Power mode			电动
battery standard			/
Tyre type			聚胺酯轮(PU)
Size
Max.lifting height	h3	mm	115
Handel height	h14	mm	700/1160
Min.under clearance	h13	mm	80
Length	l1	mm	1530
Length to face of forks	l2	mm	380
Width	b1	mm	540
Fork dimensions	s/e/l	mm	47/160/1150
Distance between fork-arms	b5	mm	540/685
Wheel base	y	mm	1185
Additional wheels dimensions	xw	mm	80x30
Tread rear	b11	mm	380
Min.Turning radius	Wa	mm	1330
Performance
Travelling speed loaded/unloaded		km/h	4.6/4.8
Lift speed,loaded/unloaded		m/s	0.020/0.025
Lowering speed,loaded/unloaded		m/s	0.05/0.04
Gradeability,loaded/unloaded		%	4.0/16.0
Braking method			电磁制动
Motor&Battery
Lift motor power		kw	0.5
Drive motor power		kw	0.65
Voltage		V	24
Amphere		Ah	20/30/36
