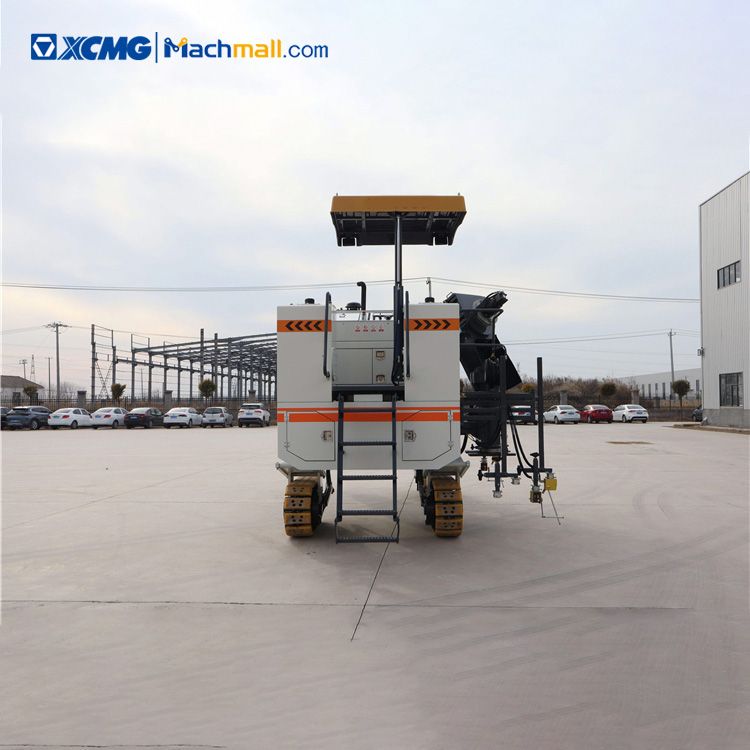

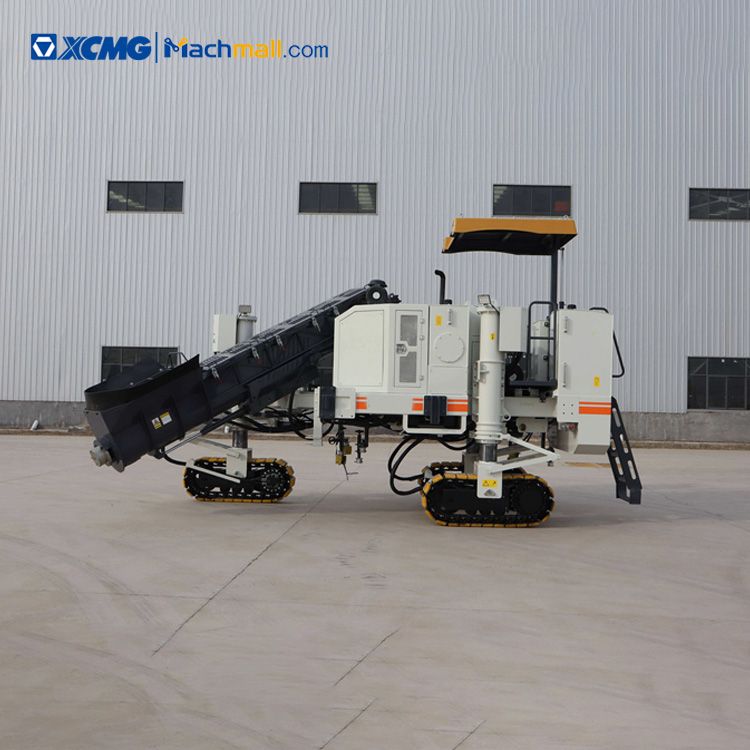

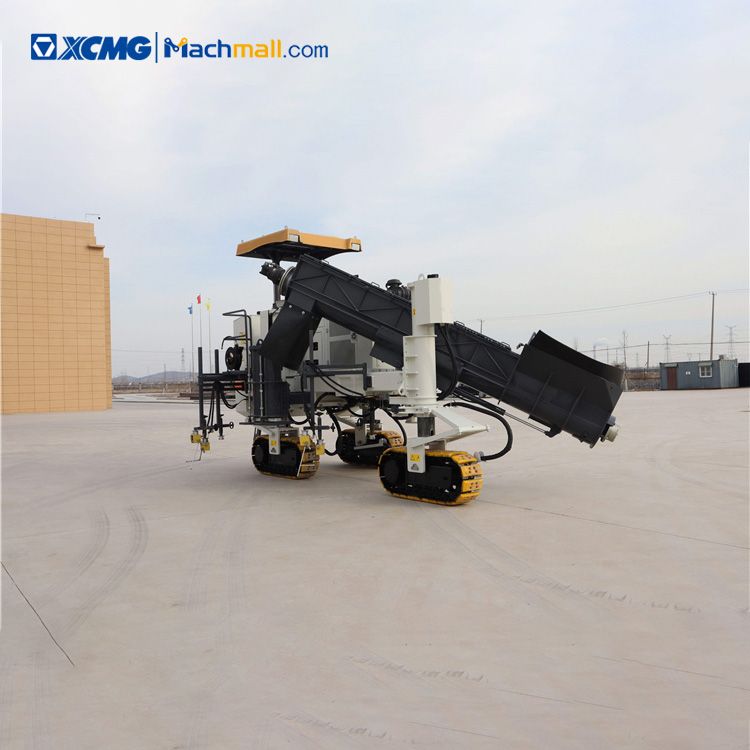

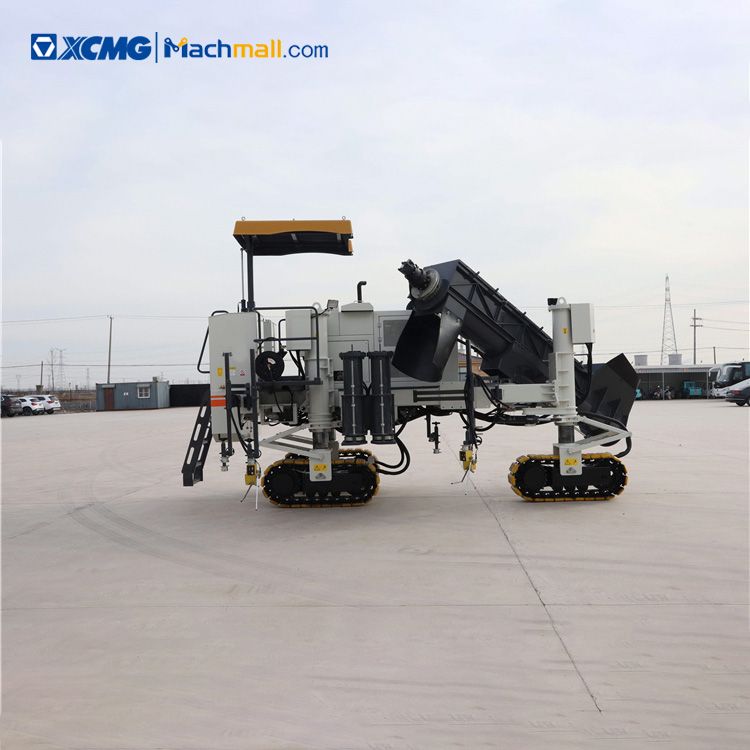

XGNC1600 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can be used for multiple purposes, and can realize various mold configurations. It is widely used in the construction fields of road drainage ditches, drainage ditches, kerbs, shoulder stones, concrete guardrail cement concrete structures and farmland water conservancy canals, replacing the traditional technology and significantly improving the construction quality and speed of cement concrete structures

Three-track walking, independent hydraulic drive, proportional control of two-speed motor and planetary gear reducer; closed-loop control of paving speed and PID adjustment ensure the stability of low-speed paving and improve the quality of slipform paving; The front track steering device is equipped with a displacement sensor; which ensures accurate steering.

The engine power is strong; The hydraulic system adopts load-sensitive variable control, and supplies oil according to the actual load size and speed, with low oil consumption, energy saving and environmental protection.

The humanized design of the operation console, the man-machine interactive control screen and clear graphical identification symbols make the paver easy to operate. It is equipped with Internet of Things platform, construction management and monitoring system and optional remote control device.

The swing, inclination and expansion of the auger conveying device are adjusted by hydraulic pressure, which is convenient to operate and suitable for various working conditions; The storage space is large, and the secondary mixing of cement concrete can be realized.

Item	XGNC1600
Maximum side paving height	1600mm
Maximum paving width	2500mm
Paving speed	0~15m/min
Travel speed	0~35m/min
Engine model	YCF36125-T482 (china)
Rated power/speed	92kW/2200r/min
Diesel tank capacity	360L
Track width	300mm
Track length	1600mm
Climbing capacity	≥ 25%
Minimum turning radius	4400mm
Outrigger hydraulic lifting stroke	970mm
Outrigger mechanical adjustment stroke	300mm
Hydraulic tank capacity	240L
Auger speed	0~70r/min
Size of auger feeding device	long 4400mm
Size of auger feeding device	Blade diameter 420mm
Hydraulic vibrator interface	7
Vibrating rod frequency	0~200Hz
Hydraulic driven high pressure ceramic plunger pump
water tank capacity	360L
Hydraulic horizontal stroke of mold fixture	1000mm
Hydraulic vertical stroke of mold fixture (double oil cylinder)	360mm
Mechanical vertical stroke of mold fixture	240mm
Transport dimension (long × wide × High)	710029003000mm
Operating Weight	14500Kg
