XCMG official manufacturer RP953S paver for sale
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Weight: 22800kg
Dimension(L*W*H): 6790×2600×3950mm
Model Number: RP953S
Brand Name: XCMG
Place of Origin: China
Paving Width: 10.5m
Max. Paving Thickness: 350mm
Power(W): 150kw
Production Capacity: 900t/h
Certification: CE/ISO9001
Add models to compare
Description

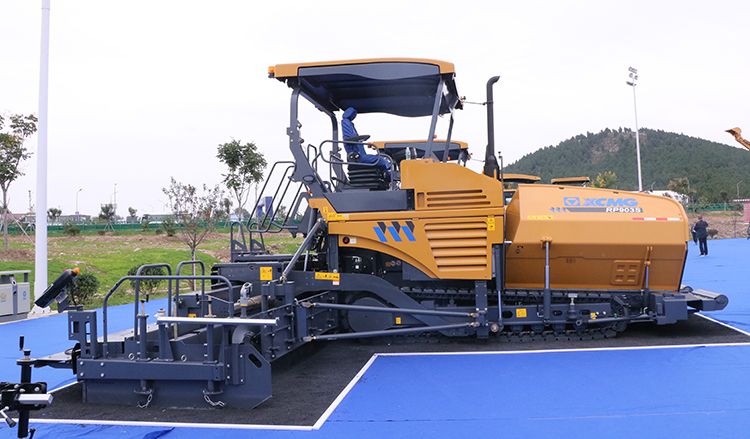

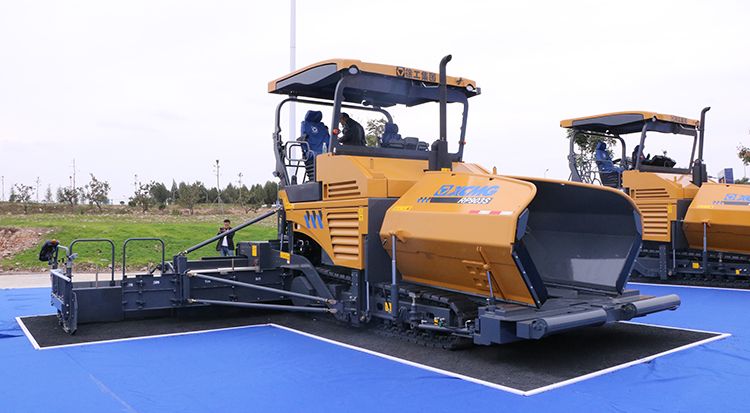

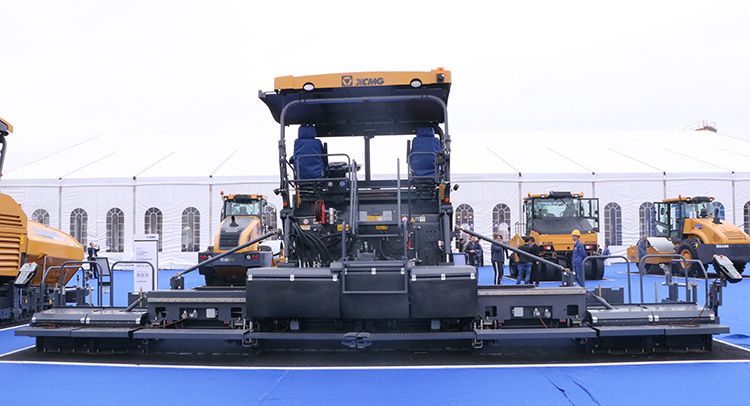

XCMG official manufacturer RP953S paver.



The paver RP953S adopts DEUTZ water-cooled supercharged engine is equipped with a four-in-one powerful radiator, independent driving around the drive, digital microcomputer control, and constant speed automatic control technology.



Four sets of independent hydraulic transmissions are adopted for the input and output materials. The material level adopts ultrasonic sensor control technology to achieve a full proportion of uniform feeding. The left and right dispensing devices can be conveniently moved up and down.



The material-bearing blades are made of highly wear-resistant alloy materials. The feed bottom plate and the screed plate base are made of imported high wear-resistant steel plates. Automatic leveling using imported German MOBA digital angle leveling instrument, higher accuracy.



Configure double vibration, eccentric vibration machinery to lengthen the screed. The centralized lubrication system can automatically and evenly supply oil to the bearings of each high temperature part.

Description
Unit
Parameter value
Dimension
mm
6790×2600×3950
Weight
kg
22800-30000
Driving speed
km/h
0-2.8
Basic pave width
m
2.5-10.5
Maximum pave width
m
10.5
Maximum layer thickness
mm
350
Maximum paving speed
m/min
18
Hopper capacity
kg
15000
Maximum laydown rate
t/h
900
Rate power
kw/rpm
150/2000



uMore  paver
