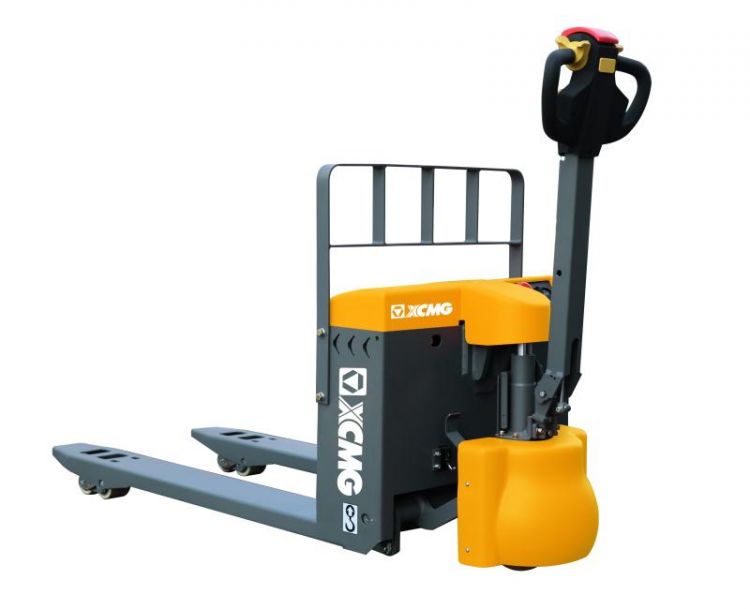

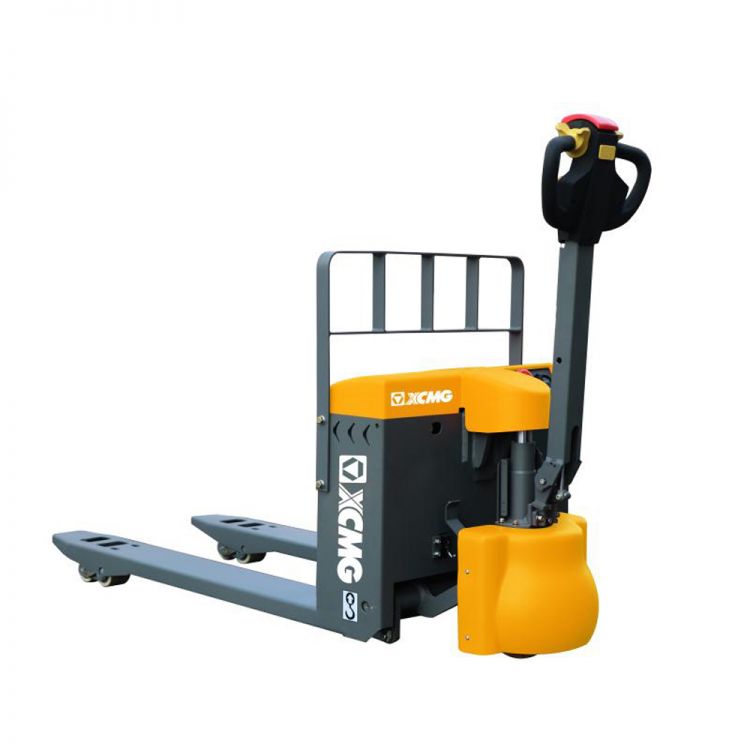

CBM15FB Forklifts

1、Ac drive,stronger power.
2、Lifting double protection,more safe.
3、Shelving design,better protection of goods during transportation.
4、Five fulcrum design,automatic adjustment of auxiliary wheel.
5、Touch-free walk proximity switch for durability.
6、Adopt the import controller,more stable and reliable.

Description	Unit	Parameter value
Model		CBM15FB


Configuration No.		56/68
Rated capacity	kg	1500
Load center distance	mm	600
Wheel base	mm	1370
Driving mode		Walking
Tyre type(front/rear)		PU
Driving wheel/Bearing wheel number		1/4
Driving wheel size	mm	φ210*70
Bearing wheel size	mm	φ80*70（Double wheels)
Min.fork lowered height	mm	80
Max.fork lifting height	mm	195
Max.lifting height	mm	115
Overall fork width	mm	560/680
Inside width between forks	mm	240/360
Fork length	mm	1150/1220
Fork width	mm	160
Fork thickness	mm	50
Truck body length	mm	1845/1730
Truck body width	mm	680
Truck body length（With handle)	mm	1188
Truck body length(Without handle)	mm	940
Min.Turning radius	mm	1350
Min.right angle stacking aisle width for pallets 800×1200	mm	2150
Min.right angle stacking aisle width for pallets 1000×1200	mm	2230
Travelling speed,loaded/unloaded	km/h	4/4.5
Lifting speed,loaded/unloaded	mm/s	28/38
Lowering speed,loaded/unloaded	mm/s	38/33
Gradeability,loaded/unloaded	%	6/15
Drive motor	KW	0.75
Lifting motor	KW	0.84
Battery voltage / capacity	V/Ah	24V/60Ah
Brake		Electromagnetic/Regenerative
Controller		Curtis
Battery weight	kg	26.5
Total weight(with battery)	kg	220

Description

Unit

Parameter value

Model

CBM15FB

Configuration No.

56/68

Rated capacity

kg

1500

Load center distance

mm

600

Wheel base

mm

1370

Driving mode

Walking

Tyre type(front/rear)

PU

Driving wheel/Bearing wheel number

1/4

Driving wheel size

mm

φ210*70

Bearing wheel size

mm

φ80*70（Double wheels)

Min.fork lowered height

mm

80

Max.fork lifting height

mm

195

Max.lifting height

mm

115

Overall fork width

mm

560/680

Inside width between forks

mm

240/360

Fork length

mm

1150/1220

Fork width

mm

160

Fork thickness

mm

50

Truck body length

mm

1845/1730

Truck body width

mm

680

Truck body length（With handle)

mm

1188

Truck body length(Without handle)

mm

940

Min.Turning radius

mm

1350

Min.right angle stacking aisle width for pallets 800×1200

mm

2150

Min.right angle stacking aisle width for pallets 1000×1200

mm

2230

Travelling speed,loaded/unloaded

km/h

4/4.5

Lifting speed,loaded/unloaded

mm/s

28/38

Lowering speed,loaded/unloaded
