Item

Unit

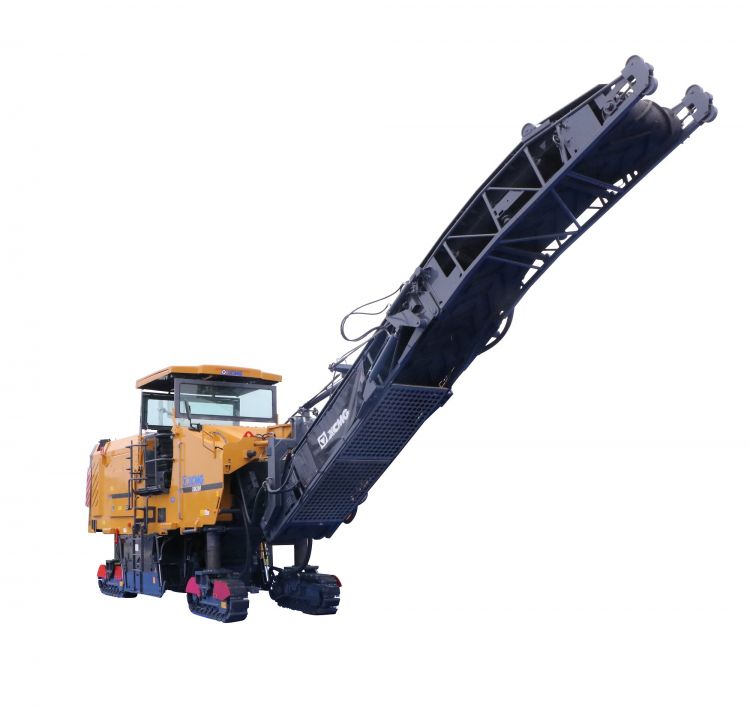

XM200II

Maximum milling width

mm

2000

Maximum milling depth

mm

320

Milling Wheel

Interval between

mm

18

Amount of tools

146

Diameter of milling wheel(with tool)

mm

980

Maximum dip angle of milling wheel

°

5

Diesel engine

Manufacturer

Weichai

Cooling type

Water cooling

Model

DHP13

The quantity of cylinder stator

6

Related power

kw

390

Engine speed

rpm

2100

Oil consumption: Full load

l/h

103

Speed/gradeability

Working speed

m/min

0-40

Walking speed

km/h

0-5

Theoretical gradeability(working gear)

%

60

Interval to the ground

mm

320

Weight/load

Shipping weight

kg

30000

Working weight

kg

34000

Crawler belt device

Front crawler belt

mm

1720 x 300 x 620

Rear crawler belt

mm

1720 x 300 x 620

Tank volume

Fuel tank

L

1400

Hydraulic fuel tank

L

300

Water tank

L

3400

Electric system

F

24

Conveyor belt device

Width of material collection conveyor belt

mm

850

Width of material unloading conveyor belt

mm

850

Delivery capacit of conveyor belt

≤m3/h

330

Overall dimension of shipping

Machinery(length x width x height)

mm

7650 x 2580 x 3000

Belt conveyor(length x width x height)

mm

8060 x 1150 x 1500
