Item

Unit

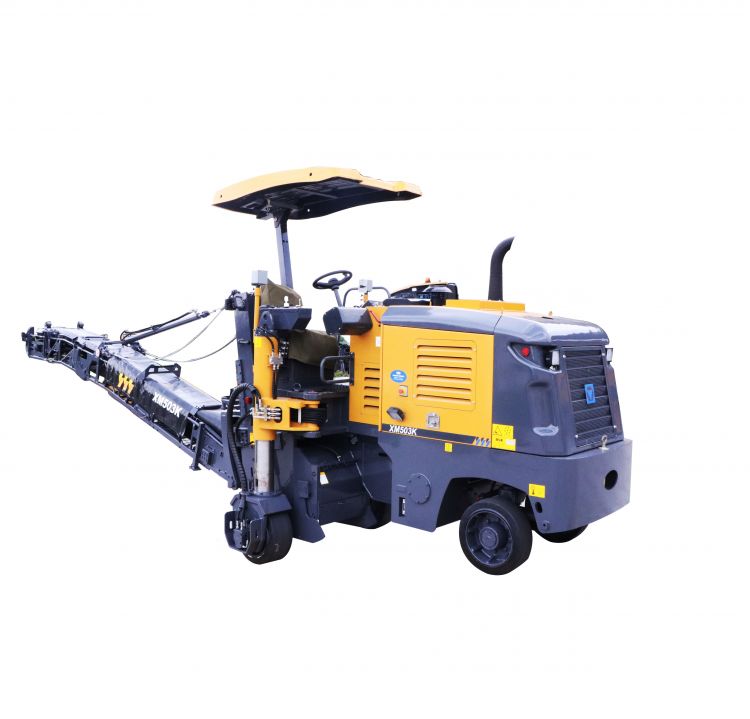

XM503K

Milling width

mm

500

Maximum milling depth

mm

210

Cutter tip pitch

mm

15

Amount of tools

(piece)

60

Diameter of rotor(Including cutter)

mm

750

Engine model

SC4H-C140

Engine manufacturer

Shangchai

Rated speed

rpm

2200

Rated power

Kw

103

Displacement

4.3L

Fuel consumption under rated power

l/h

26.2

Composite fuel consumption

l/h

10.5

Emission standard

国III

Fuel tank

L

China-III

Water tank

L

180

Working speed

m/min

330

Traveling speed

Km/h

0-30.7

Theoretical gradeability

%

0-7.5

Maximum ground clearance of milling drum

mm

60

Front tire specification

mm

210

Rear tire specification

mm

559 x 178

Unloading belt width

mm

559 x 254

Theoretic conveyance capacity of unloading belt

m3/h

350

Maximum unloading height

mm

44.4

Theoretic unloading capacity

m3/h

3800

Overall dimensions of machine

mm

80

Transport dimensions of machine

mm

8185 x 1888 x 4080

Length x Width x Height(Including conveyyor belt)

mm

6276 x 1888 x 2530

Length x Width x Height(without conveyor belt)

mm

3676 x 1888 x 2530

Dimensions of belt conveyor(Length x Width x Height)

mm

6000 x 860 x 860

Gross machine weight

Kg

7550

Operating weight

Kg

7950

Minimum milling radius

mm

350

Maximum ground clearance of milling drum

mm

210
