Item

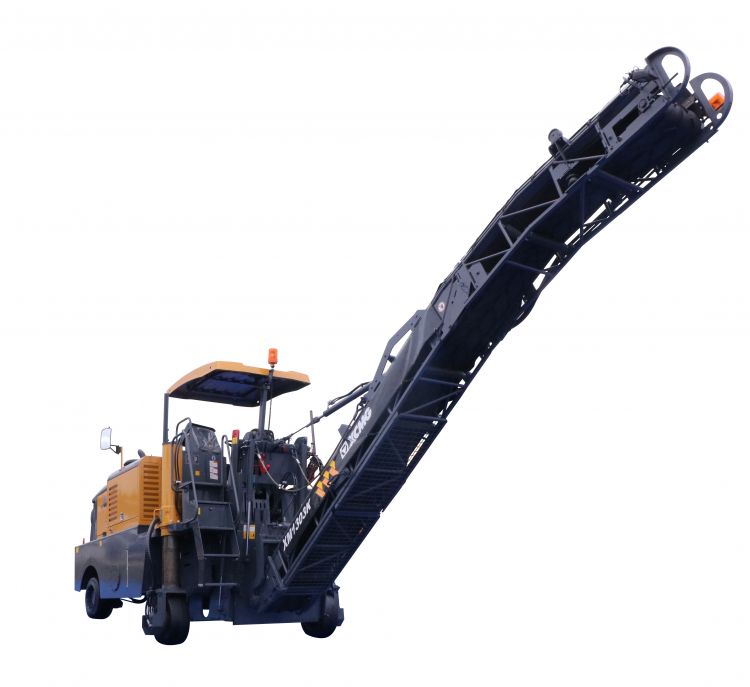

XM1003H

Milling drum

Milling width

1000mm

Milling depth

255mm

Cutter spacing

18mm

Number of cutters

80

Diameter of rotor(including cutter)

860mm

Engine

Manufacturer

Dongfeng Cummins

Model

QSB6.7

Cooling type

Water cooling

Number of cylinders

6

Rated power/2,200rpm

164kW

Displacement

6.7L

Full-load fuel consupmtion

42L

Composite fuel consumption

15L

Emission standard

China-III

Electric system

24V

Capacities of tanks

Fuel tank

370L

hydraulic oil tank

120L

Water tank

900L

Driving performance

Maximum working speed

40m/min

Maximum traveling speed

8km/h

Theoretical gradeability

85%

Ground clearance

180mm

Tires

Type of tires

Solid rubber tires

Front tire specification

645mm x 300mm

Rear tire specification

645mm x300mm

Conveyance of milled material

Belt width

500mm

Theoretic conveyance capacity

127m3/h

Transport dimensions

Machine dimensions(L x W x H)

4600mm x 2414mm x 3000mm

Main machine dimensions(With right outrigger swung info frame(L x W x H)

4600mm x 1935mm x 3000mm

Folded conveyor dimensions(L x W x H)

7900mm x 1100mm x 980mm

Machine weights

Unloaded weight without filled media

15000kg

Operating weight

15800kg

Front axle load(Under operating weight

5450kg

Rear axle load(Under Operating weight)

10350kg
