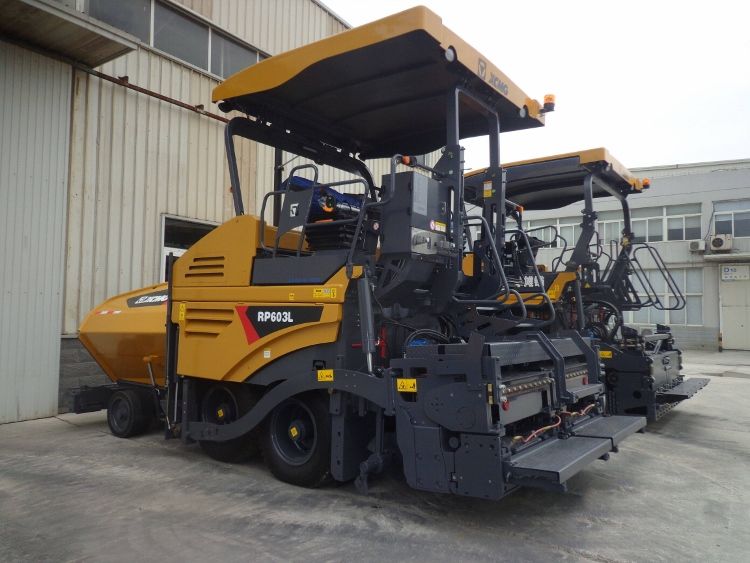

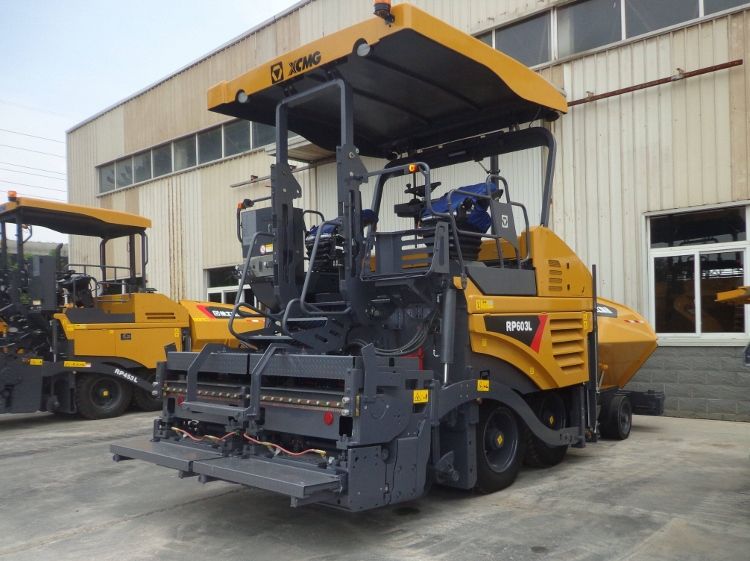

XCMG Official 6m asphalt RP603 full hydraulic road paver small paver
machine.
Pavement
width of 2.5m to 6.0m and flexibility of transition of tire paver, fully
hydraulic four-wheel drive, continuously variable, with SC4H water-cooled engine
(103kw/2200rpm), hydraulic system using electro-hydraulic proportional control.
Technology,
independent transmission and distribution drive, so that the power output is
efficient, 13t hopper design is large, the new compact left and right independently
drive the delivery bin, the distribution device can be easily moved up and down
to adapt to different paving thickness, reduce the material segregation,
electricity .
The control
system design is based on the CAN bus technology.
The automatic
leveling device can be used to control the paving thickness and slope
accurately.
The vertical
flatness can reach 3mm/3m and the transverse gradient is within 0.02%.
Description |
Unit |
Parameter value |
Dimension |
mm |
6590×2600×3942 |
Weight |
kg |
19000 |
Driving speed |
m/min |
0-15 |
Basic pave width |
m |
2.7-4.75 |
Maximum pave width |
m |
6 |
Maximum layer thickness |
mm |
260 |
Maximum paving speed |
m/min |
15 |
Hopper capacity |
kg |
13000 |
Maximum laydown rate |
t/h |
400 |
Rate power |
kw/rpm |
103/2200 |
