XCMG Official 15 ton new hydraulic wheeled excavator machine XE150WB price
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Rated Speed: 11/33km/h
Max Digging Radius: 7780mm
Machine Weight: 15ton
Maximum Digging Depth: 4630mm
Maximum Digging Height: 8190mm
Bucket Capacity: 0.58cbm
Operating Weight: 14ton
Model Number: XE150WB
Brand Name: XCMG
Place of Origin: Jiangsu, China
Add models to compare
Description

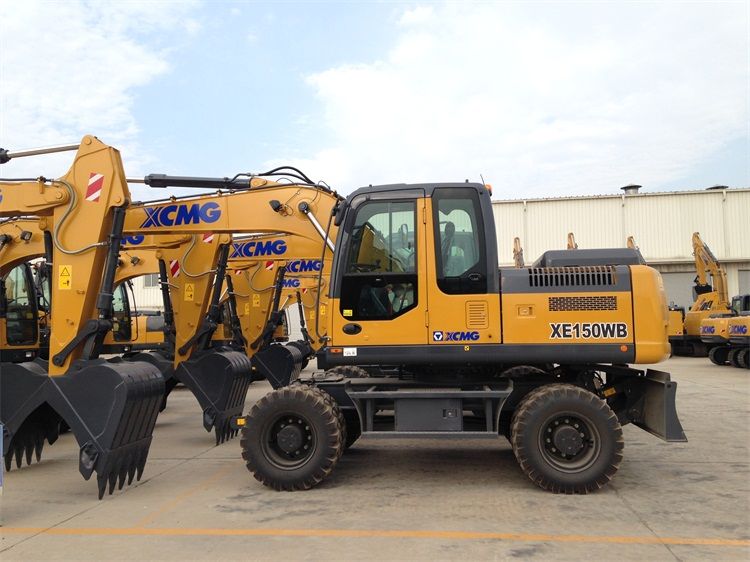

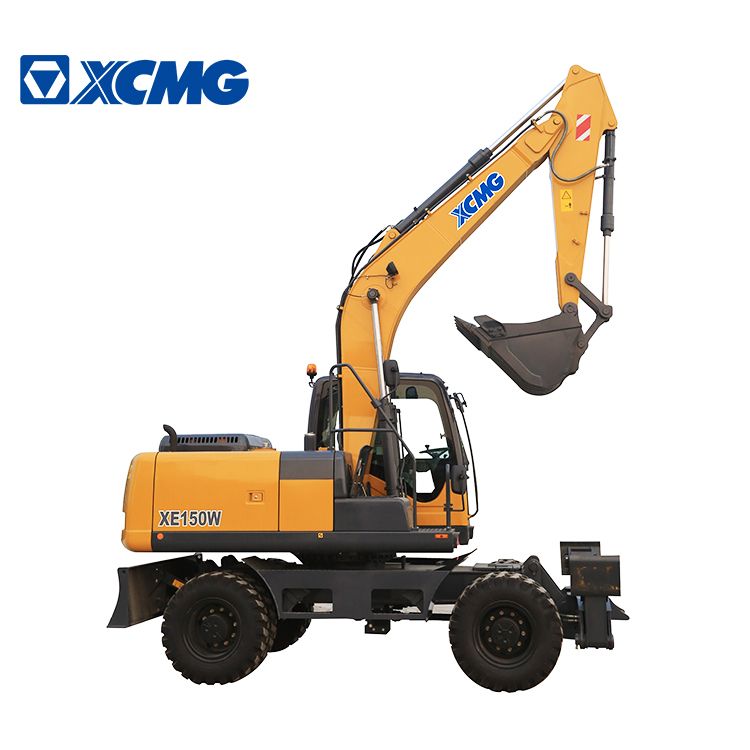

XCMG Official 15 ton new hydraulic wheeled excavator machine XE150WB.



XCMG XE150WB wheeled excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.



This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption.



Advantages and Highlights:

1. Equipped with a new generation of high-efficiency direct injection engine.



2. Using highly professional design and analysis tools, combined with bench tests, to ensure that our machines are strong and durable.



3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.



4. Fully functional, ergonomically designed man-machine driving and driving environment, equipped with high intensity cab certified with ROPS.

Engine model

/

QSB4.5

Output power of engine

Kw/r/min

104/2000

Max.torque/engine

N.m

586

Displacement

L

4.5

Fuel tank capacity

L

250

Rated flow of main pump

L/min

2x160

Pressure of main safety valve

Mpa

31.4/34.3

Hydraulic tank capacity

L

135

Slewing speed

r/min

13.7

Digging capacity of tcuket

KN

60

Digging capacity of tcuket rod

KN

65

Min.turning radius

mm

6500

Travel speed

Km/h

Gradient capability

%

70

A Total length

mm

6482

B Total width

mm

2552

C Total heigth

mm

3158

Counterweight ground clearance

mm

1230

Min.ground clearance

mm

359

Min.tail swing radius

mm

2300

Wheelbase

mm

2800

Track gauge

mm

1920

Total width of chassis

mm

2495

Distance between front axle and turning center

mm

1700

Hood height

mm

2430

The maximum digging depth of dozer

mm

112
