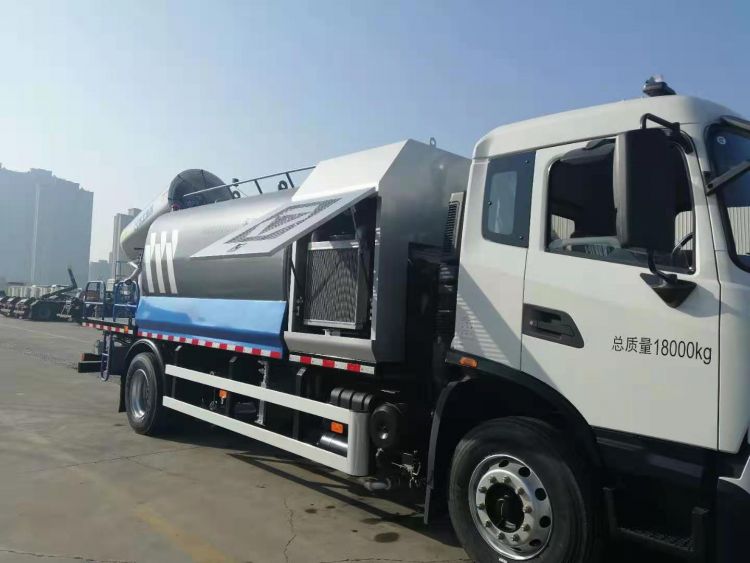

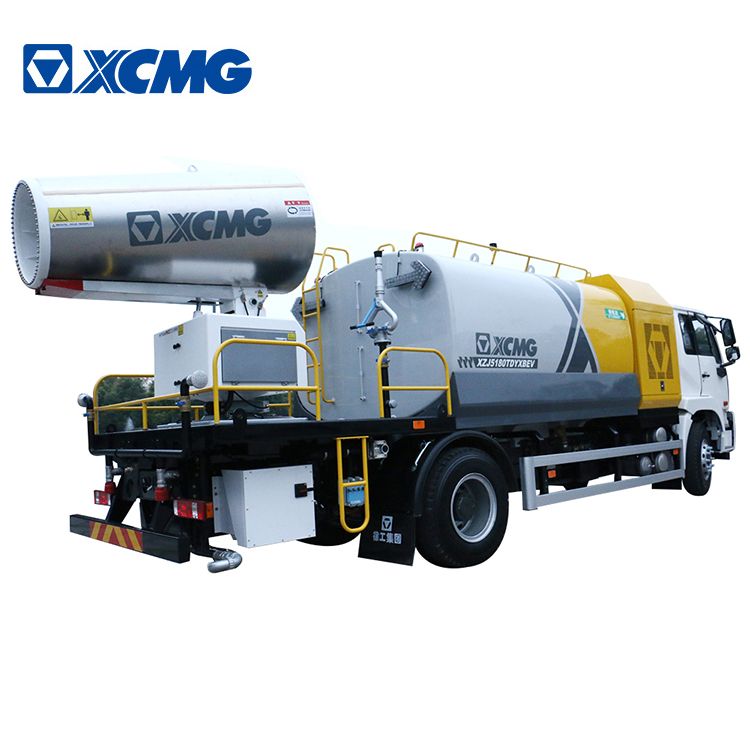

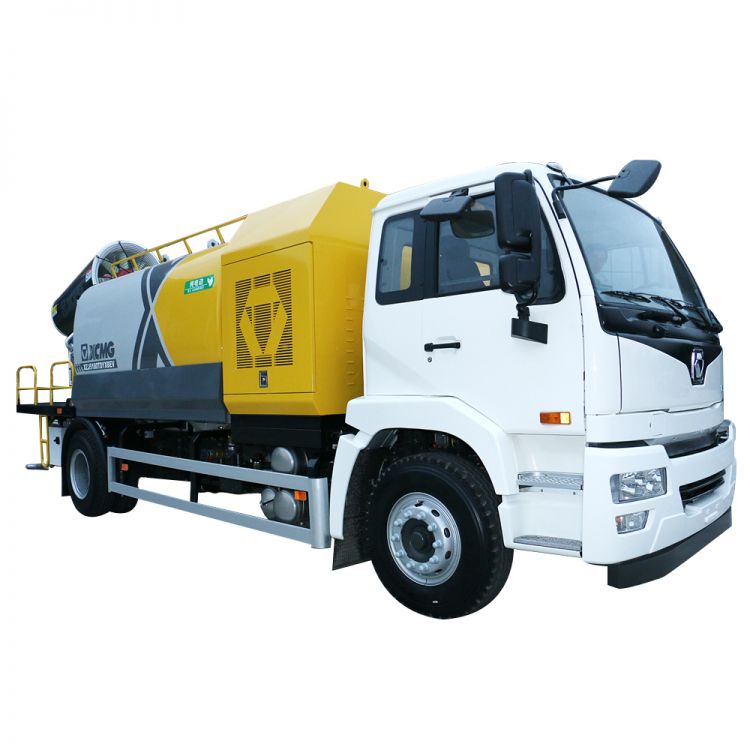

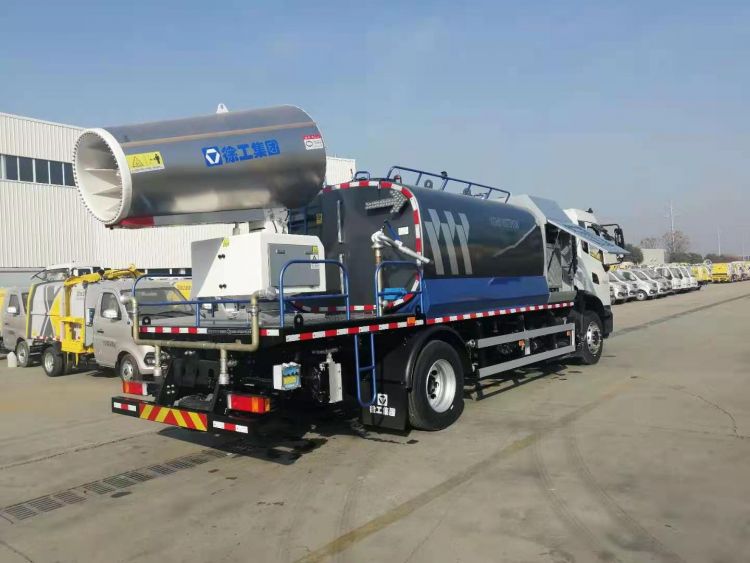

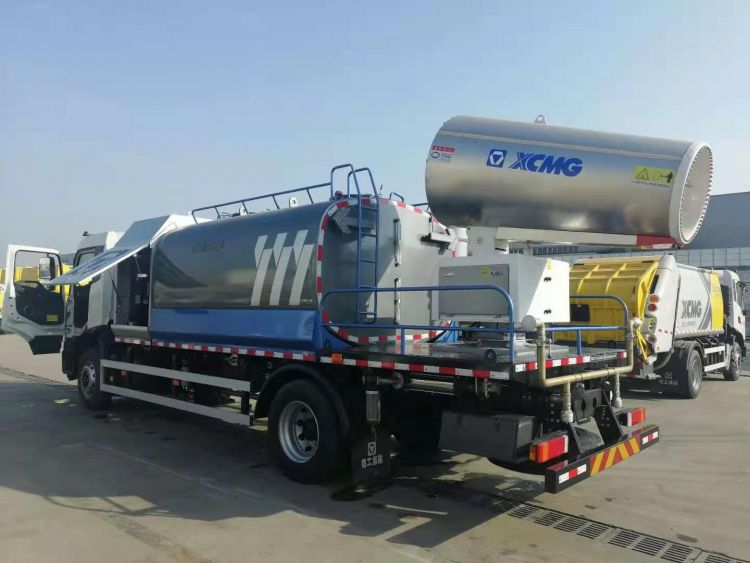

XCMG multifunction dust suppression truck with disinfection spray equipment.

Environmental guardian X1 electric multifunctional dust suppression vehicle, matching XCMG electric chassis, is a special vehicle which can suppress dust pollution by spraying water. It is widely used in air purification for cities, dust suppression for coal stockpile and yard dust, wet cooling for highway and sports venues. Besides, the truck owns the system of low-preeure waterway and function of low-pressure water spraying. The optimized spraying structure is more efficient than comparable product by saving 30% energy.

Item	Parameter
Vehicle Model	XZJ5180TDYXBEV
Chassis model	XGA1180BEVXAX
Maximum Total Weight	18000
Curb weight	11475
Rated Payload	6330
Overall Dimension	9880×2500×3625
Quantity of electric charge	367
Wheelbase	5100
Gunrange	≥100
Sprayflow	≥150
The droplets	2～200
The actual volume of water tank	10
Fog pitching angle	-10～+50
Clean water flow	400～600
Operating+Driving	≥8
