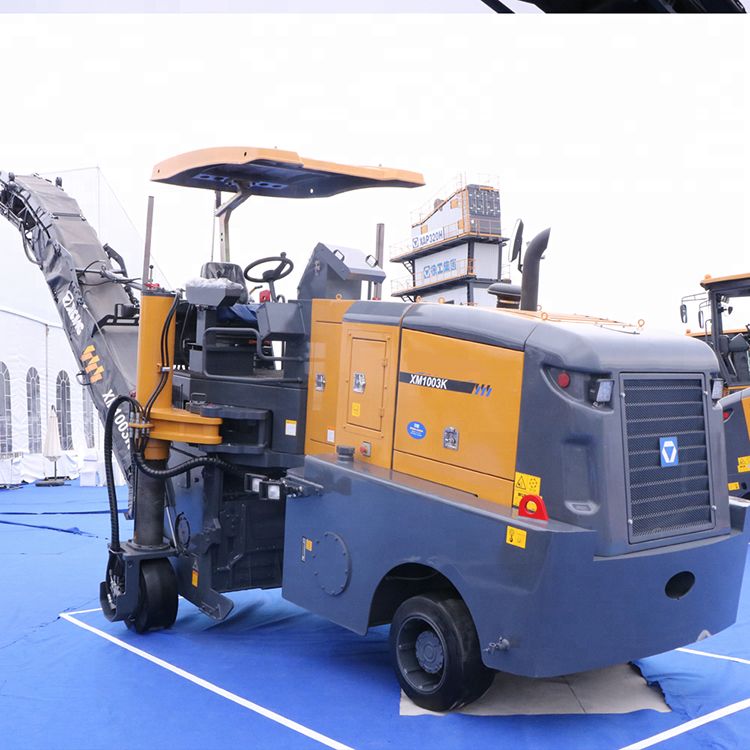

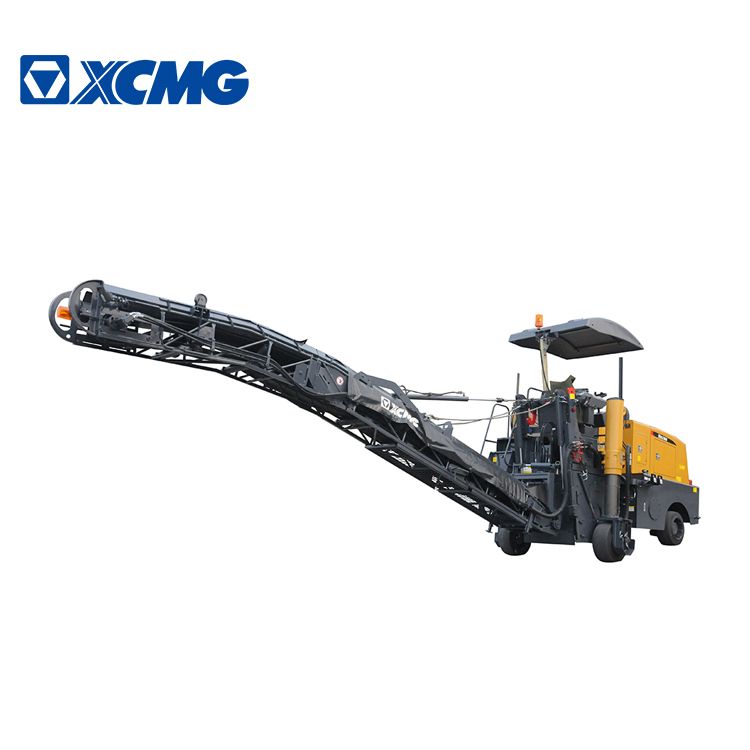

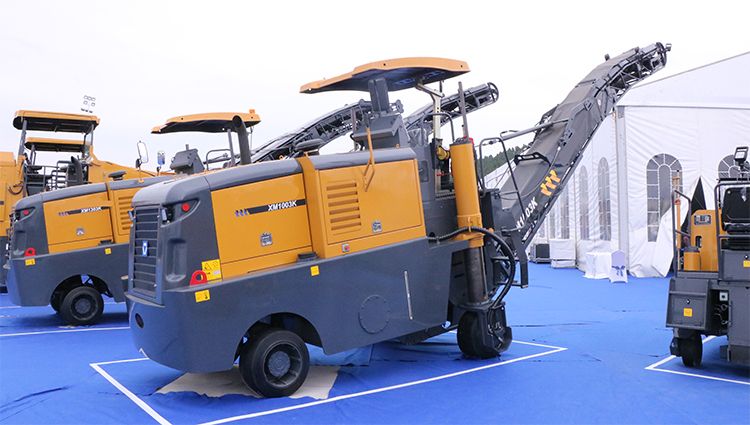

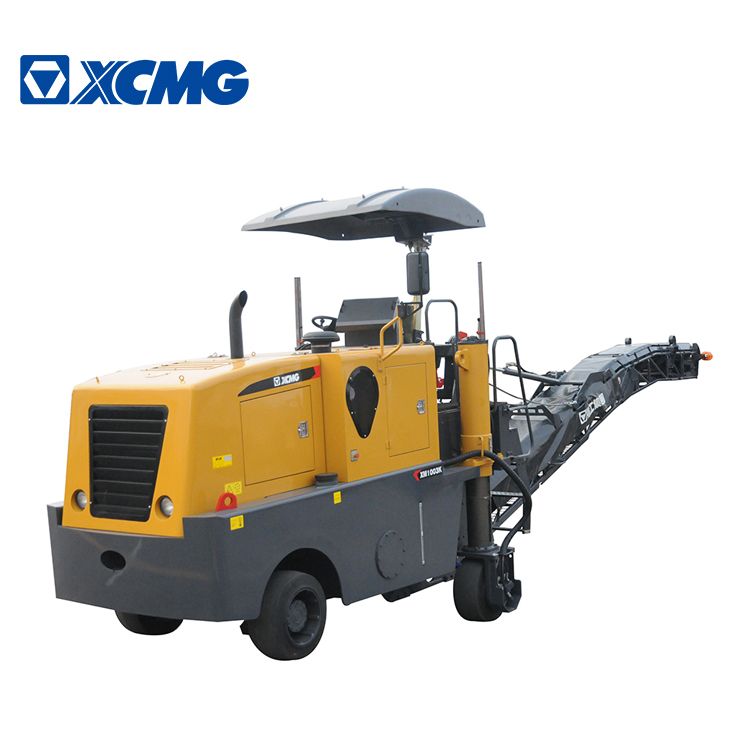

XCMG 1000mm XM1003K concrete road cold planer milling machine.
XCMG XM1003K road cold planer is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.
Performance Characteristics:
1.With higher working power and higher effectively handle the working conditions.
2.This engine features lower fuel consumption and better operation economy.
3.Achieve the 300mm maximum milling depth and remove the whole asphalt concrete pavement by single cycle.
4.The working speed is higher than the like products. Achieve more accurate matching between working speed and working load.
5.The milling drum is driven by mechanical belt to achieve higher drive efficiency than hydraulic drive.
6.Longer continuous working time and reduce the down time.
7.Adopts intelligent sprinkling control technology.
|
Item |
Unit |
XM1003K |
|
|
Milling drum |
Milling drum Milling width |
mm |
1000 |
|
Milling depth |
mm |
300 |
|
|
Tool spacing |
mm |
15/18 |
|
|
Number of tools |
100/82 |
||
|
Rotor diameter with tool |
mm |
930 |
|
|
Engine |
Model |
SC9DK220G3 |
|
|
Cooling method Water cooling |
Water cooling |
||
|
Number of cylinders |
6 |
||
|
Rated power/speed |
kW/rpm |
162/2200 |
|
|
Displacement |
L |
8.8 |
|
|
Rated power consumption |
L |
36.7 |
|
|
Comprehensive fuel consumption |
L |
12.3 |
|
|
Emission Standard |
National Ⅲ |
||
|
Electrical system |
V |
24 |
|
|
Box capacity |
Box capacity Fuel tank |
L |
450 |
|
Hydraulic oil tank |
L |
130 |
|
|
Water tank |
L |
860 |
|
|
Driving performance |
Driving performance Maximum operating speed |
m/min |
45 |
|
Maximum speed |
km/h |
8 |
|
|
Theoretical climbing ability |
% |
75 |
|
|
Ground clearance |
mm |
180 |
|
|
Tire |
Tire Tire Form Solid Rubber Tire |
Solid Rubber Tire |
|
|
Front tire size |
mm |
645×300 |
|
|
Rear tire size |
mm |
645×300 |
|
|
Milling material conveying |
Milling material conveyor Belt width |
mm |
500 |
|
Theoretical feeding capacity |
m3/h |
127 |
|
|
Transport size |
Shipping Size Host Size (L×W×H) |
mm |
4837×2546×3745 |
|
Host size (right leg swings into the frame) (L×W×H) |
mm |
4837×2057×3745 |
|
|
Folding conveyor size |
mm |
7300×1085×980 |
|
|
Machine weight |
Machine Quality Work |
kg |
16800 |
|
Front axle load (under working quality) |
kg |
6000 |
|
|
Rear axle load (under working quality) |
kg |
10800 |
|
