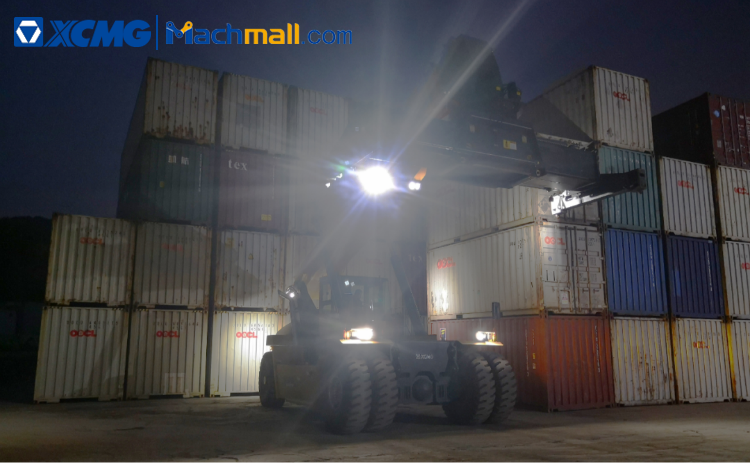

XCMG 45 ton electric reach stacker for container.
XCMG Reach Stackers:
XCMG reach stackers include K series (diesel engine) and E series (pure electric) reach stackers.
XCMG E Series Reach Stackers:

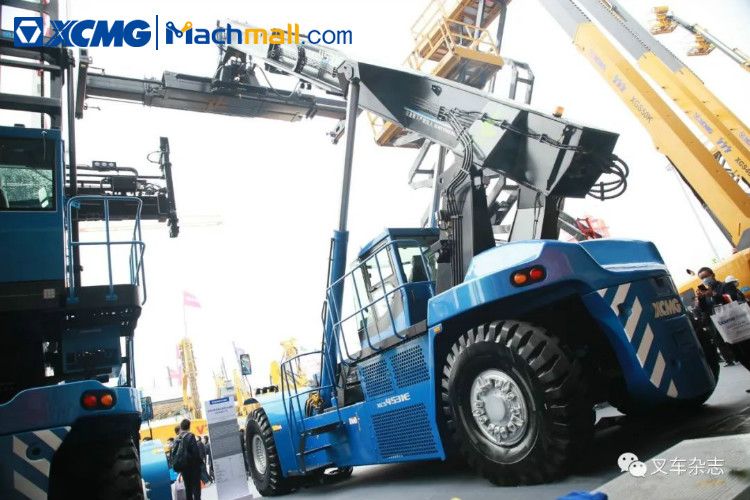

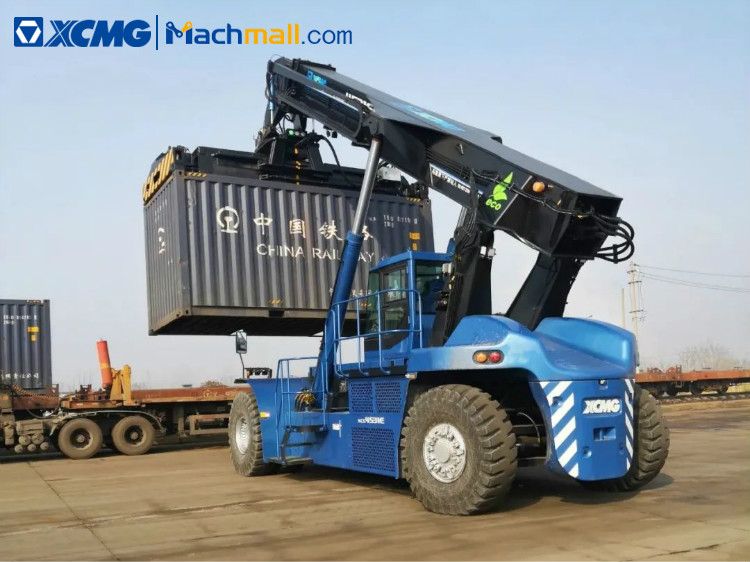

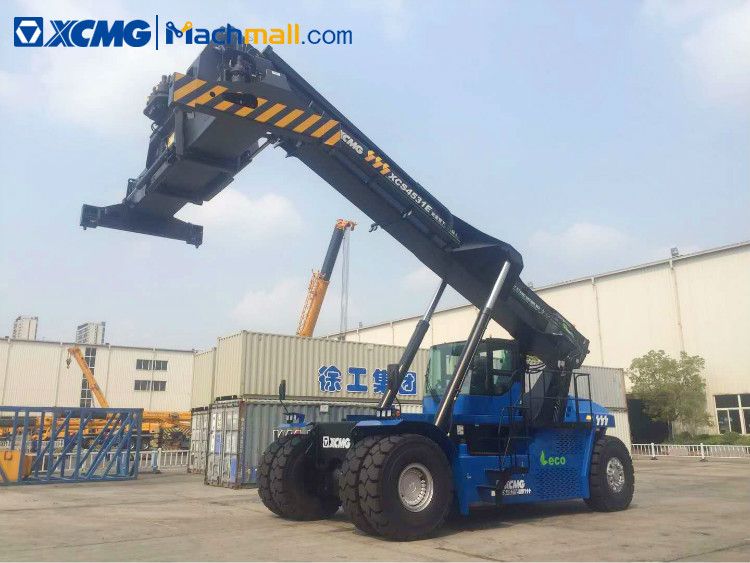

XCMG E series reach stacker XCS4531E is the only pure electric reach stacker in the industry, which features long endurance, high efficiency, energy saving, environmental protection, high-end configuration and comfortable driving.
Applicable Working Conditions of XCMG E Series Reach Stacker XCS4531E:

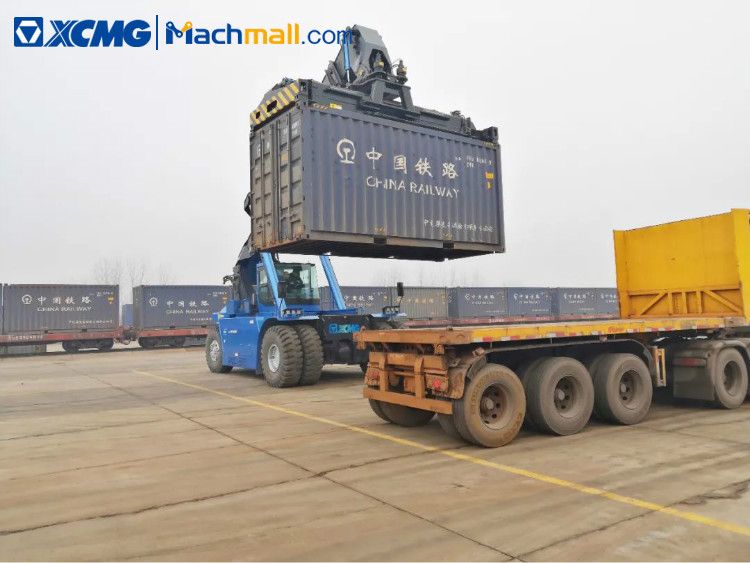

IOS 20ft~40ft standard container
Highlights of XCMG XCS4531E Reach Stacker:
1.Three-electric drive control scheme and distributed hydraulic control system bring higher operating efficiency and stronger performance for the whole machine
2.423kWh lithium iron phosphate power battery to ensuresufficient battery life
3.Advanced technologies such as precise weighing system, intelligent braking system, panoramic images and box protection make products intelligent and efficient
4. Equipped with panoramic cab, high-power air conditioning. Humanized layout, the whole machine is elegant and comfortable to operate
XCMG XCS4531E Reach Stacker Optional Configurations:
A variety of attachments such as tilting slings, log slings, electromagnetic slings etc. can be selected for multiple purposes.
|
Item |
Unit |
XCS4531E |
|
|
Main motor |
Model |
|
DM380H46 |
|
|
Rated power/speed |
kW/rpm |
210/942 |
|
|
Maximum torque/speed |
Nm/rpm |
3800/275 |
|
|
emission standards |
|
zero emission |
|
Working motor |
Model |
|
UM130H37 |
|
|
Rated power/speed |
kW/rpm |
160/2037 |
|
|
Maximum torque/speed |
Nm/rpm |
1300/1175 |
|
|
emission standards |
|
zero emission |
|
battery |
Types |
|
Lithium iron phosphate |
|
|
capacity |
kWh |
423 |
|
Drive axle |
Types |
|
Kessler-D102 |
|
Boom |
Maximum lifting height |
mm |
15100 |
|
|
inclination |
。 |
0-60 |
|
Maximum lifting speed (no load/full load) |
mm/s |
420/250 |
|
|
Maximum descending speed (no load/full load) |
mm/s |
400/360 |
|
|
Maximum travel speed (no load/full load) |
km/h |
20/14 |
|
|
Gradeability (no load/full load) |
% |
20/13 |
|
|
Hydraulic system working pressure |
Bar |
260 |
|
|
Vehicle quality |
t |
72 |
|
|
Rated load |
t |
45 |
|
|
Overall dimension(L*W*H) |
mm |
11340*4670*6053 |
|
|
Wheelbase L1 |
mm |
6000 |
|
|
Minimum ground clearance H1 |
mm |
300 |
|
