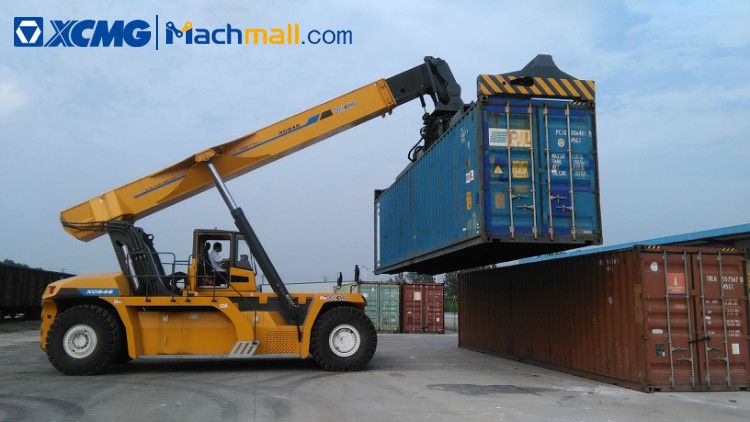

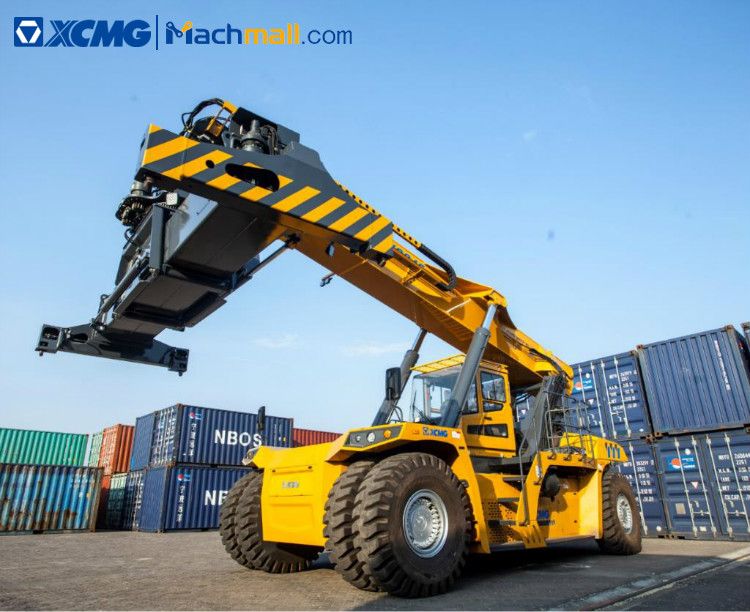

China XCMG 45 ton reach stacker for 20ft container.

XCMG Reach Stackers:

XCMG reach stackers include K series (diesel engine) and E series (pure electric) reach stackers.

XCMG K Series Reach Stackers:

XCMG's K series reach stacker features good safety, high degree of intelligence, comfortable operation, energy saving and environmental protection, and it meets the requirements of the high-end market.

Applicable Working Conditions of XCMG K Series Reach Stacker XCS4531T:

IOS 20ft standard container

Highlights of XCMG XCS4531T Reach Stacker:

1. Powered by Volvo engine and Dana gearbox.

2. Parker hydraulic system, IFM controller hydraulic and electric control scheme to ensure quick operation.

XCMG XCS4531T Reach Stacker Optional Configurations:

smart brakes, precise weighing, panoramic images, etc.

Applicable	ISO 20ft standard container
Basic configuration	Engine：QSM11
	Rated power/speed： 250kw/2100rpm
	Gearbox model:DANA 15.7TE30510
	Tyre model：18.00-25
	Maximum static load：150t
Spreader	model：XDJ450T
	Rotation angle：+105/-195°
	Side shift distance：±800mm
	Angle of inclination：0°
	Weight：4.9t
	ISO 20ft standard container
Boom assembly	Max. Lifting Height：9.2m
Boom assembly	Angle of inclination：0～60°
Main Technical Data	Weight：65t
	Dimensions: 107506053/121854670mm
	Wheelbase：6000mm
	Minimum ground clearance：350mm
	Front track：3033mm
	Rear track：2770mm
Technical specifications	Max. Lifting Capacity：45t
	Number of Stacking：3（9′6″/8′6″）
	Maximum lifting speed (no load/ full load)：420/250 mm/s
	Maximum falling speed (no load/full load)：360/360 mm/s
	Maximum travelling speed：25/21 km/h
	Gradeability:39/32%
	Minimum turning radius：8000mm
	20′ Aisle width A1:11300mm
	40′ Aisle width A1:13600mm
