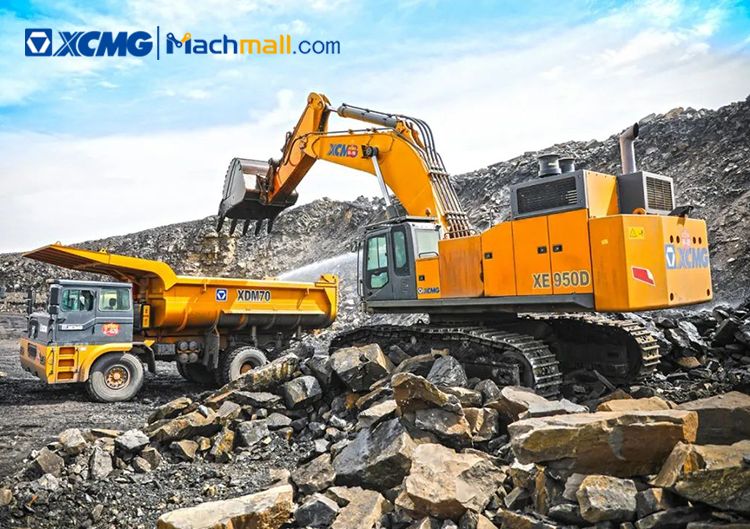

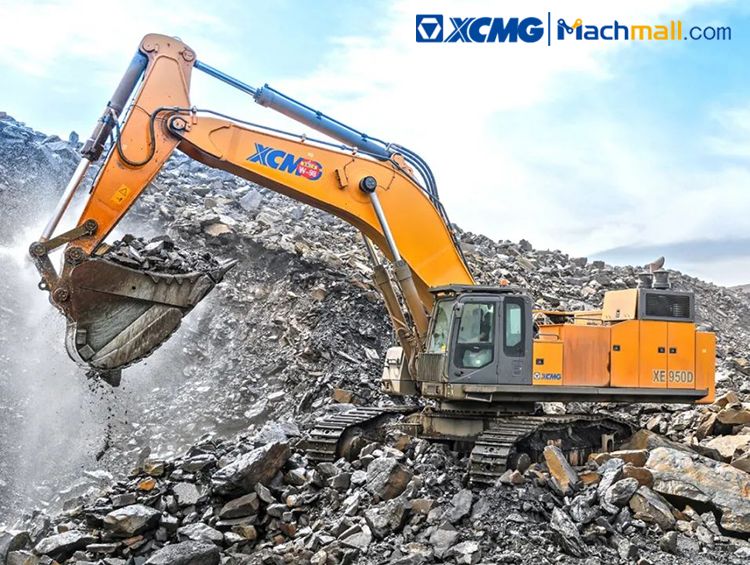

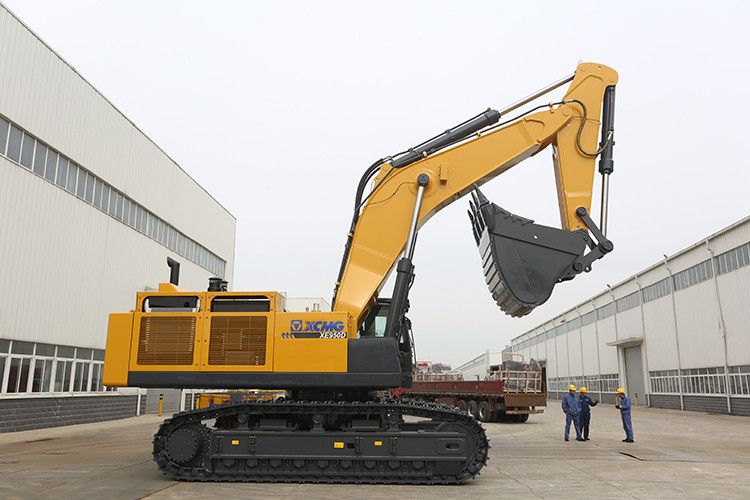

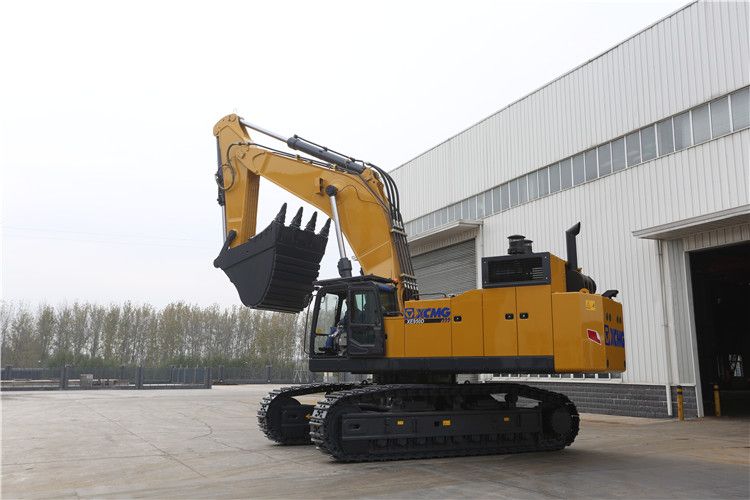

XCMG Manufacturer 90 ton Heavy Crawler Excavator XE950D.
1, The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2, The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3, The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4, The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
|
|
Main performance |
Travel speed |
km/h |
4.2/2.8 |
|
Rotating speed |
r/min |
6.4 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kpa |
127 |
|
|
Bucket digging force |
kn |
460 |
|
|
Arm crowd force |
kn |
350 |
|
|
Maximun traction |
kn |
618 |
|
|
Working scope |
Max. digging height |
mm |
12060 |
|
Max. dumping height |
mm |
8070 |
|
|
Max. digging depth |
mm |
7200 |
|
|
Max. vertical wall digging depth |
mm |
7060 |
|
|
Max. digging reach |
mm |
3160 |
|
|
Min. swing radius |
mm |
12690 |
|
|
Max. ground digging reach |
mm |
5020 |
|
