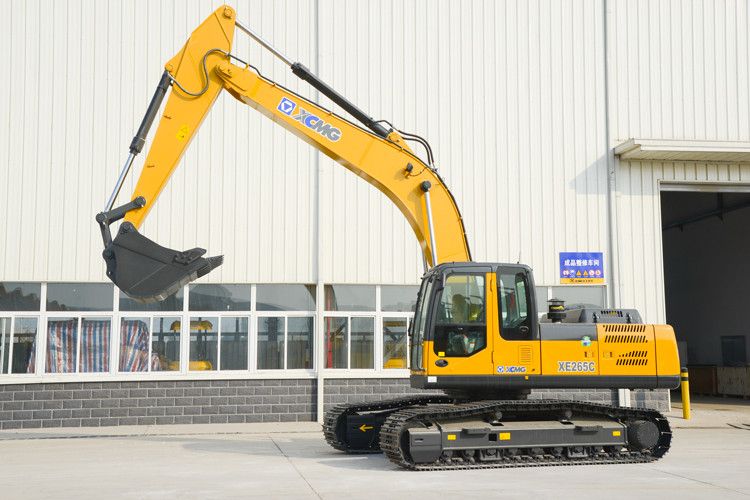

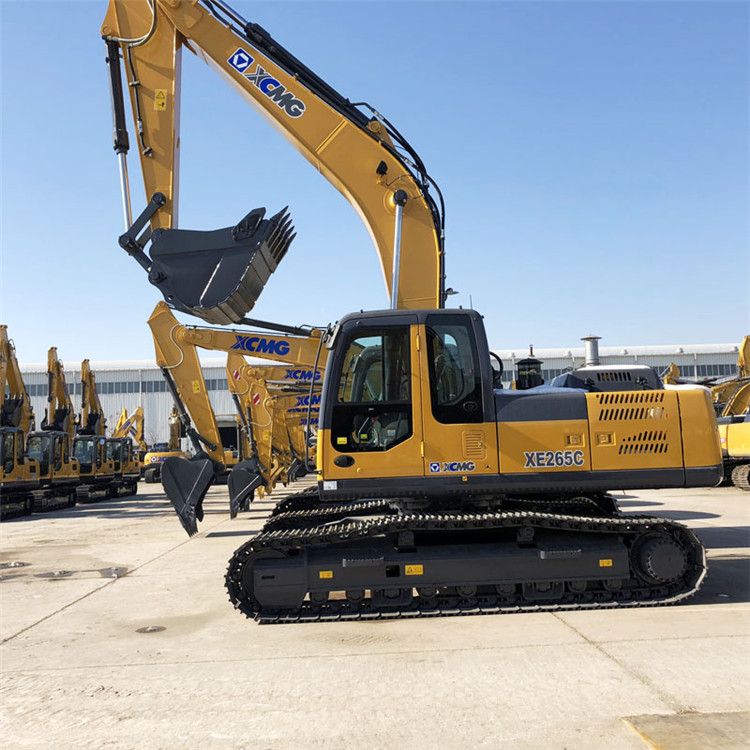

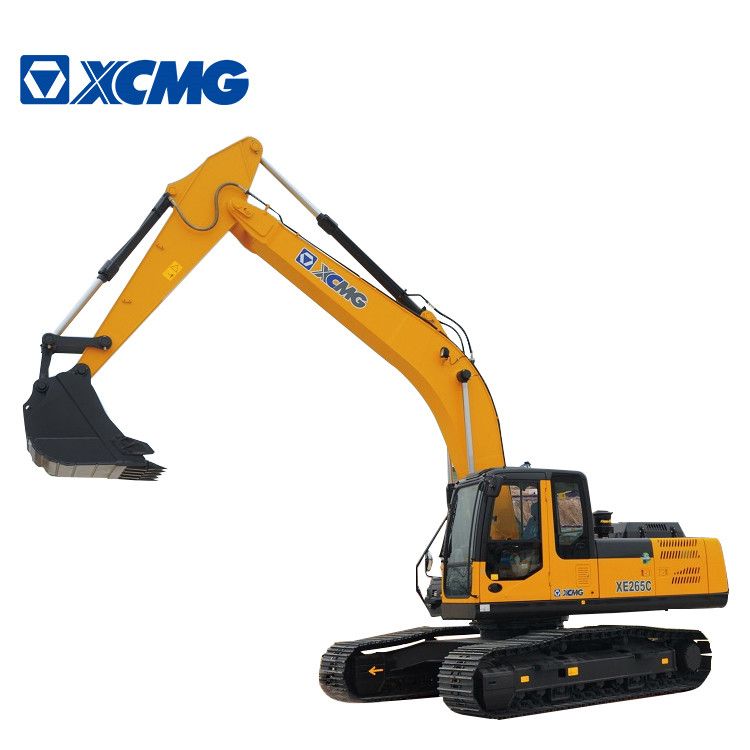

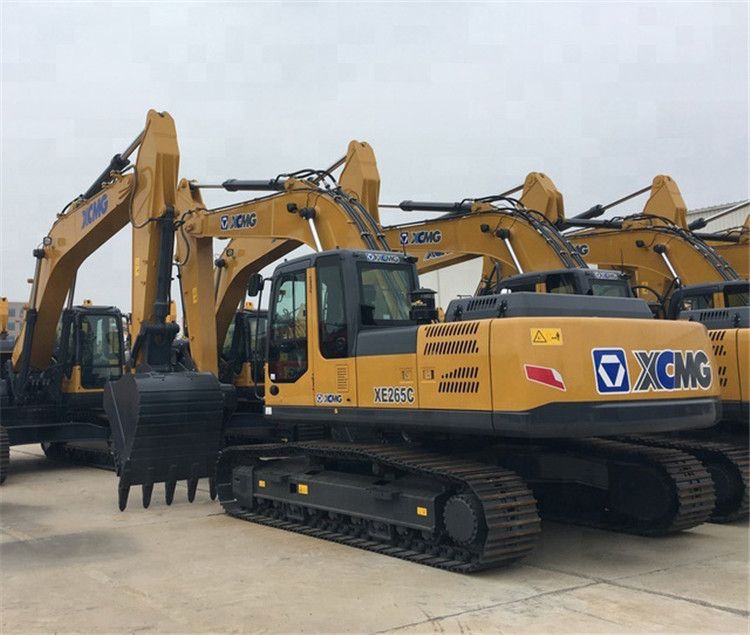

XCMG XE265C excavator machine 25 ton China excavator.

Main parameters:

Bucket capacity：1.2 CBM (standard)

Operating weight:25500kgs

Max digging height:9662mm

Max digging reach:10240mm

Main configuration:

ISUZU BB-6BG1TRP engine ,135.5kw

Hydraulic system

XCMG XE265C is the most popular model of 25t excavator, Now XE265C is upgrading to new model equipped with EURO III engine with electric injector, new model will have high performance.

The XE265C hydraulic excavator equipped with a backhoe boasts strong power, sufficient sturdiness, reliable durability, low fuel consumption, can be used in road engineering, construction of farmland water conservancy, port construction and other earthwork and mining engineering.

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

Description		Unit	Parameter value
Operating weight		kg	25500
Bucket capacity		m³	1.05～1.25
Engine	Model	Engine	ISUZU
			CC-6BG1TRP-05
	Direct injection	---	√
	Four strokes	---	√
	Water cooling	---	√
	Turbo-charging	---	√
	Air to air intercooler	---	√
	No. of cylinders	---	6
	Output power	kW/ r/min	135.5/2150
	torque/speed	N.m	637/1800
	Displacement	L	6.494
	Travel speed（H/L)	km/h	5.9/4.0
Main performance	Rotating speed	r/min	11.3
	Gradeability	°	≤35
	Ground pressure	kPa	50.1
	Bucket digging force	kN	179
	Arm digging force	kN	125
	Maximum traction	kN	194
Hydraulic system	Main pump	--	2
	Rated flow of main pump	L/min	2×256
	Pressure of prime valve	MPa	34.3/37
	Pressure of travel system	MPa	34.3
	Pressure of swing system	MPa	28
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	240
	Engine oil capacity	L	25
	Overall length	mm	10160
Appearance size	Overall width	mm	3190
	Overall height	mm	3100
	Width of platform	mm	2830
	Length of crawler	mm	4640
	Overall width of chassis	mm	3190
	Width of crawler	mm	600
	Wheel base of crawler	mm	3842
	Crawler gauge	mm	2590
	Clearance under counterweight	mm	1100
	Min. ground clearance	mm	485
	Min. tail swing radius	mm	2985
	Max. digging height	mm	9662
Working scope	Max. dumping height	mm	6810
	Max. digging depth	mm	6895
	Max. digging depth at the range of level 8 feet	mm	6750
	Max. vertical wall digging depth	mm	5480
	Max. digging reach	mm	10240
	Min. swing radius	mm	3850
Worker Standard	Length of boom	mm	6000
	Length of arm	mm	2960
	Bucket capacity	m³	1.2
Worker Optional	Length of boom	m³
	Length of arm	m³	2500
	Bucket capacity	m³	1.25/1.05
