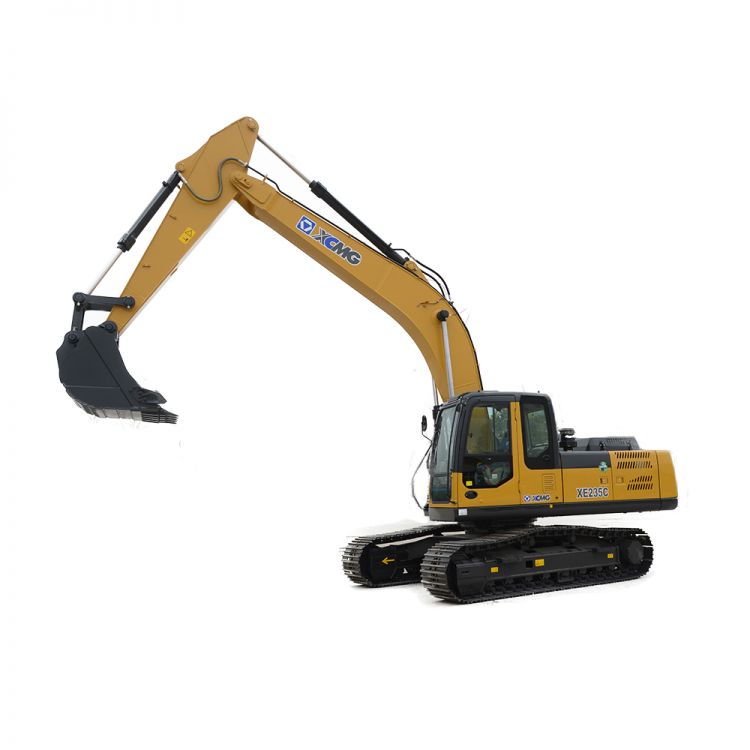

23.5 ton XCMG manufacturer hydraulic Crawler Excavator XE235C.

XCMG hydraulic Crawler Excavator XE235C is a new product developed by XCMG Group which is widely developed by adopting the latest technology and adopting the advanced technology of similar foreign products. XCMG hydraulic Crawler Excavator XE235C is an efficient excavator with the latest technology, full attention to safety and environmental performance, and extremely high production efficiency. Based on the full absorption of international advanced technology, the project is based on independent innovation and comprehensively overcomes many core key technologies of 20-ton hydraulic excavators.

The newly upgraded XCMG hydraulic Crawler Excavator XE235C has more power, lower fuel consumption and stronger working performance. It can be widely used in farmland water conservancy, river dredging, municipal construction and small mine construction, and can realize different operation requirements such as excavation, crushing and dismantling. The adaptability of working conditions has been further strengthened.

Performance Characteristics:

1. Ecological and economical

* Japan ISUZU 128.5kW high-power engine is more fuel saving.

* New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.

* Efficiency main valve increases overflow pressure and reduces pressure loss.

* Smart matching technology ensures higher operating efficiency and lower fuel consumption.

2. Multiple applications

* Different boom, arm and bucket combinations can adapt to as many working conditions as possible.

* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismantling.

* Instantaneous pressurization function copes with complex working conditions.

3. Comfortable operational experience

* Air Conditioner and Heator with Double stage air filter ensure the appropriate temperature.

* Silicone rubber shock absorber is adopted in the cab.

* Air-suspending seat equipped with electric heating function.

* Integrated control panel and large display screen provide multiple information.

* ROPS and FOPS Cab can improve cab safety.

Description			Unit	Parameter value
Operating weight			kg	23500
Bucket capacity			m³	1.0~1.1
Engine	Model		Engine	CC-6BG1TRP
	Style	Direct injection	---	√
		Four strokes	---	√
		Water cooling	---	√
		Turbo-charging	---	√
		Air to air intercooler	---	√
	No. of cylinders		---	6
	Output power		kW/ r/min	128.5/2100
	torque/speed		N.m	637/1800
	Displacement		L	6.494
Main performance	Travel speed(H/L)		km/h	6.0/4.0
	Rotating speed		r/min	≤35
	Gradeability		°	12.1
	Ground pressure		kPa	48.9
	Bucket digging force		kN	176
	Arm digging force		kN	125
	Maximum traction		kN	194.8
Hydraulic system	Main pump		--	2
	Rated flow of main pump		L/min	2×246
	Pressure of prime valve		MPa	34.3/37
	Pressure of travel system		MPa	34.3
	Pressure of swing system		MPa	25
	Pressure of pilot system		MPa	3.9
Oil Capacity	Fuel tank capacity		L	400
	Hydraulic tank capacity		L	240
	Engine oil capacity		L	25
Appearance size	Overall length		mm	10160
	Overall width		mm	2990
	Overall height		mm	3100
	Width of platform		mm	2830
	Length of crawler		mm	4255
	Overall width of chassis		mm	2990
	Width of crawler		mm	600
	Wheel base of crawler		mm	3462
	Crawler gauge		mm	2390
	Clearance under counterweight		mm	1050
	Min. ground clearance		mm	485
	Min. tail swing radius		mm	2985
Working scope	Max. digging height		mm	9595
	Max. dumping height		mm	6725
	Max. digging depth		mm	6960
	Max. digging depth at the range of level 8 feet		mm	6750
	Max. vertical wall digging depth		mm	6090
	Max. digging reach		mm	10240
	Min. swing radius		mm	3850
