XCMG XE215C 20 ton excavator machine with catalog PDF for sale
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Machine Weight: 21700 kg
Maximum Digging Depth: 6680 mm
Maximum Digging Height: 6780 mm
Bucket capacity: 0.9-1.0 m ³
Model Number: XE215C
Brand Name: XCMG
Place of Origin: XUZHOU, CHINA
Add models to compare
Description

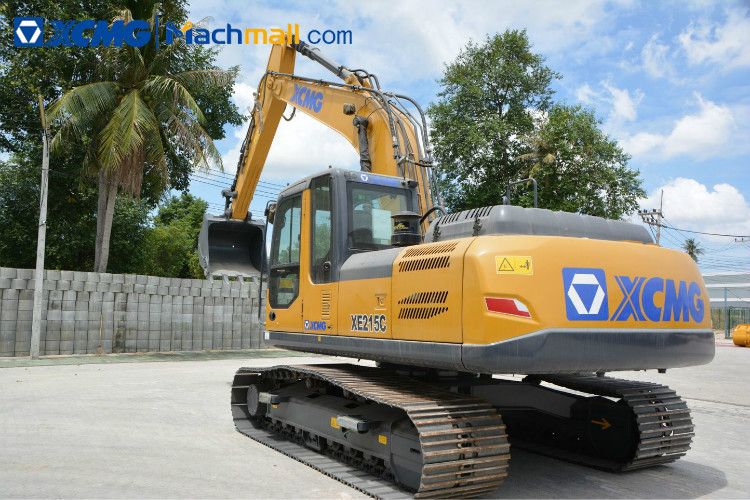

XCMG XE215C 20 ton excavator machine.



XCMG XE215C 20 ton excavator machine is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.



XCMG XE215C has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.



1. Original imported engine

An Imported Isuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.



2. Latest fuel filter

The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.



3. Hydraulic system

Original imported high-end hydraulic components are configured to match capabilities for excellent performance.



4. Structure

Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.



5. Optional match

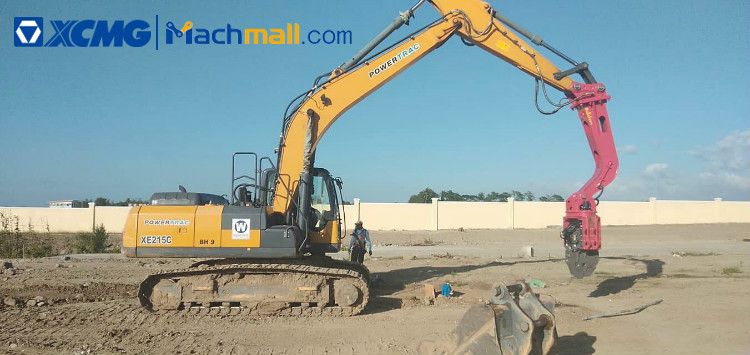

Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the capabilities of the machine.



Engine

Model

ISUZU CC-6BG1TRP



Equipped

Electronic fuel injection





Four strokes





Water cooling





Turbo-charging





Air to air intercooler



No. of cylinders

6



Output power

128.5/2100 kW/rpm



Torque/speed

637/1800 N.m/rpm



Displacement

6.494 L

Operation Weight

21700 kg

Bucket Capacity

0.9—1.0 m ³

Main performance

Travel speed(H/L)

5.5/3.3 km/h



Rotating speed

13.3 r/min



Gradeability

≤35°



Ground pressure

47.2 kPa



Bucket digging force

149 kN



Arm digging force

111 kN



Maximum traction

184 kN

Working scope

Max. digging height

9620 mm



Max. dumping height

6780 mm



Max. digging depth

6680 mm



Excavation depth of 8 feet level

6500 mm



Max. vertical wall digging depth

5715 mm



Max. digging reach

9940 mm



Min. swing radius

3530 mm
