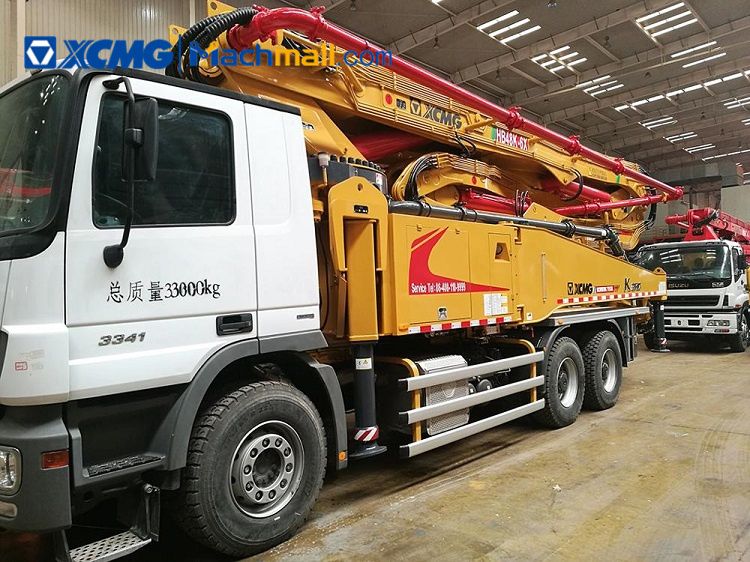

XCMG HB48K 48 meters pump for concrete machine price for Bengal.
XCMG HB48K 48 meters pump for concrete machine has a new generation of micro-control technology used to
make boom operation steadier and more accurate.
On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
Advantages:
1.Intelligent control system.
2.Efficient pumping system of rock valve.
3.Hydraulic system of outstanding performance.
4.Easy-wear parts with super-long service life.
Description |
Unit |
Parameter value |
Outline dimension |
mm |
12510×2500 ×3990 |
Overall weight |
kg |
33000 |
Model |
|
ZZ5347V484MC1 |
Manufacturer |
|
Sinotruk Group Jinan Truck Co. |
Max. speed |
km/h |
90 |
Max. grade-ability |
% |
40 |
Wheelbase |
mm |
4800+1400 |
Tire |
|
315/80R22.5 |
Model |
|
MC11.40-30 |
Max. power |
kW |
297 |
Max. torque |
N·m/(r/min) |
1900/1000~1400 |
Displacement |
L |
10.518 |
Emission standard |
|
Eruo III |
Theoretical output |
m³/h |
170 |
Concrete pumping pressure |
MPa |
8 |
Theoretical pumping times |
Time/min |
23~26 |
Delivery cylinder diameter ×stroke |
mm |
φ260×2000 |
Max. diameter of pumping concrete |
mm |
≤40 |
Filling height |
mm |
1580 |
Concrete slump range |
cm |
8~23 |
Reach height |
m |
47.5 |
Reach depth |
m |
34 |
Slewingradius |
m |
43.5 |
Slewing angle |
° |
±270 |
Unfolding angle of the 1st section |
° |
90 |
Unfolding angle of the 2nd section |
° |
180 |
Unfolding angle of the 3rd section |
° |
180 |
Unfolding angle of the 4th section |
° |
240 |
Unfolding angle of the 5th section |
° |
210 |
Unfolding angle of the 6th section |
° |
120 |
Longitudinal span of stabilizer |
mm |
8955 |
Transverse span of front stabilizer |
mm |
7884 |
Transverse span of rear stabilizer |
mm |
9940 |
Transfer tube |
|
Rock valve |
Lubrication method |
|
Automatic lubrication |
