Specs & Compare
Weight: 11000Kg
Dimension(L*W*H): 6400×2700×3100mm
Model Number: Xgnc1300
Brand Name: XCMG
Paving Width: 2000mm
Power(W): 88kW
Production Capacity: 10000 Units/Year
Certification: ISO9001: 2000, CE
Add models to compare
Description



XCMG official Concrete Curb Paver Machine Xgnc1300 price

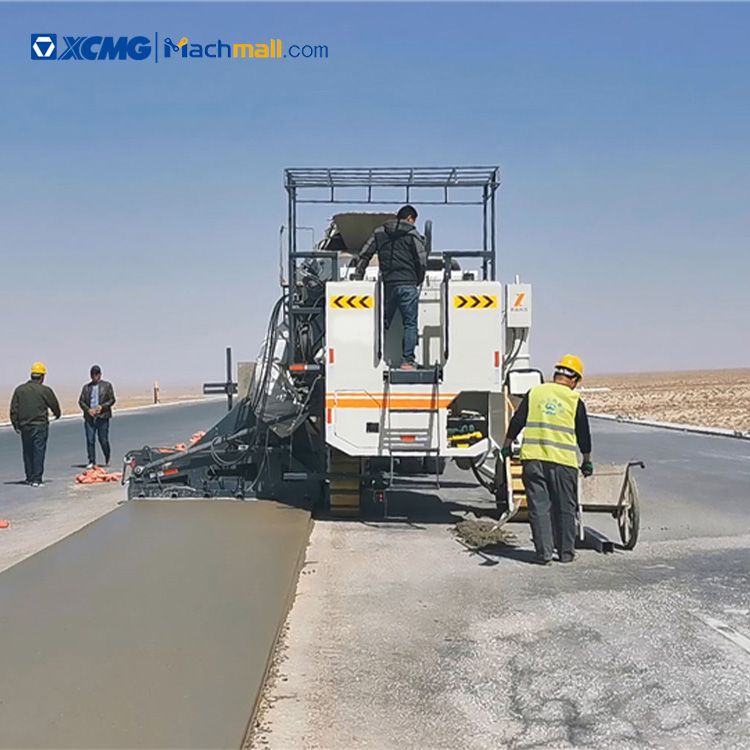

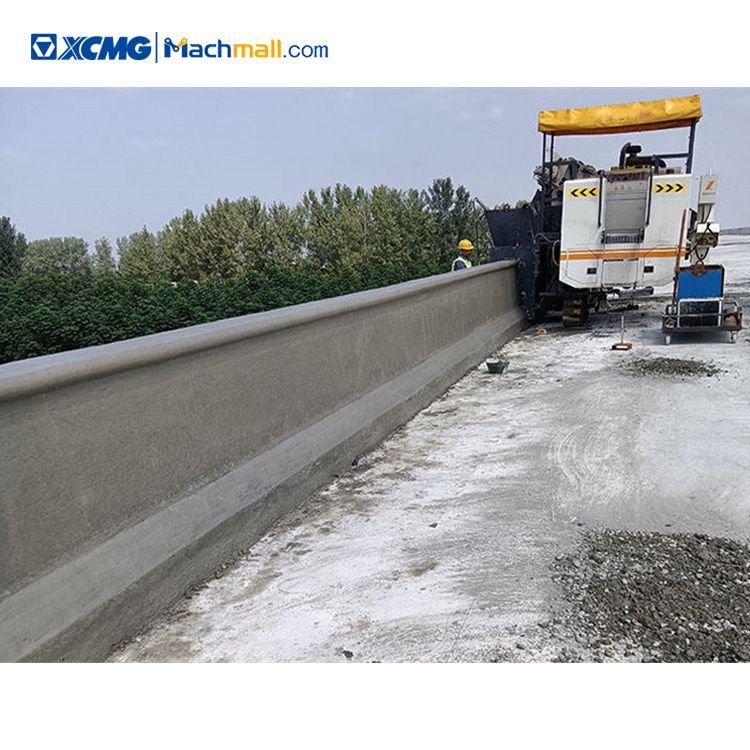

XGNC1300 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It has multiple functions and can realize various mold configurations. It is widely used in the construction fields of road drainage ditches, drainage ditches, kerbs, shoulder stones, concrete guardrail cement concrete structures and farmland water conservancy canals, replacing the traditional technology and significantly improving the construction quality and speed of cement concrete structures

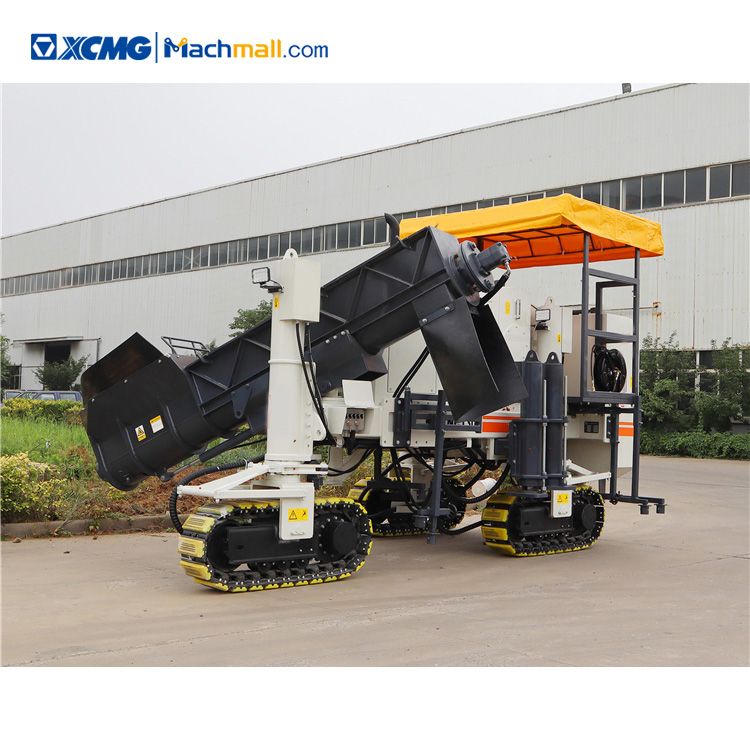

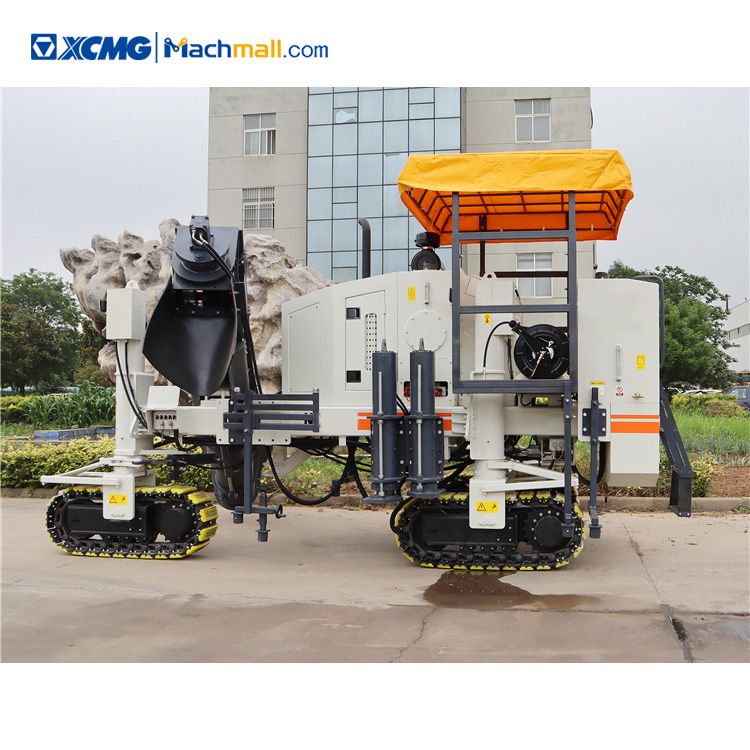

Three-track walking, independent hydraulic drive, proportional control of two-speed motor and planetary gear reducer; closed-loop control of paving speed and PID adjustment ensure the stability of low-speed paving and improve the quality of slipform paving; The front track steering device is equipped with a displacement sensor; which ensures accurate steering.

The engine power is strong, which meets the national phase IV emission standard; The hydraulic system adopts load-sensitive variable control, and supplies oil according to the actual load size and speed, with low oil consumption, energy saving and environmental protection.

The humanized design of the operation console, the man-machine interactive control screen and clear graphical identification symbols make the paver easy to operate. It is equipped with Internet of Things platform, construction management and monitoring system and optional remote control device.

The structure of the whole machine is compact, which can meet the needs of container transportation.

ItemXGNC1300
Maximum side paving height1300mm
Maximum paving width2000mm
Paving speed0~15m/min
Travel speed0~35m/min
Engine modelYC4DK120-T301 (Yuchai)
Rated power/speed88kW/2400r/min
Diesel tank capacity320L
Track width300mm
Track length1600mm
Climbing capacity≥ 25%
Minimum turning radius4240mm
Outrigger hydraulic lifting stroke900mm
Outrigger mechanical adjustment stroke280mm
Twister speed0~80r/min
Hydraulic vibrator interface6
Vibrating rod frequency0~200Hz
 water tank capacity320L
Hydraulic horizontal stroke of mold fixture770mm
Hydraulic vertical stroke of mold fixture (double oil cylinder)410mm
Mechanical vertical stroke of mold fixture240mm
Transport dimension (long × wide × High)6400×2700×3100mm
Operating Weight11000Kg
